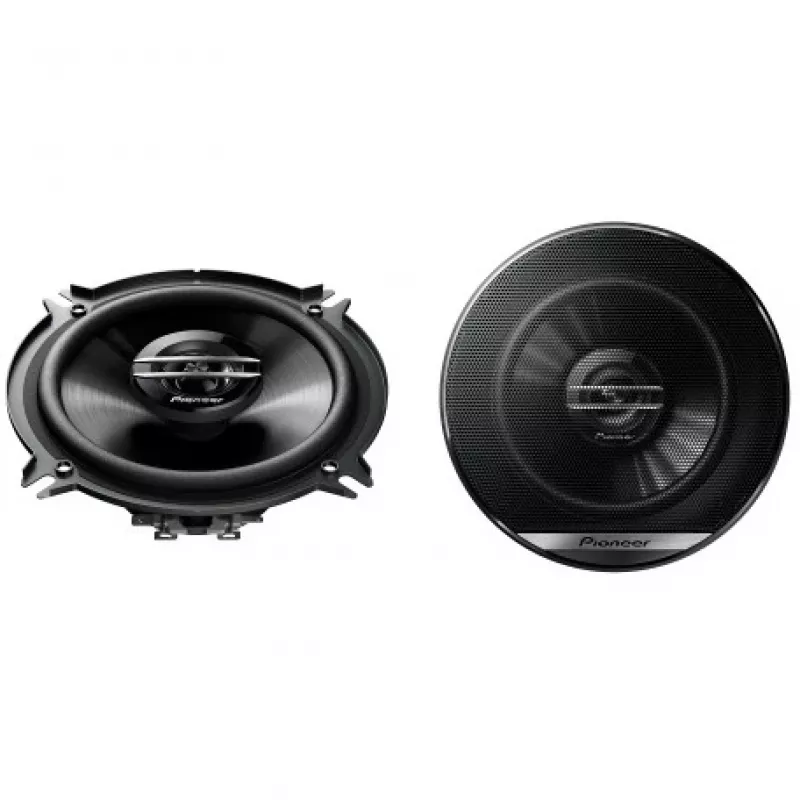

Autokaiutin Pioneer TS-G1320F pyöreä 2-tie 250 W

The Pioneer TS-G1320F is a compact round 2-way car speaker from PIONEER's improved G-series, designed to deliver premium and powerful audio in a small form factor. With a peak power of 250 W and a rated power of 35 W, the speaker combines increased power handling and high sensitivity to reproduce deep bass and natural highs even at elevated volumes. Its rigid construction and multi-bolt mounting pattern allow straightforward installation in many vehicle locations, while a mounting depth of 4.43 cm and a 3 cm mid-range driver make it suitable for tight spaces.

Advantages

The TS-G1320F offers a balance of compact dimensions and robust sound performance, featuring a durable design optimized for easy installation and reliable operation. Its higher sensitivity and power handling enable clear, impactful low frequencies and articulate high-frequency response, providing improved audio clarity without requiring excessive amplifier power. Lightweight construction (approximately 400 g) simplifies handling during installation.

Suitable for

• Replacing factory car speakers in compact doors or panels
• Upgrading mid-range and treble response in standard car audio systems
• Installations with limited mounting depth

Key specifications

• Type: Round 2-way car speaker
• Peak power: 250 W
• Rated power (RMS): 35 W
• Mid-range driver diameter: 3 cm
• Mounting depth: 4.43 cm
• Weight: approx. 400 g
• Brand: PIONEER, Model: TS-G1320F, EAN: 884938373425

How to use

Prepare the vehicle's speaker opening and confirm compatibility with the speaker's multi-bolt mounting pattern and 4.43 cm mounting depth. Disconnect the car battery before beginning electrical work. Remove the existing speaker and wiring, connect the TS-G1320F to the vehicle harness observing correct polarity, and secure the speaker using the appropriate screws through the multi-bolt pattern. After installation, restore the battery connection and perform a sound check at low volume, gradually increasing to verify correct operation and to avoid sudden overload.

Recommendations

For best results, use the TS-G1320F as a direct replacement for factory speakers in locations with limited depth, and avoid driving the speaker continuously at maximum volume to prevent reduced lifespan. If higher output is required, consider pairing with an appropriate amplifier and matching crossovers to protect the speaker and improve overall sound balance.
