AV-vastaanotin Digitus DS-55315 langaton HDMI-jakaja ja -jatko Set 80m

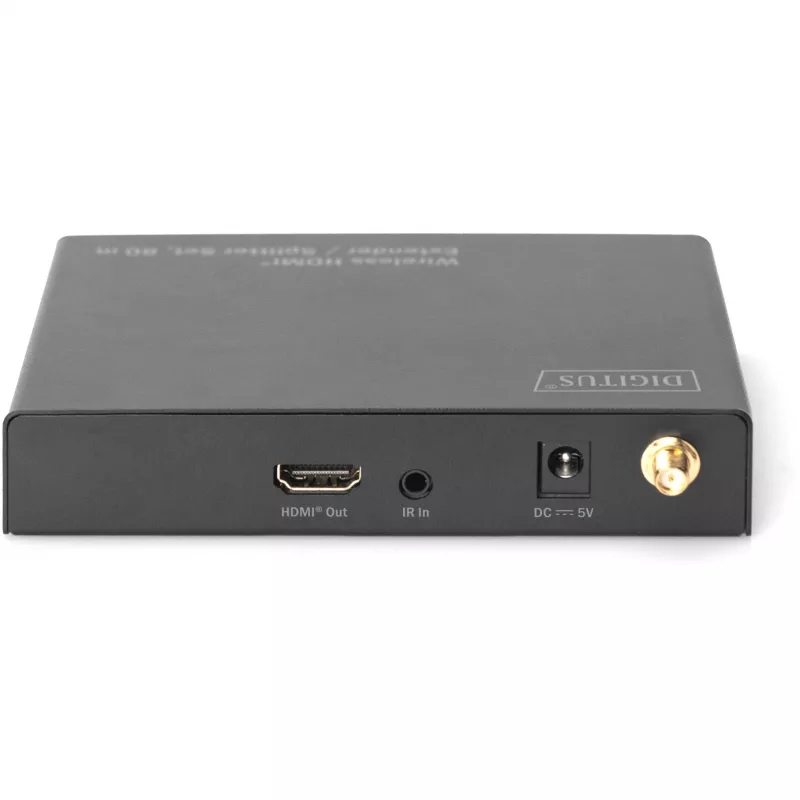

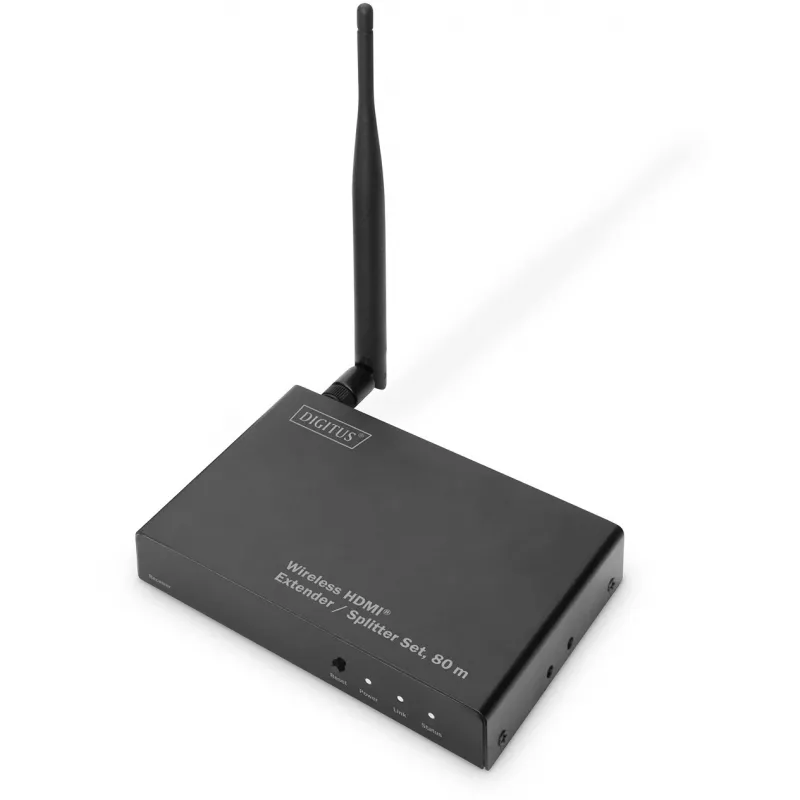

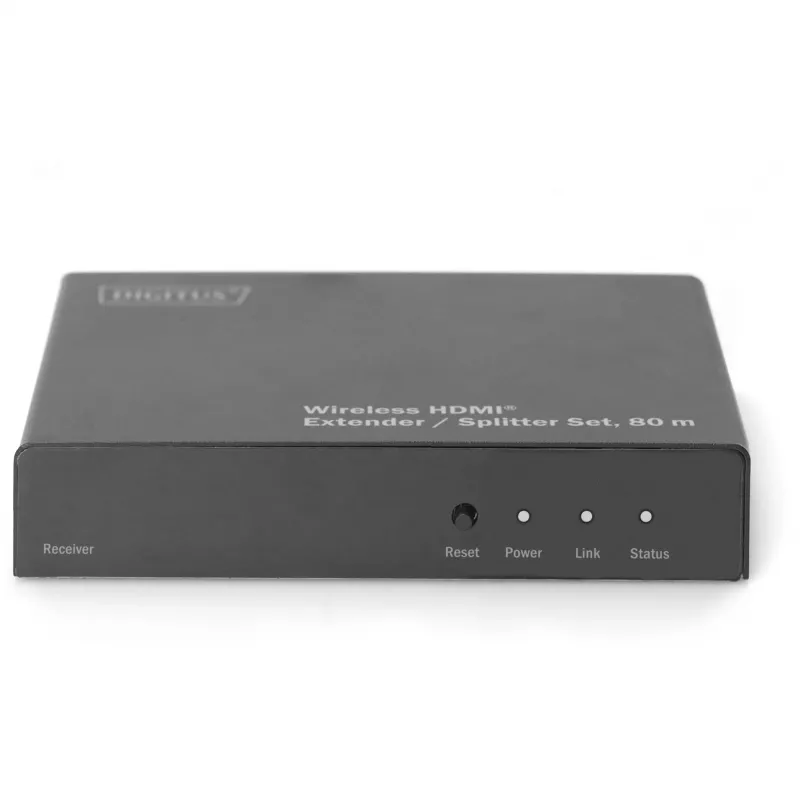

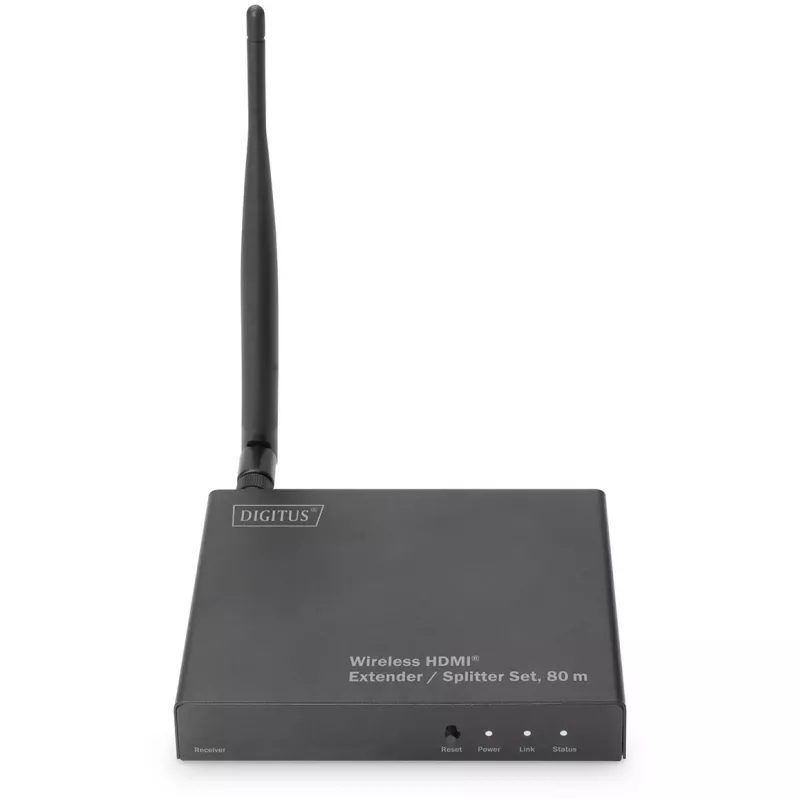

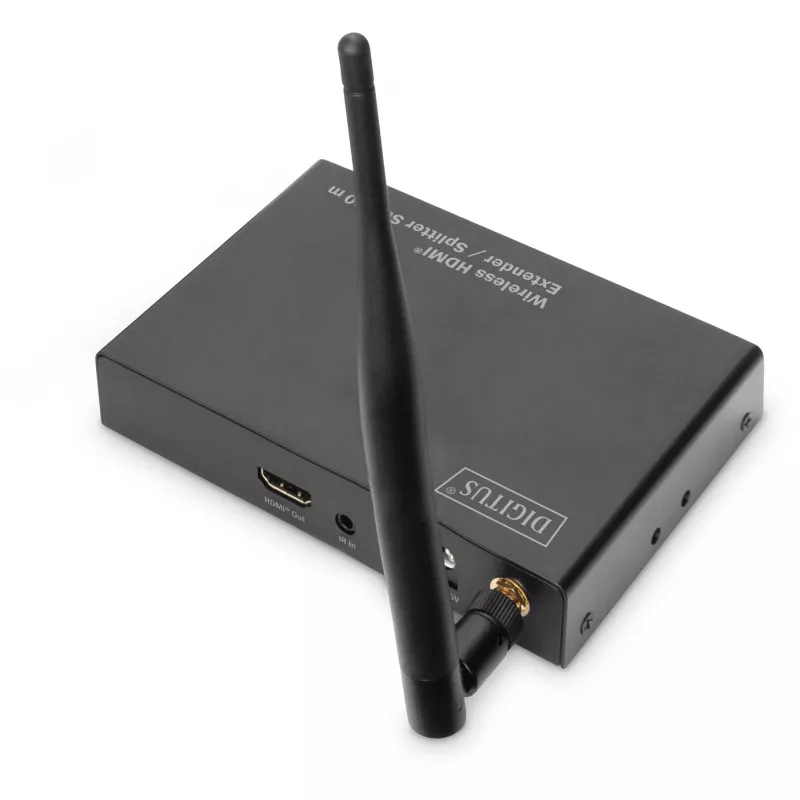

The Digitus DS-55315 is an additional wireless HDMI receiver designed to extend the Wireless HDMI® Extender Set (DS-55314) into a multicast system with up to four receivers. It receives high-resolution HDMI video and audio signals wirelessly at distances up to 80 m (line of sight, 1:1) and supports a maximum output resolution of 1920 x 1080 at 60 Hz. The compact black receiver requires 5 V/2 A power and is intended to distribute one HDMI output to an additional display without running HDMI cables.

Advantages

The DS-55315 supports point-to-multipoint (multicast) operation allowing the source signal to be sent to up to four receiver units. Setup is plug-and-play — no software or drivers are required. The unit includes an IR input cable to forward remote-control commands back to the source device. Its compact size and low power consumption (max. 3 W) make it easy to add another HDMI endpoint for TVs, monitors or projectors.

Suitable for

• Extending a satellite receiver or set-top box signal to another TV or projector
• Adding an additional display in meeting rooms or classrooms without extra cabling
• Building a multicast wireless HDMI system with up to four receivers
• Temporary AV setups for events, presentations or retail displays

Key specifications

• Model: DIGITUS DS-55315
• Type: AV receiver (additional receiver for DS-55314 multicast system)
• Maximum resolution: 1920 x 1080 (Full HD) at 60 Hz
• Maximum transfer distance: up to 80 m (line of sight)
• Number of HDMI outputs: 1
• Power supply: 5 V, max. 2 A; power consumption up to 3 W
• Dimensions: 100 x 130 x 26 mm
• Weight: 0.145 kg
• Colour: Black
• Plug-and-play, IR input for remote forwarding

How to use

Connect the DS-55315 to a power source using the supplied power adapter, attach the HDMI cable from the receiver to your TV, monitor or projector HDMI input, and pair it with the existing DS-55314 transmitter/multicast system. If you need to control the source device from the receiver location, connect the included IR cable to the receiver’s IR input and position the IR emitter at the source device’s IR sensor. After powering on, the receiver should automatically synchronise with the transmitter so you can start playback without driver installation.

Recommendations

For best performance, maintain a clear line of sight between transmitter and receiver and avoid large obstructions or dense walls. Place receivers within the specified maximum range of 80 m and ensure the IR emitter is aligned with the source device for reliable remote control forwarding.
