Axagon ADS-1PQN USB-A 2.0 - sarja RS-232 DB9-M FTDI-sovitinkaapeli

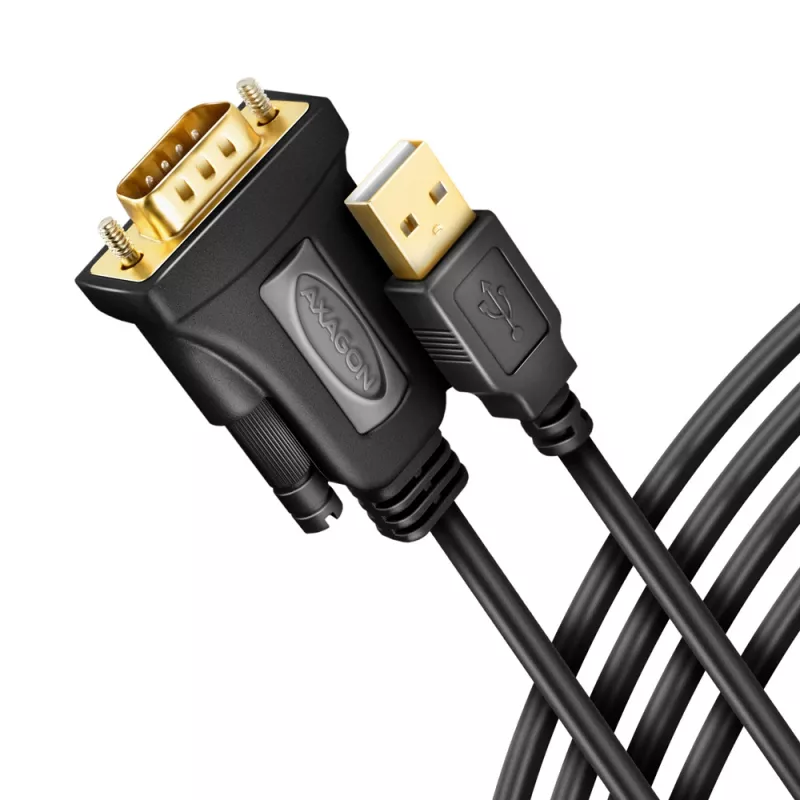

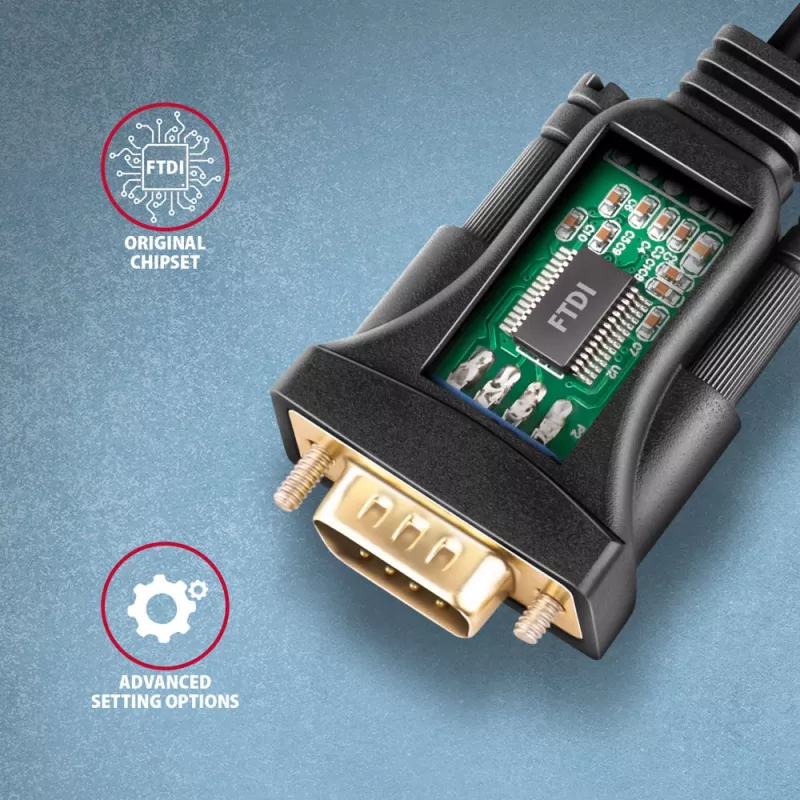

The AXAGON ADS-1PQN is an active USB-A 2.0 to RS-232 serial adapter with a permanently attached 1.5 m cable and integrated DB9 male connector. It uses the original FTDI FT232RL chip and a TI serial line driver to provide wide compatibility and stable data transfer for connecting computers to RS-232 devices. The adapter is bus-powered via USB and features gold-plated connectors, double shielding and a durable housing suitable for both office and industrial environments.

Advantages

The adapter provides high compatibility thanks to the original FTDI chip and supports Plug and Play installation on Windows, macOS, Linux and many Android versions. Gold-plated contacts reduce oxidation and improve reliability while double shielding and a robust body increase resistance to interference and mechanical stress. A fixed 1.5 m USB-A cable simplifies connection to desktop PCs and laptops without needing an additional cable.

Suitable for

• Connecting barcode readers and receipt printers
• Configuring or upgrading set-top boxes and security devices
• Interfacing CNC machines, modems and industrial controllers
• Connecting scanners, microcontroller programmers and transmitters
• Use in desktop and laptop environments where an RS-232 DB9 port is required

Key specifications

• Input: USB 2.0 (480 Mbps), backward compatible with USB 1.1; fixed USB Type-A male cable, length 1.5 m

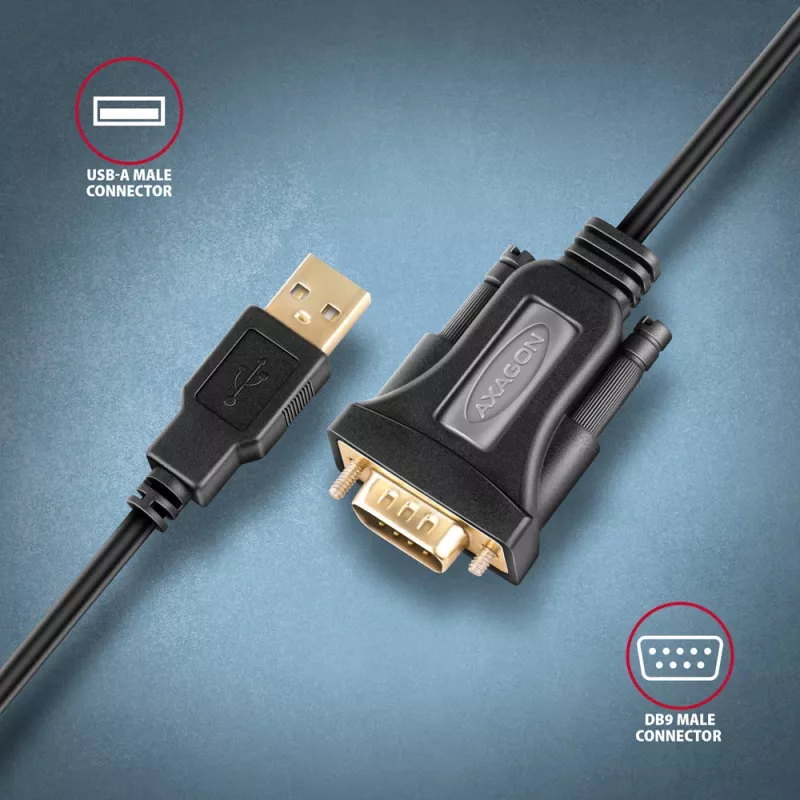

• Output: 1× RS-232 serial port with DB9 male connector integrated in adapter body
• Baud rate: adjustable 300 bit/s – 250 kbit/s
• Compatibility: FTDI FT232RL chip; compatible with 16C950 UART and backward with 16C550/16C650/16C750/16C850
• FIFO: send 256 B, receive 128 B; adjustable FIFO receive/send 64–4096 B
• Flow control: Xon/Xoff, hardware or none; word length 7/8 bits; parity: even/odd/none/mark/space; stop bits: 1 or 2
• Adjustable latency 1–255 ms; adjustable interrupt/read/write 0–10000 ms; adjustable idle pause 1–3600 s
• Optional functions: Serial Enumerator, Serial Printer, Cancel If Power Off, Event On Surprise Removal, Set RTS On Close, Disable Modem Ctrl At Startup, Enable Selective Suspend
• COM port assignment: COM1–COM256; bus-powered (no external power required)

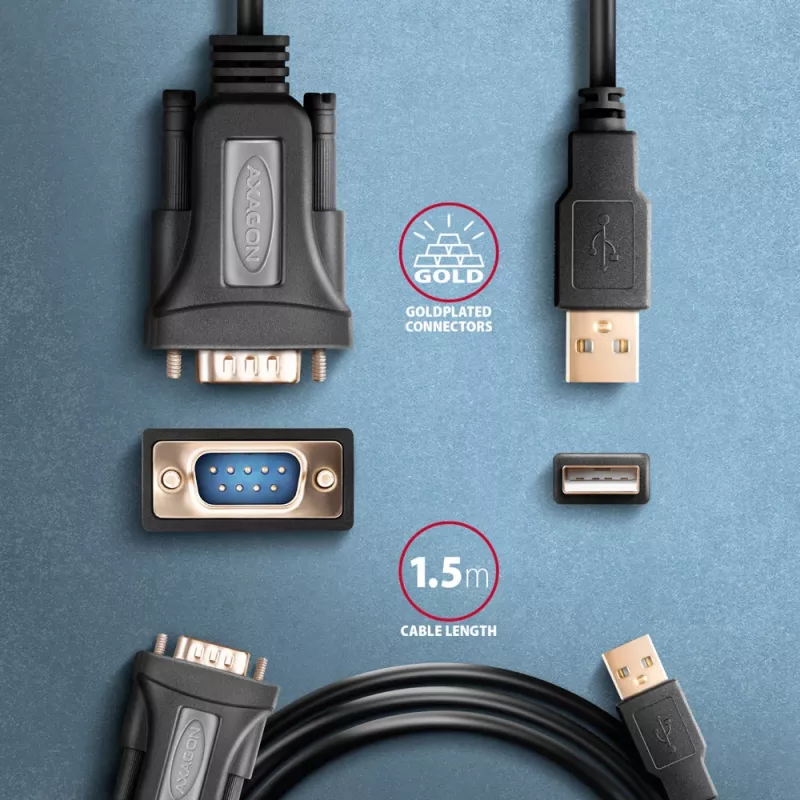

• Materials & dimensions: gold-plated connectors, cable Ø 5 mm double-shielded; adapter body 35×56×17 mm; cable length 1.5 m; weight 83 g
• Supported OS: Windows XP and later (including Server editions), macOS X 10.4.x and later, Linux kernel 2.6.x and later, most Android versions

How to use

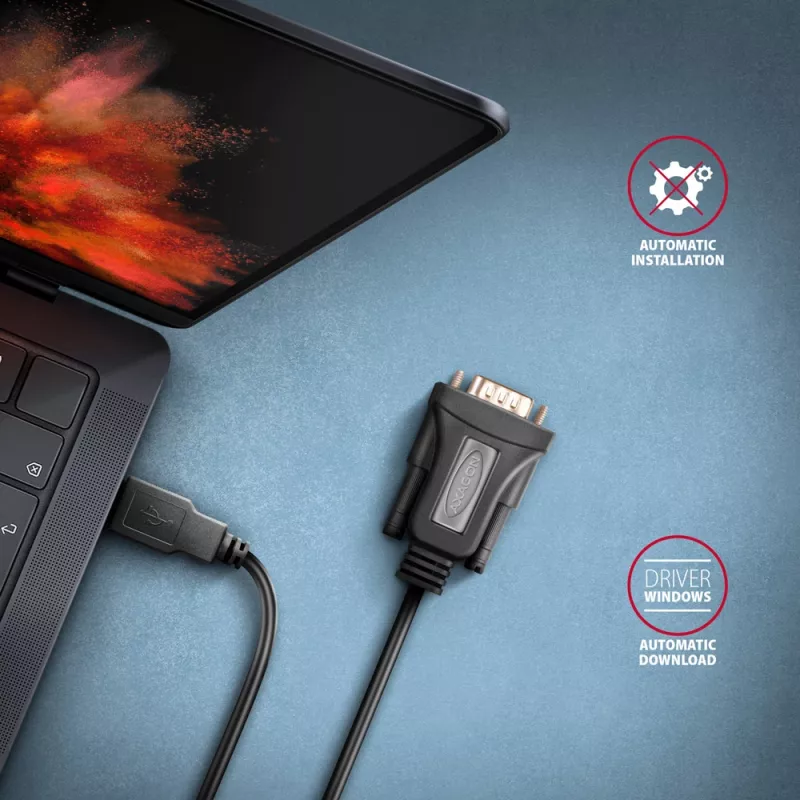

Connect the fixed USB-A plug to a computer USB port and attach the integrated DB9 male connector to the RS-232 device. The adapter is bus-powered and does not require an external power supply. On supported operating systems drivers are installed automatically; if necessary, install drivers provided by the OS or from the FTDI vendor. Configure COM port settings (baud rate, parity, flow control, stop bits) in your terminal software or device configuration tool to match the connected device.

Recommendations

For reliable operation, use a direct USB port on the computer rather than an unpowered USB hub. Match serial settings exactly to the connected device and keep the cable away from strong electromagnetic sources to reduce interference. If automatic driver installation fails, download the FTDI drivers from the official FTDI website or use the OS-supplied driver.
