Axagon RVD-HI14N DisplayPort -> HDMI 1.4 -adapteri 4K/30Hz

DisplayPort -> HDMI active adapter AXAGON RVD-HI14N to connect HDMI monitor/TV/projector to the computer with the DisplayPort output.

The smart hardware converter without the need for any installation or setup ensures high-quality transfer of image and sound with a resolution up to 4K/30Hz.

Video and audio transfer from a computer or laptop will now be easy. Compact dimensions ensures easy use even in insufficient space. This is a convenient solution if you already own an HDMI cable - you only add a reducer.

The adapter is only one-way, i.e. DisplayPort to HDMI, not otherwise.

Input:
• DisplayPort v1.2
• DP male connector with latch (M)
• connector latch control button

Output:
• HDMI v1.4b
• HDMI A (F) female connector

Supported resolutions:
Resolution and frequency depend on monitor, graphics adapter and also cable.
• max. 4096 x 2160 (19:10) @30Hz DCI 4K
• 3840 x 2160 (16:9) @30Hz UHD-1 4K (UHDTV)
• 3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
• 3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
• 3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
• 3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
• 2560 x 2048 (5:4) QSXGA
• 2560 x 1920 (4:3)
• 2560 x 1600 (16:10) WQXGA
• 2560 x 1440 (16:9) @60Hz WQHD
• 2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
• 2048 x 1536 (4:3) QXGA
• 2048 x 1152 (16:9) QWXGA
• 1920 x 1440 (4:3)
• 1920 x 1200 (16:10) WUXGA
• 1920 x 1080 (16:9) @60, 75, 100 a 120Hz Full HD/1080p
• 1856 x 1392 (4:3)
• 1792 x 1344 (4:3)
• 1680 x 1050 (16:10) WSXGA+
• 1600 x 1200 (4:3) UXGA
• 1600 x 900 (16:9) HD+
• 1536 x 864 (16:9)
• 1440 x 900 (16:10) WXGA+
• 1400 x 1050 (4:3) SXGA+
• 1366 x 768 (16:9) HD
• 1360 x 768 (16:9) HD
• 1280 x 1024 (5:4) SXGA
• 1280 x 960 (4:3) SXGA-
• 1280 x 800 (16:10) WXGA
• 1280 x 768 (5:3) WXGA
• 1280 x 720 (16:9) HD/WXGA/720p
• 1280 x 600
• 1152 x 864 (4:3) XGA+
• 1024 x 768 (4:3) XGA
• 800 x 600 (4:3) SVGA

Other features:
• sound transfer support
• DDC (Display Data Channel) support - Intelligent setting of resolution, frequency and other parameters according to the source graphics chip
• supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area
• HPD (Hot-Plug-Detect) support - communication sequence controlling the connection/disconnection of the device while running
• HDCP 1.4 and 2.2
• support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV)
• power supply via bus - no external power is needed
• gold-plated connectors for perfect contact and oxidation limitation
• adapter dimensions 45 x 21 x 12 mm
• total cable length incl. connector 18 cm
• weight only 24 g

Supported operating systems:
• All versions of MS Windows, Mac OS X, Linux and other operating systems.
• It is a pure hardware converter, the transfer is provided only by the adapter chip without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.

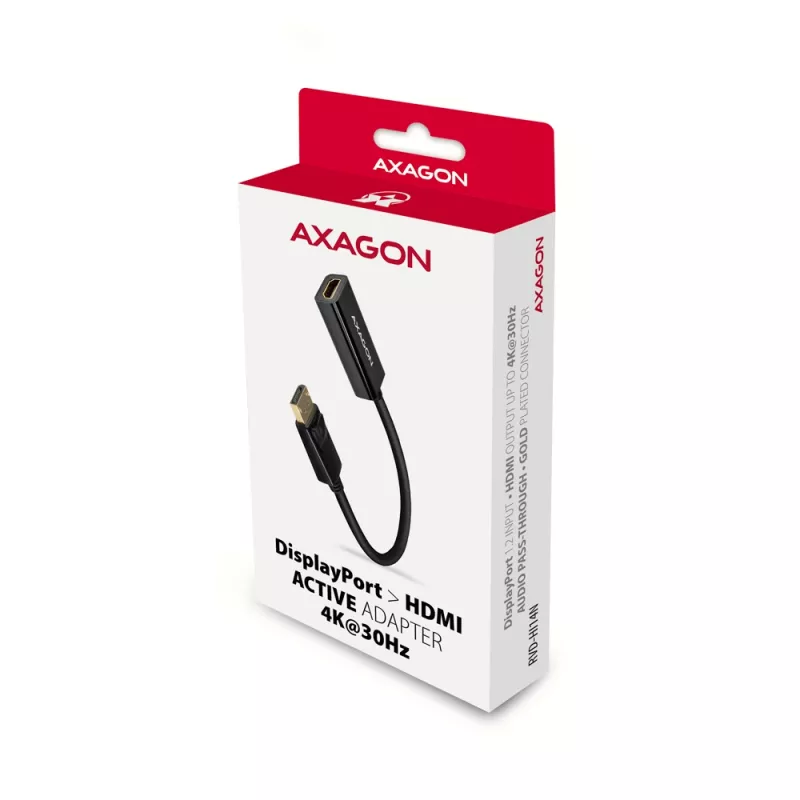

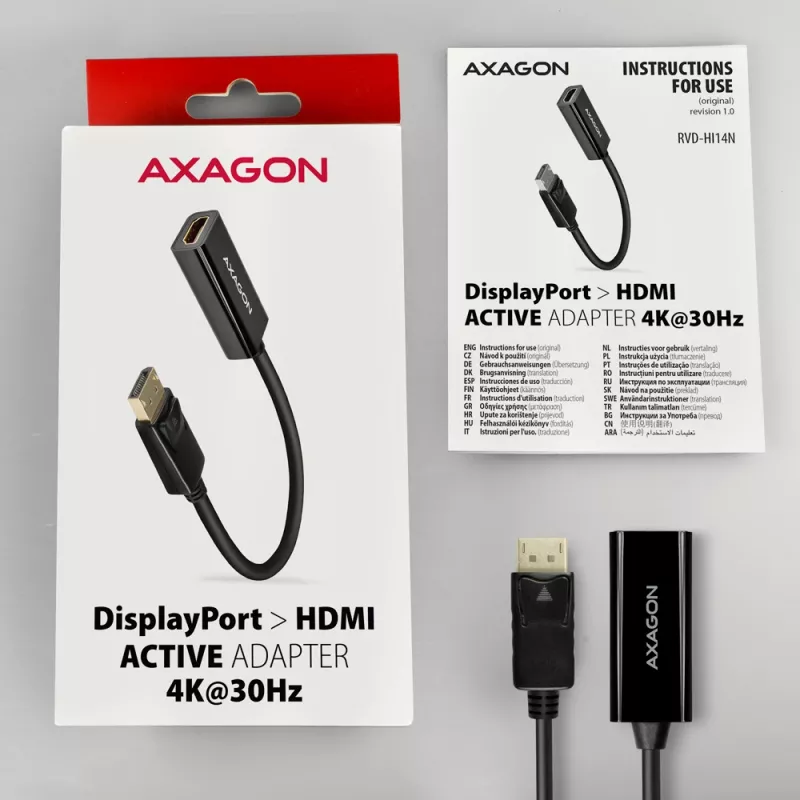

Package contains:
• DisplayPort > HDMI adapter,
• printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box.

How to use

Insert the DP male connector into the DisplayPort output of your computer or laptop until the latch engages. Connect an HDMI cable between the adapter’s HDMI female connector and the HDMI input of the monitor, TV or projector. The converter will negotiate resolution and audio automatically via DDC; no driver installation is necessary. If you need to disconnect, use the latch control button to release the connector.

Recommendations

For reliable 4K@30Hz or high-resolution results, use high-quality HDMI cables and ensure your graphics adapter and display support the selected resolution and refresh rate. The adapter is one-way (DisplayPort to HDMI) and will not convert HDMI to DisplayPort.
