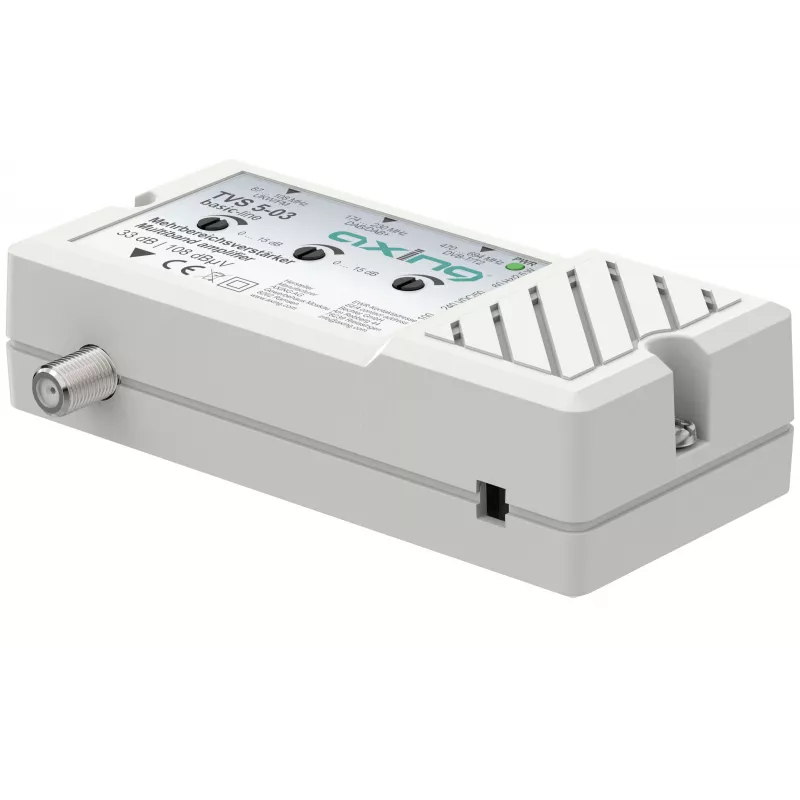

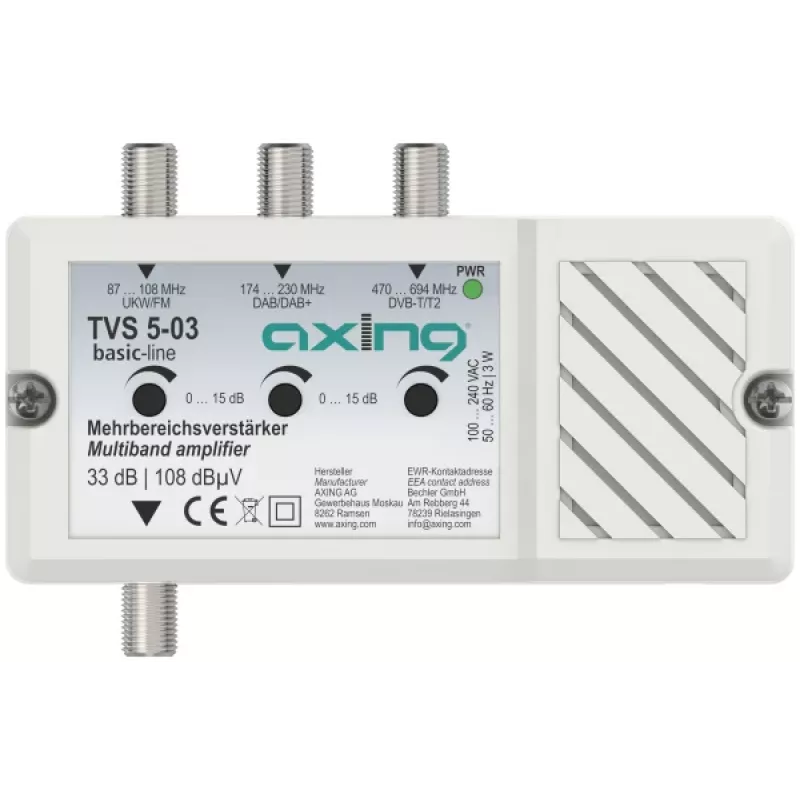

AXING TVS 5-03 monikaistavahvistin 33 dB, 3 tuloa FM/DAB/DAB+/DVB-T2

In a residential distribution setup where terrestrial TV and radio signals need a clean boost before being split to multiple rooms, the AXING TVS 5-03 steps in. This indoor multi-band amplifier takes three inputs—one for FM/DAB/DAB+ and two for DVB-T/T2—and delivers a single amplified output with up to 33 dB gain on UHF, ensuring reliable reception across the band.

Key specifications

• Multi-band amplifier with 3 inputs and 1 output
• Input 1: FM/DAB/DAB+ 47–254 MHz; Inputs 2/3: DVB-T/T2 470–694 MHz
• Gain: 28 dB (VHF) / 33 dB (UHF), ±2 dB
• Max output level: 105 dBµV (DIN 45004B)
• Noise figure: < 5 dB
• Integrated LTE filter up to 694 MHz

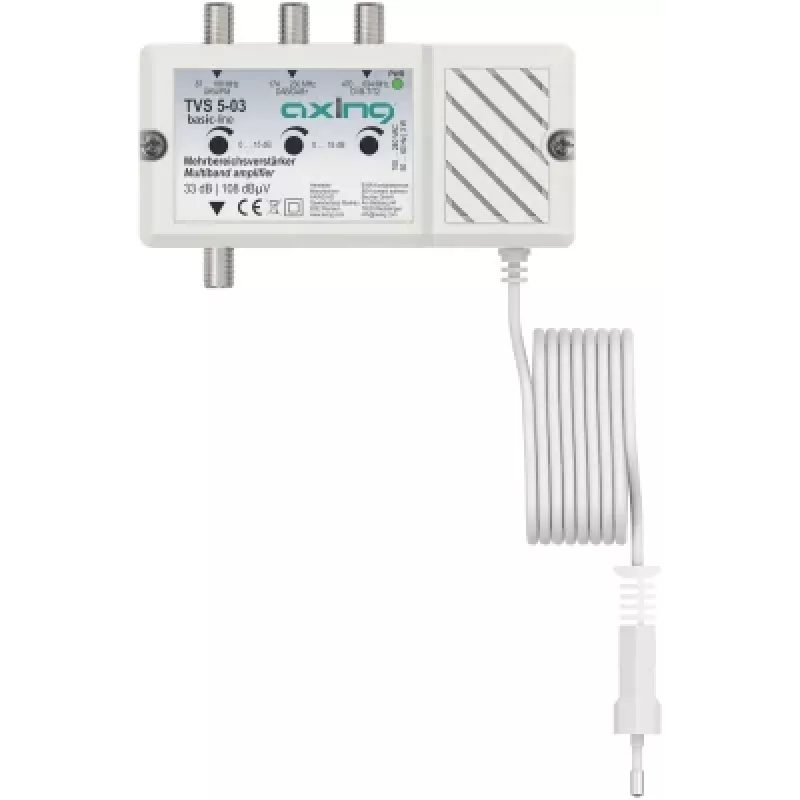

• Power supply: 230 V AC, 50 Hz (integrated), 3.5 W consumption
• F-type connectors, 75 Ohm impedance, Class A shielding
• Indoor use

Why choose it

The TVS 5-03 combines three separate signal paths in one compact unit, saving space and simplifying cabling. Its integrated LTE filter prevents interference from mobile signals below 694 MHz, and the low noise figure keeps the signal clean even in weak reception areas.

Ideal use cases

• Boosting terrestrial TV and radio signals in homes or small MDUs
• Combining FM/DAB and DVB-T2 antennas into a single downlead
• Compensating for long cable runs or passive splitter losses

Good to know

The amplifier is designed for indoor installation and requires a 230 V mains outlet. All RF connections use standard F-type connectors, compatible with common coaxial cabling.
