Axis 01164-001 kiinnike

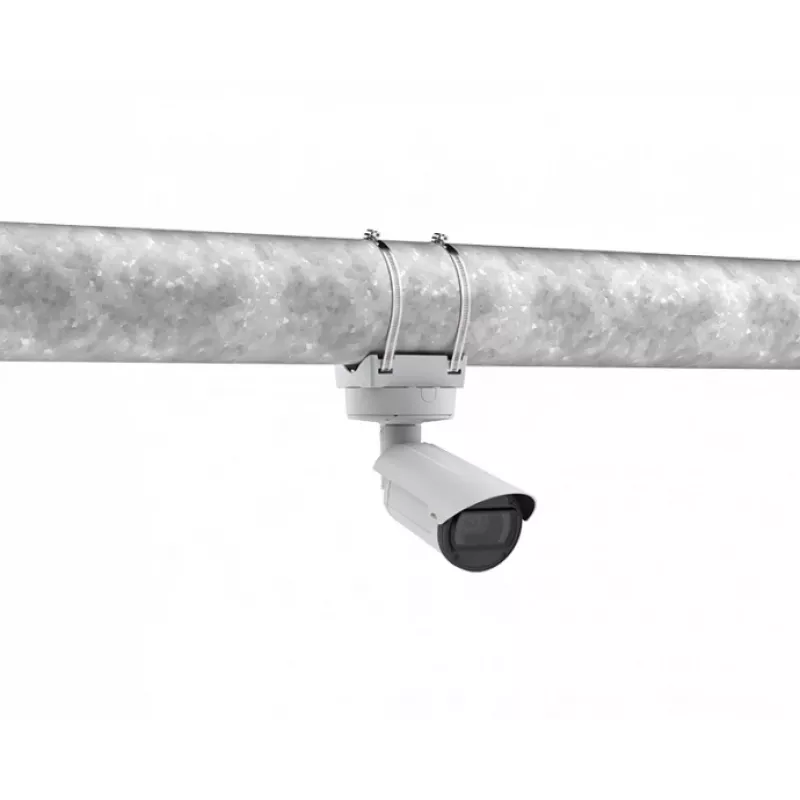

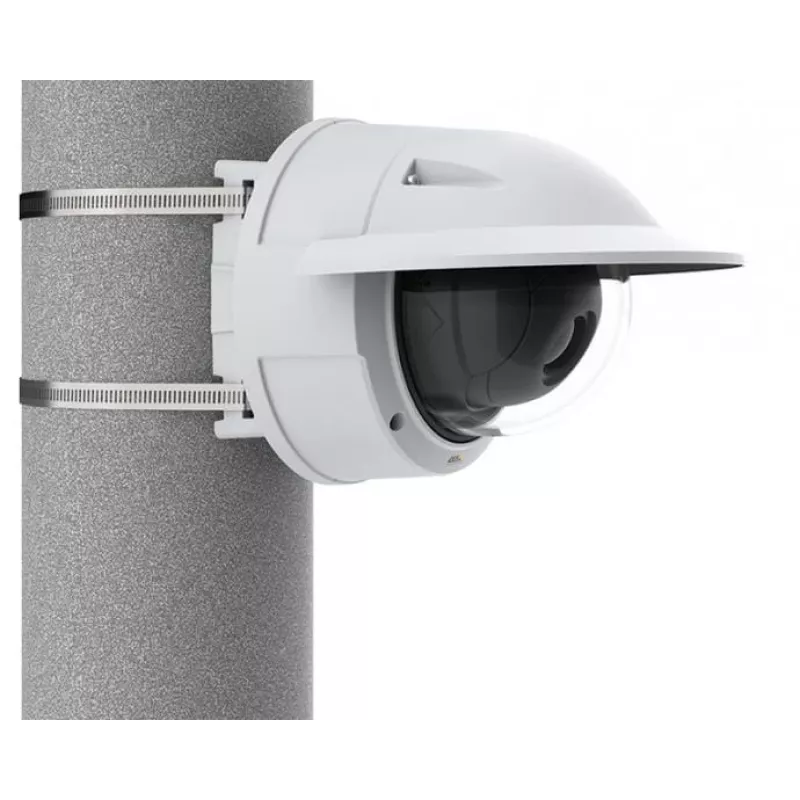

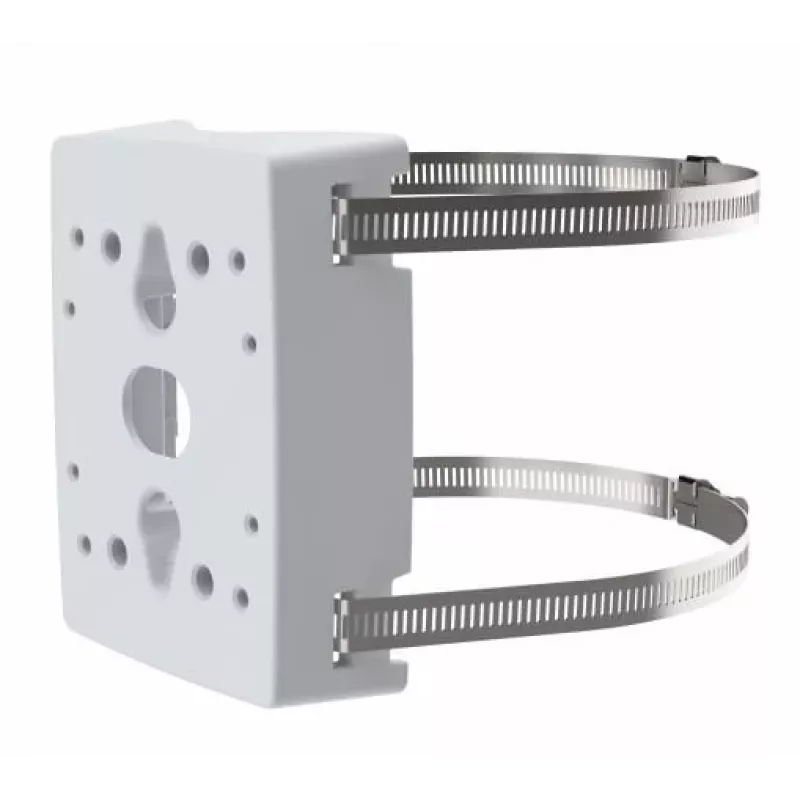

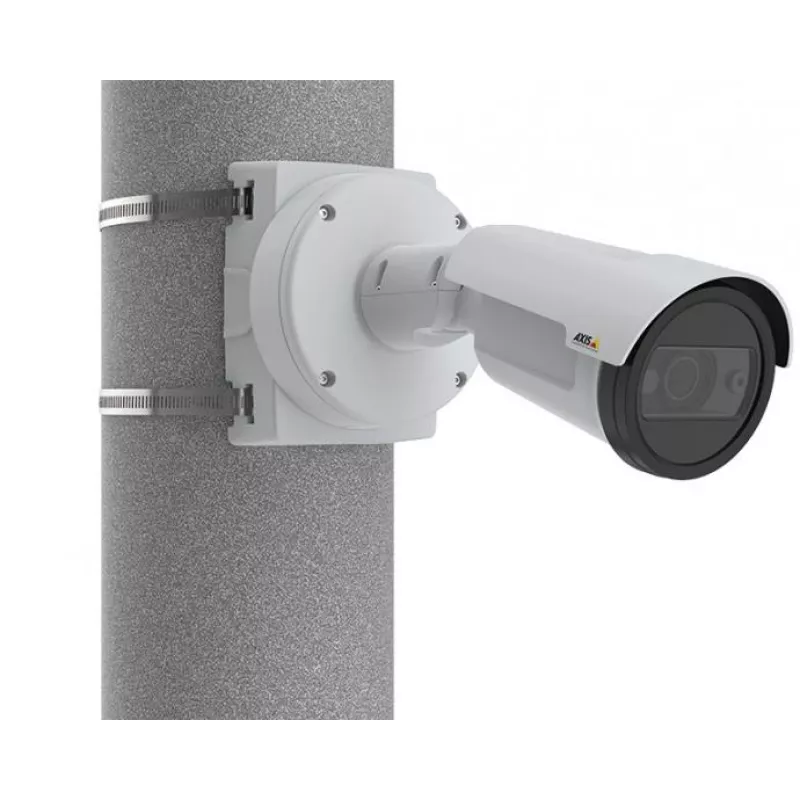

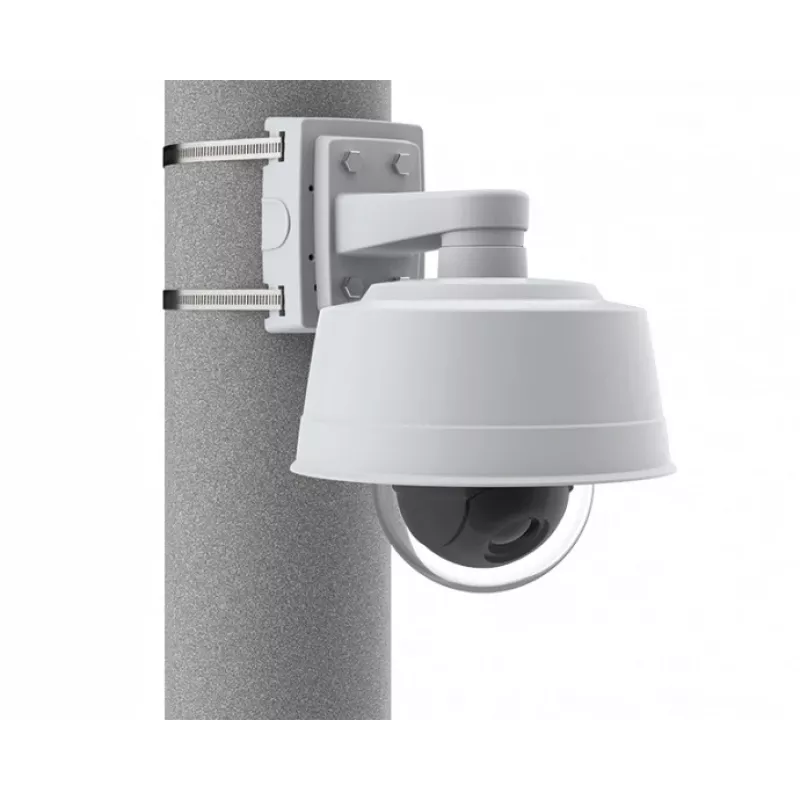

AXIS T91B47 Pole Mount is designed for both indoor and outdoor use and provides a simple, corrosion-resistant attachment for Axis fixed dome and fixed bullet cameras. It is offered in two versions with different lengths of marine-grade (SS316L) stainless steel straps to fit a range of pole diameters, and it can also be used to mount cameras to beams. When used with Axis fixed dome or fixed bullet cameras, no additional pendant kits are required.

Advantages

The mount uses marine-grade SS316L stainless steel straps for improved corrosion resistance and durability in outdoor environments. Two strap-length versions accommodate poles of different diameters, enabling flexible installation options. Compatibility with Axis fixed dome and fixed bullet cameras eliminates the need for extra pendant accessories, simplifying installation and reducing total cost.

Key specifications

• Material: marine-grade stainless steel (SS316L) straps
• Version 1 pole diameter compatibility: 50–150 mm (2–6 in)
• Version 2 pole diameter compatibility: 100–410 mm (4–16 in)
• Suitable for indoor and outdoor installation
• Also usable for mounting to beams
• Compatible with Axis fixed dome and fixed bullet cameras without additional pendant kits

How to use

Choose the T91B47 version with the appropriate strap length for the pole diameter. Wrap the marine-grade stainless steel straps around the pole or beam and secure them according to the mount's fastening instructions. Attach the Axis fixed dome or fixed bullet camera to the mount and verify that the camera is properly aligned and tightened. For outdoor installations, confirm that the straps and mount are seated correctly to maintain stability and corrosion resistance.

Recommendations

For best performance in corrosive or marine environments, select the SS316L strap version that fits the pole diameter and periodically inspect the straps and mount for wear. Ensure compatibility with your specific Axis fixed dome or fixed bullet camera model before installation.
