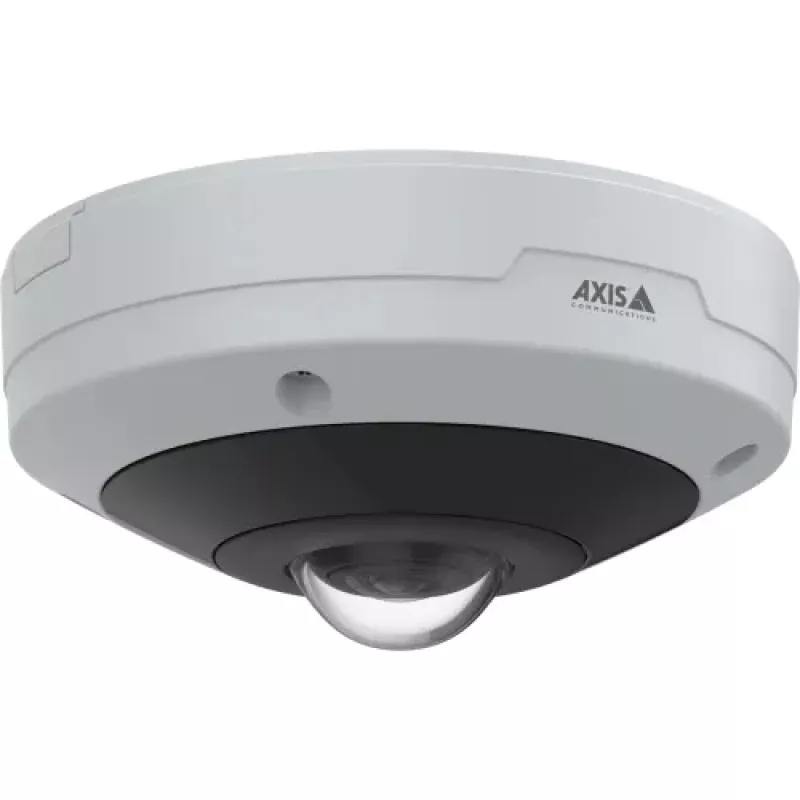

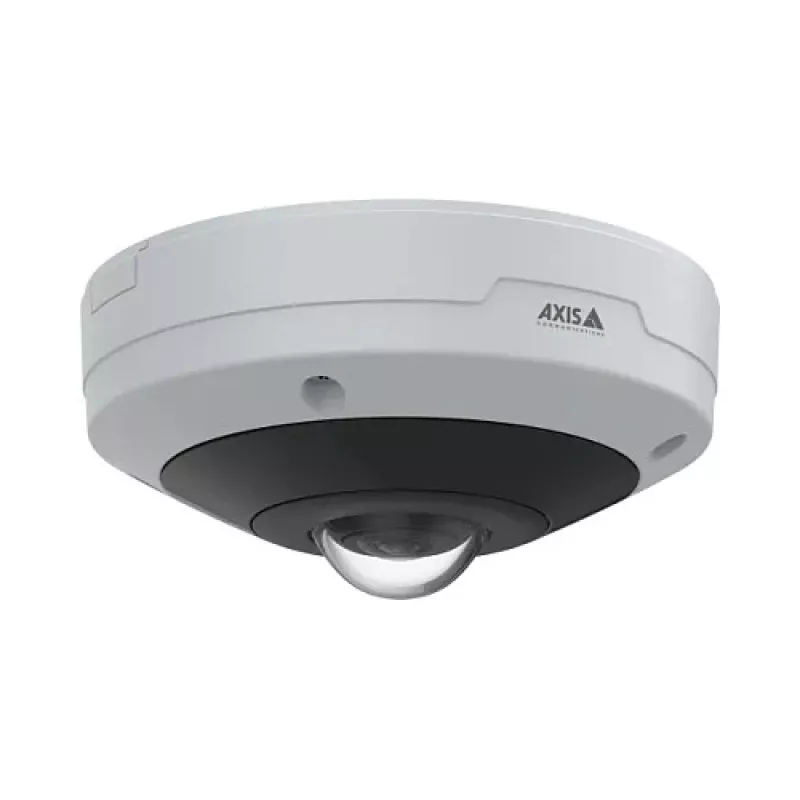

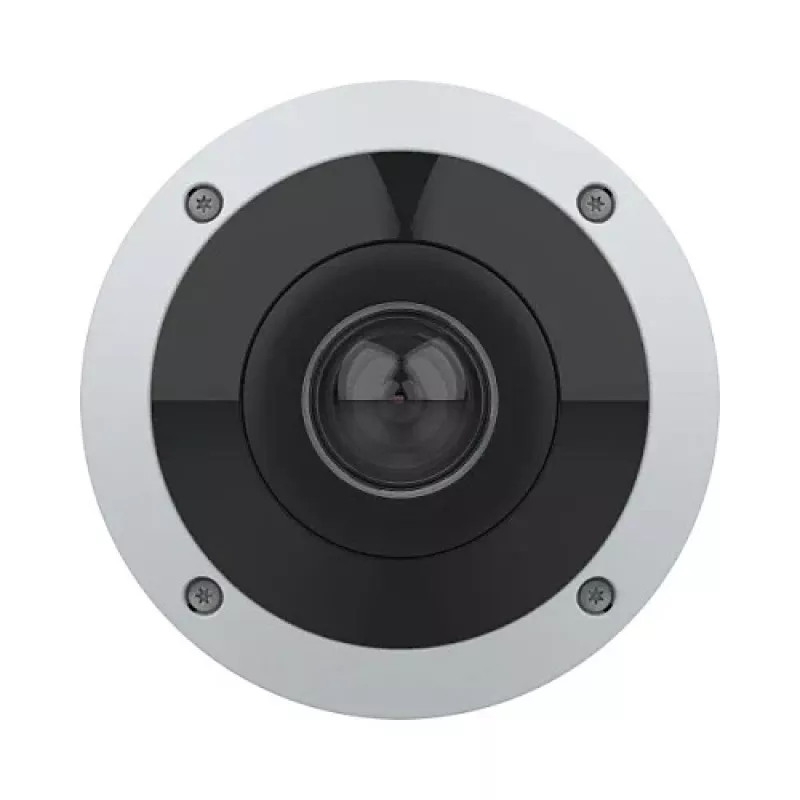

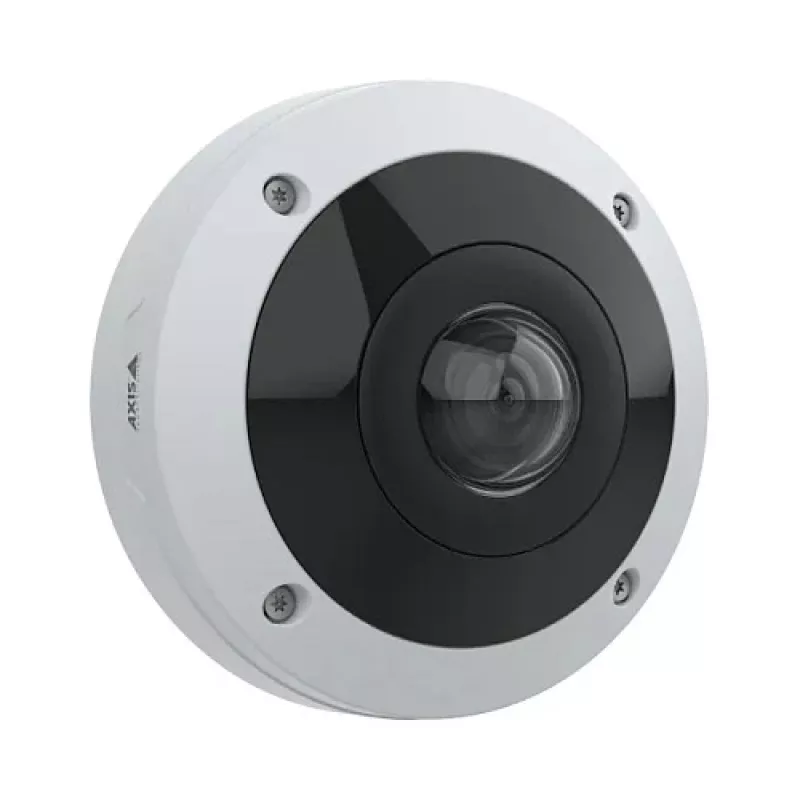

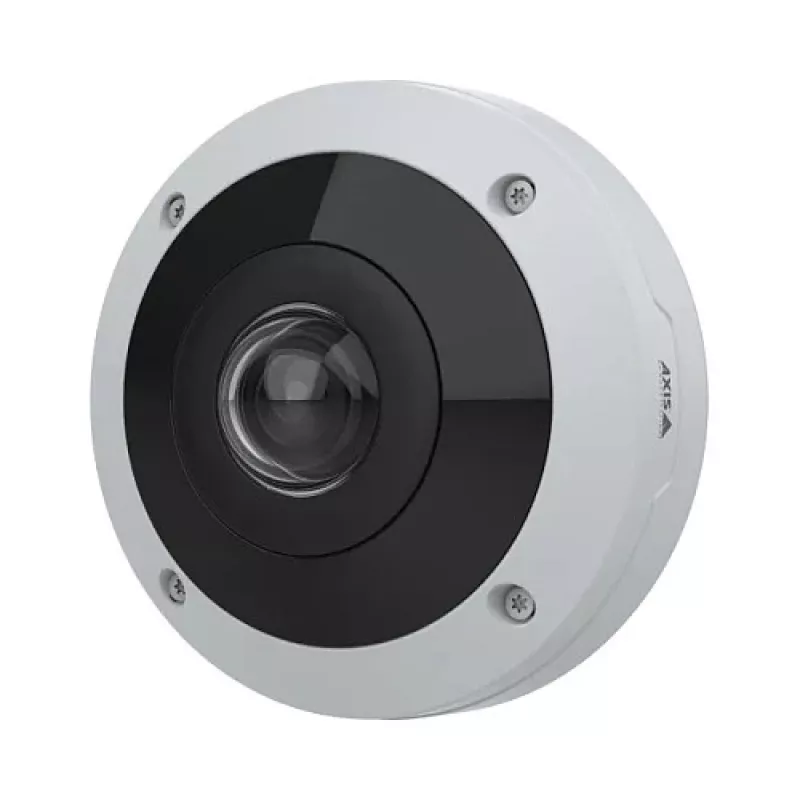

AXIS M4338-PLVE Panoramic Mini Fix Dome -verkkokamera 180/360° kattavuus

The AXIS M4338-PLVE is a high-performance panoramic mini fix dome network camera designed for 180° or 360° coverage. Ideal for monitoring large open areas such as retail stores, warehouses, and offices, this fisheye camera delivers exceptional situational awareness with a single device. With 12 MP resolution, Forensic WDR, and OptimizedIR up to 20 m, it ensures clear images day and night. The camera is IP66/IP67 and IK10 rated, making it suitable for indoor and outdoor use in harsh environments.

Advantages

• 360° overview and 180° dewarped views for comprehensive monitoring
• 12 MP sensor with H.265 compression for efficient bandwidth usage
• Forensic WDR for clear images in challenging lighting
• Built-in microphone and two-way audio support
• Edge-based analytics with AXIS Object Analytics
• Cybersecurity features including Axis Edge Vault and signed firmware

Suitable for

• Retail stores and shopping centers
• Warehouses and logistics centers
• Office buildings and lobbies
• Educational campuses
• Parking lots and outdoor perimeters

Key specifications

• Sensor: 12 MP (4000x3000)
• Lens: Fixed focal, f/2.0, 183° horizontal and vertical FOV
• IR: OptimizedIR up to 20 m (65 ft)
• Video compression: H.264, H.265, MJPEG
• Frame rate: Up to 30 fps at full resolution
• WDR: Forensic WDR
• Audio: Two-way, built-in microphone
• Storage: MicroSD/microSDHC/microSDXC slot
• Power: PoE IEEE 802.3af/802.3at
• Operating temperature: -40 °C to 50 °C (-40 °F to 122 °F)
• Ingress protection: IP66/IP67
• Impact resistance: IK10
• Mounting: Wall, ceiling, or conduit
• Digital PTZ: Yes

Recommendations

For optimal performance, use a PoE+ switch or injector. The camera supports AXIS Object Analytics and can be integrated with AXIS Camera Station or third-party VMS. Ensure the mounting surface can support the camera's weight and environmental conditions.
