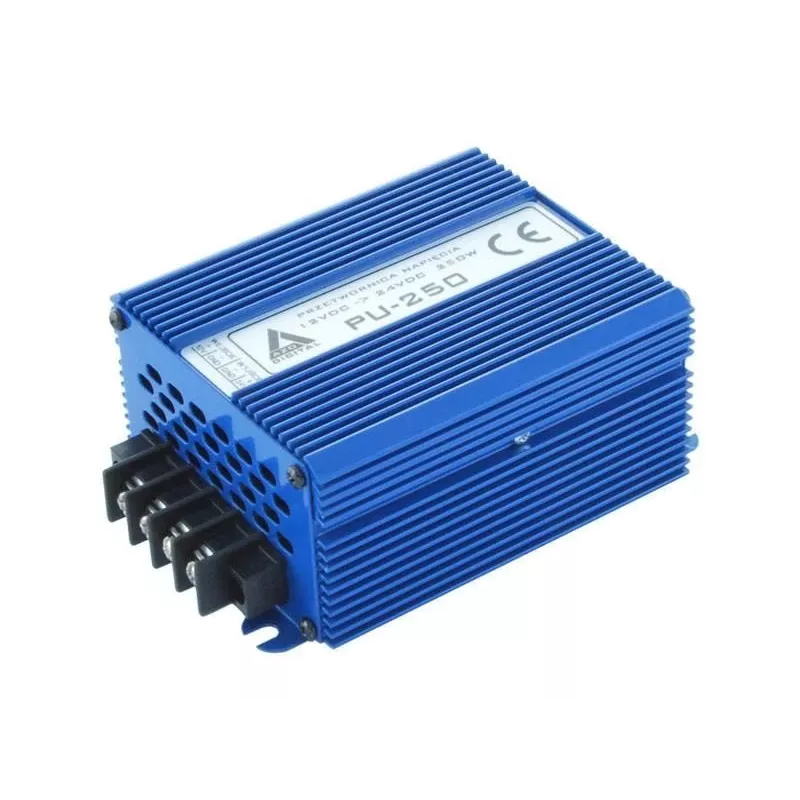

AZO Digital PU-250 24V 250W IP21 DC-DC step-up-jännitemuunnin 10-20VDC tulolla

Many industrial and mobile applications require a stable 24 VDC supply, but available power sources often provide only 10-20 VDC. The AZO Digital PU-250 solves this mismatch by stepping up lower DC voltages to a regulated 24 VDC output, delivering up to 250 W of continuous power. Its robust aluminum housing and IP21 rating make it suitable for protected indoor environments where reliable voltage conversion is critical.

Who is it for

This converter is ideal for system integrators, automation engineers, and technicians working with 12 V or 18 V battery systems, solar installations, or vehicle electronics that need a clean 24 V rail. It is also suitable for powering 24 V industrial sensors, controllers, and actuators from lower-voltage DC buses.

Main features

• Wide input range: 10-20 VDC accepts 12 V and 18 V nominal sources
• Regulated 24 VDC output with up to 10.4 A continuous current
• High efficiency >85% reduces heat and energy loss
• Comprehensive protection: overload, short circuit, over-temperature, and input reverse polarity
• Passive convection cooling for silent, maintenance-free operation
• Compact aluminum housing with screw terminal connections for easy wiring

Specifications

• Converter type: DC-DC step-up (boost), non-isolated
• Input voltage: 10-20 VDC
• Output voltage: 24 VDC
• Continuous output power: 250 W
• Maximum output current: 10.4 A
• Efficiency: >85%
• IP rating: IP21
• Operating temperature: -20°C to +50°C
• Cooling: Convection (passive)
• Housing material: Aluminum
• Input/output connectors: Screw terminals

Tips

Ensure proper ventilation around the unit to maintain optimal operating temperature. Use appropriate wire gauge for the input and output connections to handle the maximum current. Mount the converter in a dry, protected location to comply with IP21 rating.
