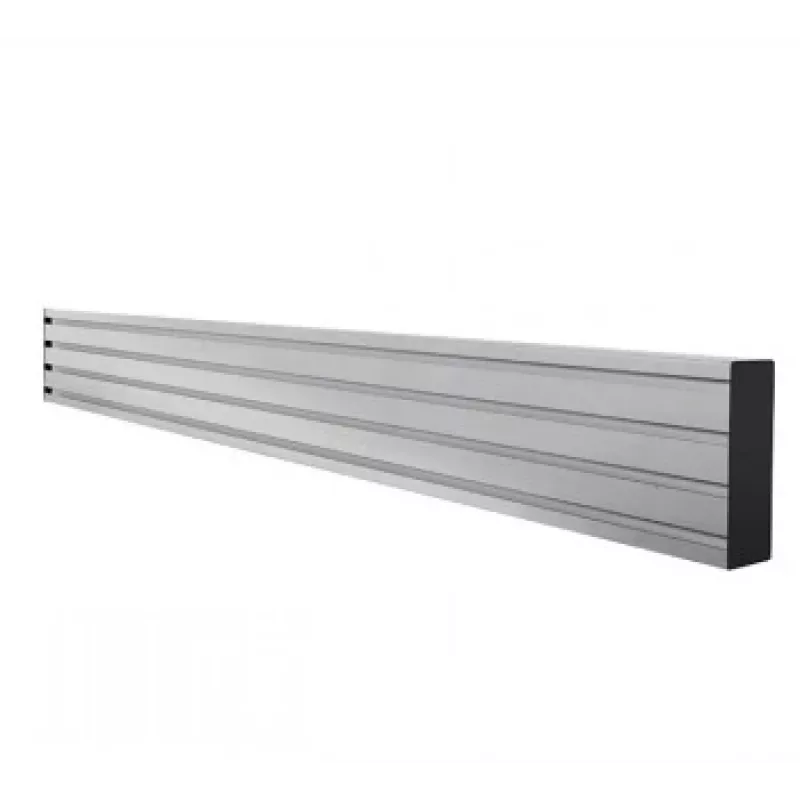

B-TECH AV SYSTEM X - vaakasuuntainen asennuskisko - 1m - musta

Multi-screen video walls and digital signage installations often suffer from misaligned displays, wasting time and compromising visual impact. The B-TECH AV SYSTEM X Horizontal Mounting Rail solves this by providing a robust, modular base for precise horizontal screen positioning. This 1-meter rail is engineered to integrate seamlessly with B-Tech System X columns and wall mounts, offering a secure 'hook-on' installation that simplifies assembly and adjustment.

Who is it for

Professional AV integrators, system designers, and installers who demand reliable, flexible mounting solutions for video walls, control rooms, retail displays, and corporate signage. It is ideal for projects requiring exact alignment and future reconfiguration.

Main features

• High-grade steel construction with durable black powder coat finish for long-lasting performance.

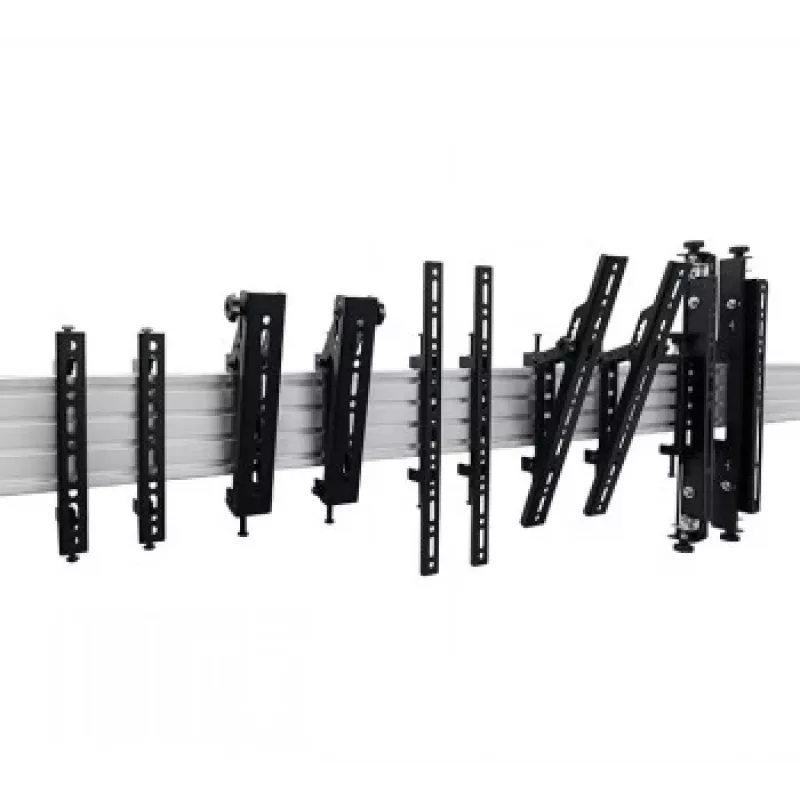

• 40 x 40 mm rail profile with integrated slots for screen interface arms, enabling horizontal adjustment.
• Modular design fully compatible with B-Tech System X components, allowing expansion or reconfiguration.
• Simple 'hook-on' installation to System X columns or wall mounts—no complex tools required.
• 1-meter length supports multiple screens or larger displays in a single run.

Specifications

• Product Type: Horizontal Mounting Rail
• System Compatibility: B-Tech System X
• Mounting Orientation: Horizontal
• Rail Length: 1000 mm (1 m)
• Material: High-grade steel
• Colour: Black
• Finish: Durable powder coat
• Rail Profile (W x H): 40 x 40 mm
• Weight: 1.5 kg

Tips

For optimal alignment, use a laser level during installation and ensure the rail is securely hooked onto the System X columns before attaching screens.
