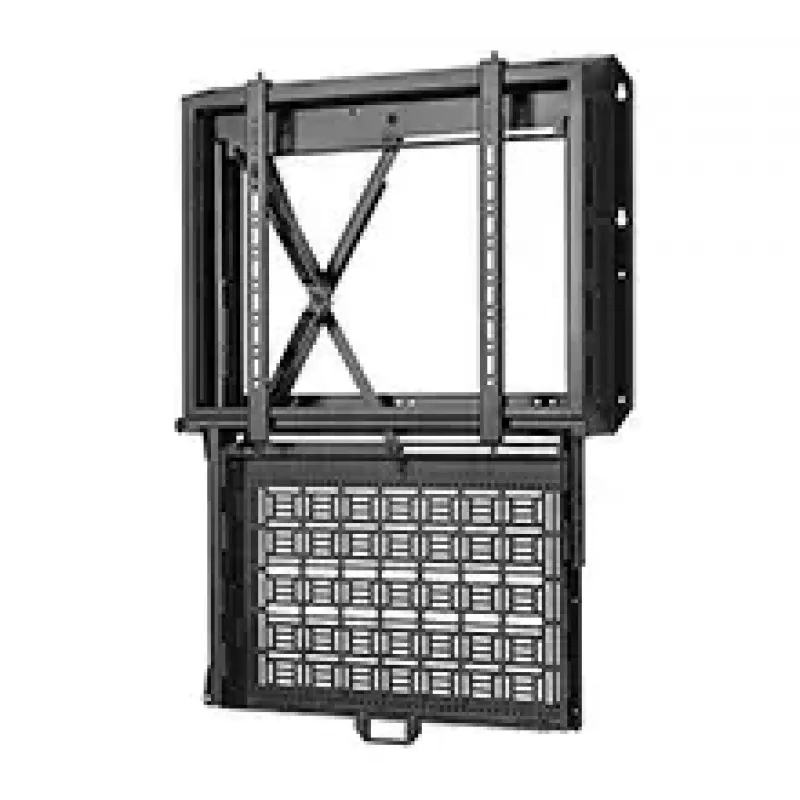

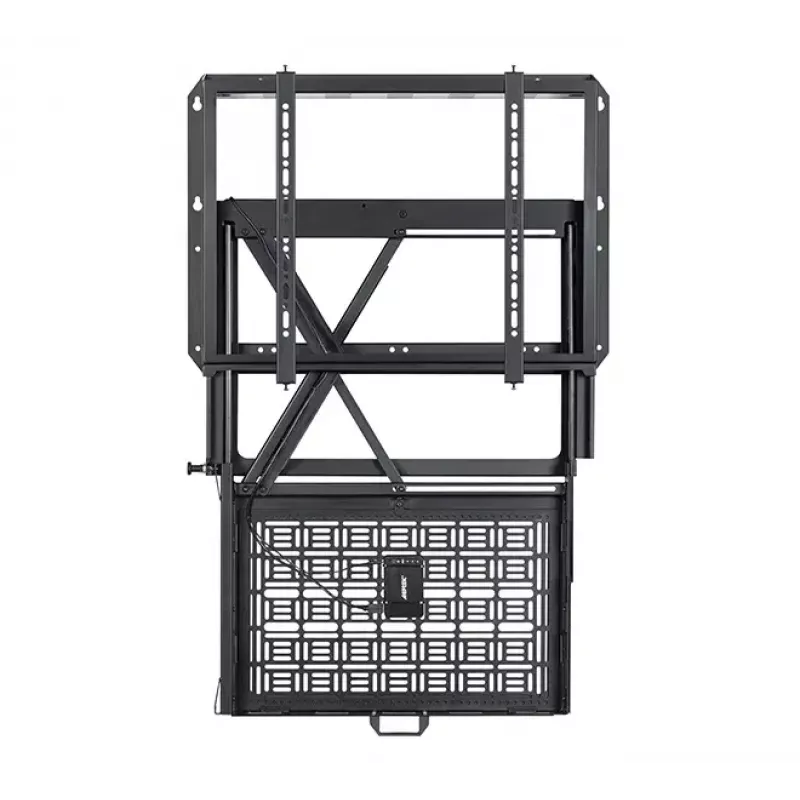

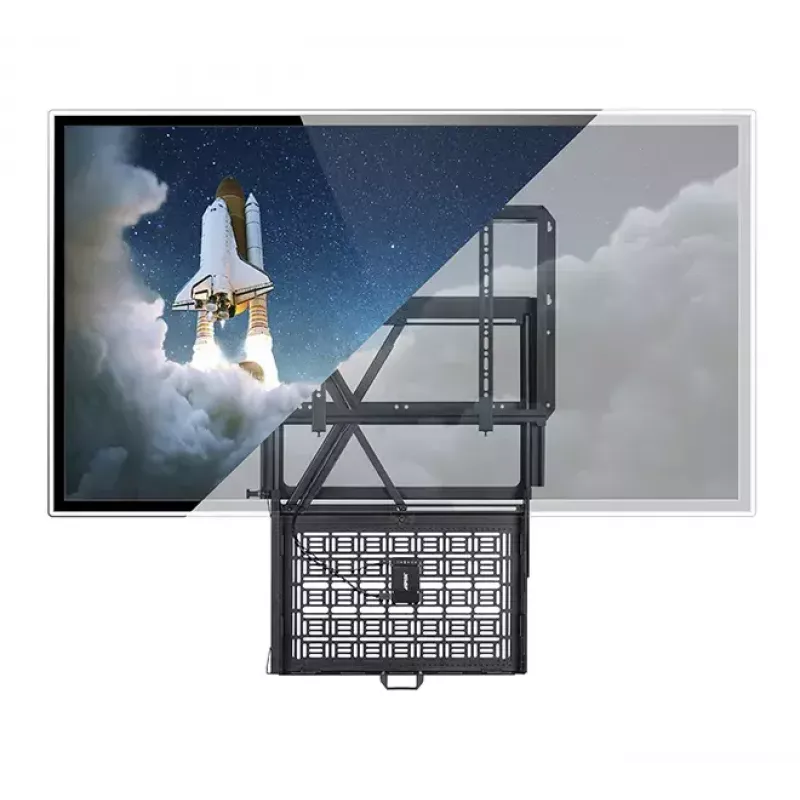

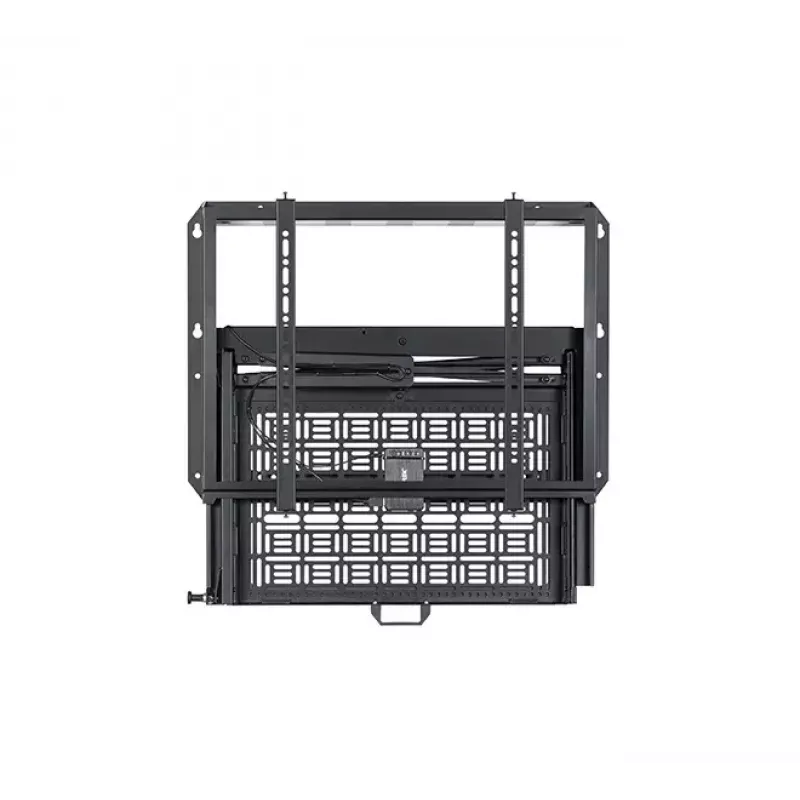

B-Tech taulutelevision seinäkiinnike BT7885/B VESA 600x400 70kg

The B-Tech Flat Screen Wall Mount BT7885/B is a mounting solution for flat screens from 49 to 86 inches, supporting VESA patterns from 100x100 mm up to 600x400 mm and a maximum load of 70 kg. It includes an integrated pull-down AV storage tray that stores equipment behind the screen while preserving a low-profile wall installation.

Advantages

The mount provides a quick-release equipment interface plate that can be separated from the mount to add or remove AV components without removing the screen. The pull-down tray operates tool-less for fast access and accepts a padlock (not included) for added security. An integrated cable management track moves with the tray to prevent cables from becoming pinched or tangled when opening or closing the tray. The unit fits standard wall installations and is compatible with B-Tech System 2 poles and System X/Mode-AL columns.

Suitable for

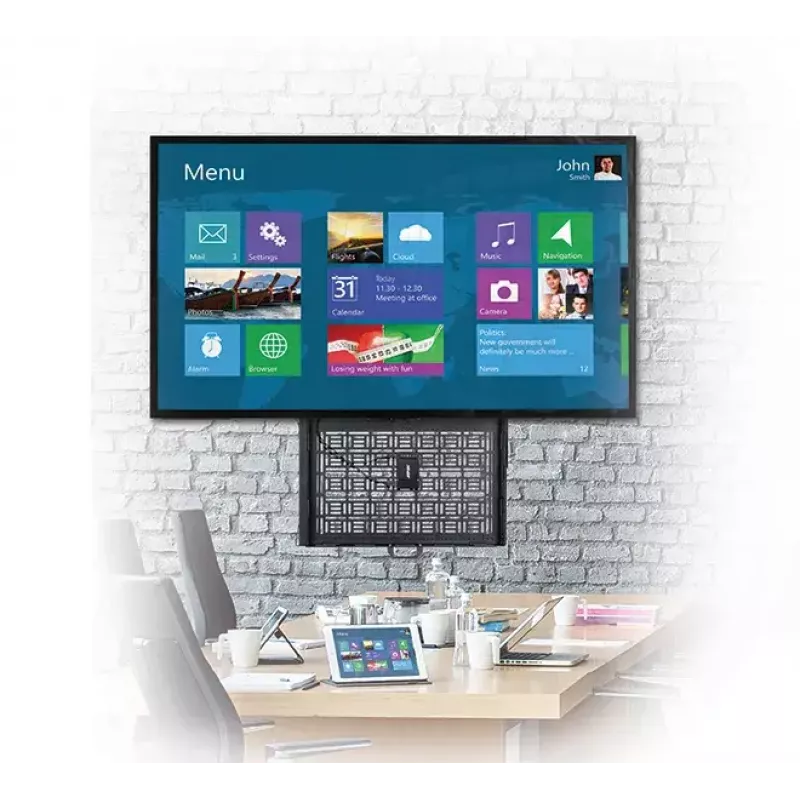

• Professional AV installations in meeting rooms and classrooms
• Commercial displays and digital signage where equipment should be hidden
• Residential setups requiring a clean, low-profile TV wall mount

Key specifications

• Supported screen size: 49"–86"
• Maximum load capacity: 70 kg
• VESA compatibility: 100x100 to 600x400 mm
• Integrated pull-down AV storage tray with quick-release plate

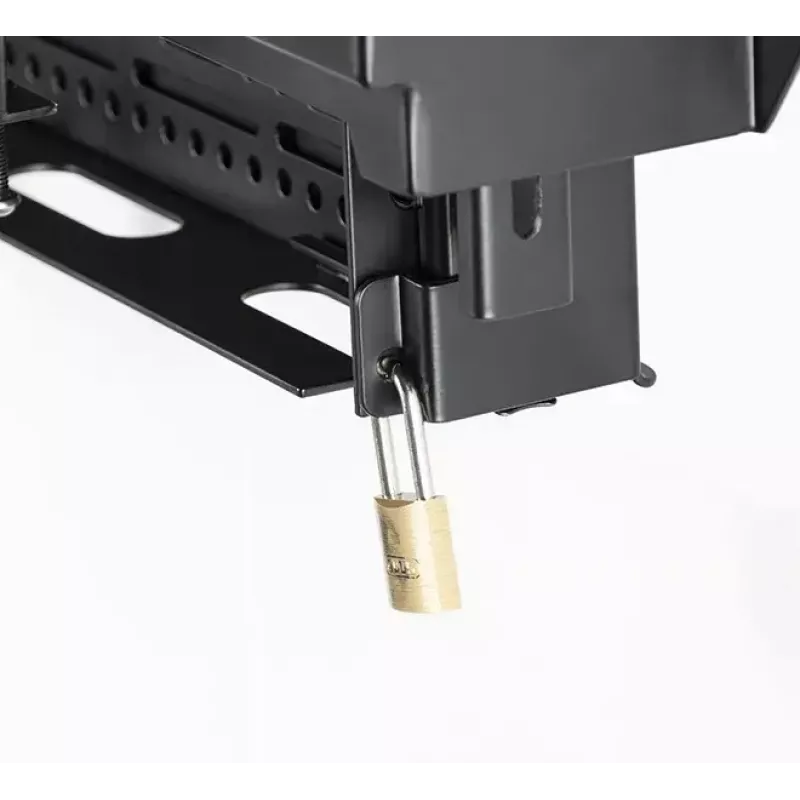

• Tool-less tray operation; padlock provision (padlock not included)
• Cable management track integrated with tray movement
• Colour: black
• Manufacturer: B-TECH, MPN: BT7885/B, EAN: 5019318305108

How to use

Mount the BT7885/B to a suitable wall or to compatible B-Tech poles/columns following the manufacturer’s installation instructions and ensuring the wall and fixings support the combined weight of the screen and equipment. Attach the screen using the appropriate VESA holes and secure AV components to the quick-release equipment interface plate. Slide the plate into the tray and use the tool-less mechanism to open or close the tray as needed. Route cables through the integrated cable management track so they move with the tray.

Recommendations

Ensure the wall structure and fixings are rated to support the total load (screen plus AV equipment). Regularly inspect the quick-release plate, tray mechanism and cable track for wear and replace or service as needed. Use a suitable padlock if restricted access to equipment is required.
