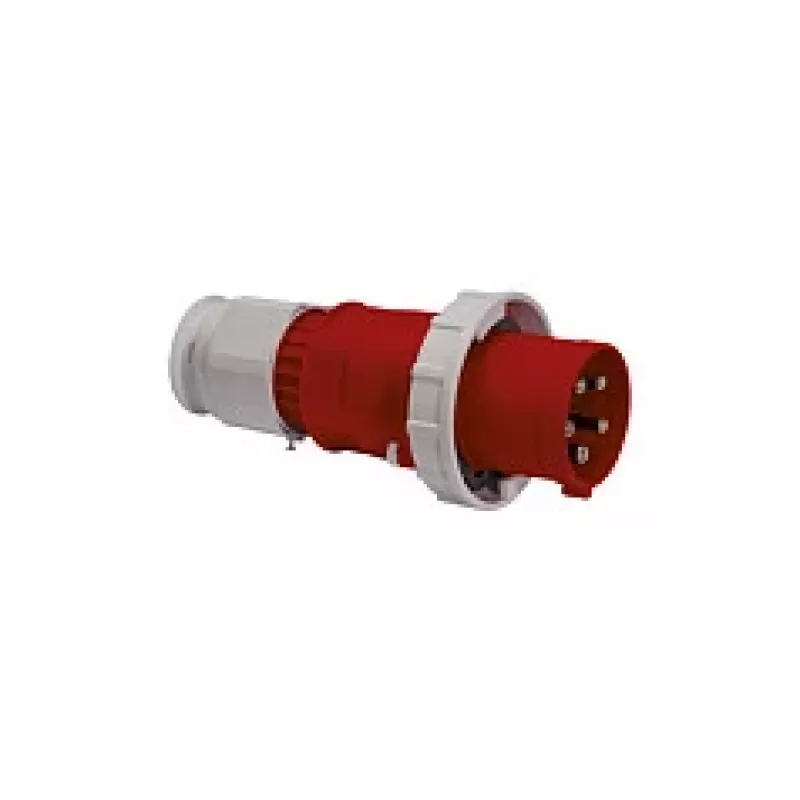

BALS CEE teollisuuspistoke 125A 400V 5-napainen IP67 6h Multi-Grip punainen

Where standard CEE plugs struggle with thick, heavy cables, the BALS 2199 excels. Its Multi-Grip cable gland locks onto cable diameters from 26 to 50 mm, delivering a rock-solid, strain-relieved connection that stays put under vibration and pull. Built for demanding 125 A three-phase circuits, this 5-pole (3P+N+PE) plug combines a rugged polyamide housing with brass contacts to ensure reliable power transfer in harsh environments.

Highlights

• Rated for 125 A at 400 V AC, 50/60 Hz
• IP67 protection against dust and temporary immersion
• 6h earth contact position for safe, standardized mating
• Multi-Grip cable gland accepts 26–50 mm cable diameters
• Screw terminals accommodate 16–50 mm² conductors
• Operating temperature range: -25 °C to +40 °C
• Complies with IEC 60309-1 and IEC 60309-2

In daily use

On construction sites, in industrial plants, or at outdoor events, the BALS 2199 provides a secure and durable connection for high-current equipment. The red housing is instantly recognizable as a 400 V three-phase connector, while the 6h keying prevents mismating with plugs of different voltage or frequency. The screw-type cable gland and large terminals make installation straightforward, even with thick, heavy cables. Once connected, the IP67 sealing keeps out moisture and dust, ensuring uninterrupted operation in challenging conditions.

Full specifications

• Brand: BALS
• Model: 2199
• MPN: 2199
• EAN: 4024941021999
• Product type: CEE industrial plug
• Current rating: 125 A
• Voltage rating: 400 V
• Number of poles: 5 (3P+N+PE)
• Earth contact position: 6h
• Frequency: 50/60 Hz
• Connection technology: Screw terminals
• Housing material: Polyamide (PA6)
• Contact material: Brass
• Design feature: Multi-Grip
• Color: Red
• Standards: IEC 60309-1, IEC 60309-2
• Operating temperature range: -25°C to +40°C
• Cable diameter range: 26 - 50 mm
• Terminal cross-section: 16 - 50 mm²
• Cable entry type: Screw-type cable gland

Final note

For high-current 400 V applications where cable retention and environmental sealing are critical, the BALS 2199 is a dependable choice that meets international safety standards.
