BEMKO hermeettinen jakorasia 4x M20 kaapeliläpiviennillä IP66

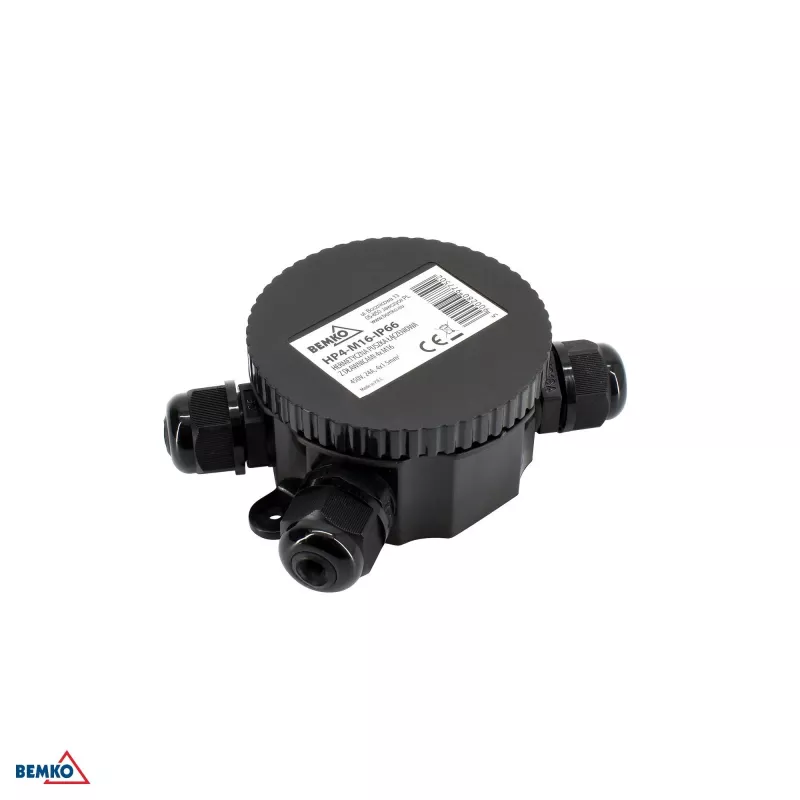

The BEMKO E04-HP4-M16-IP66 is a high-quality hermetic junction box designed for reliable electrical connections in demanding indoor and outdoor environments. With an IP66 ingress protection rating, it is dust-tight and protected against powerful water jets, making it ideal for industrial, commercial, and residential applications. The box comes pre-fitted with four M20 cable glands and features a robust ABS construction with an EPDM gasket seal.

Advantages

This junction box offers exceptional durability and weather resistance, ensuring long-lasting performance even in harsh conditions. The pre-drilled gland holes and included cable glands simplify installation, while the stainless steel lid screws provide secure fastening. Its UV-resistant and halogen-free materials make it a safe and sustainable choice for various projects.

Suitable for

• Outdoor lighting and power connections
• Industrial control systems and machinery
• Commercial building installations
• Residential electrical junctions in damp or dusty areas

Key specifications

• Brand: BEMKO
• Model: E04-HP4-M16-IP66
• Ingress Protection: IP66
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Number of Cable Glands: 4
• Cable Gland Size: M20
• Lid Fastening: 4x Stainless Steel Screws
• Seal Material: EPDM Gasket
• Color: Light Grey (RAL 7035)
• Operating Temperature Range: -25°C to +60°C
• Impact Resistance: IK07
• Flammability Rating: UL94-HB
• Mounting Type: Surface Mount (internal mounting points)
• UV Resistance: Yes
• Halogen-Free: Yes
• Rated Insulation Voltage: 690V AC
• Internal Dimensions (approx.): 92 x 92 x 45 mm (L x W x H usable)
• Standards Compliance: CE, RoHS
• Application Environment: Indoor/Outdoor, Industrial, Commercial, Residential
• Type: Hermetic Junction Box
• Pre-drilled Gland Holes: Yes (for the 4 glands)

Recommendations

For optimal performance, ensure that the cable glands are properly tightened and the lid screws are evenly torqued. This junction box is suitable for use with cables up to the specified gland size. Always follow local electrical codes and regulations during installation.
