BEP24 lattiarasia 2x Schuko (tyyppi F) hopea ruostumaton teräs

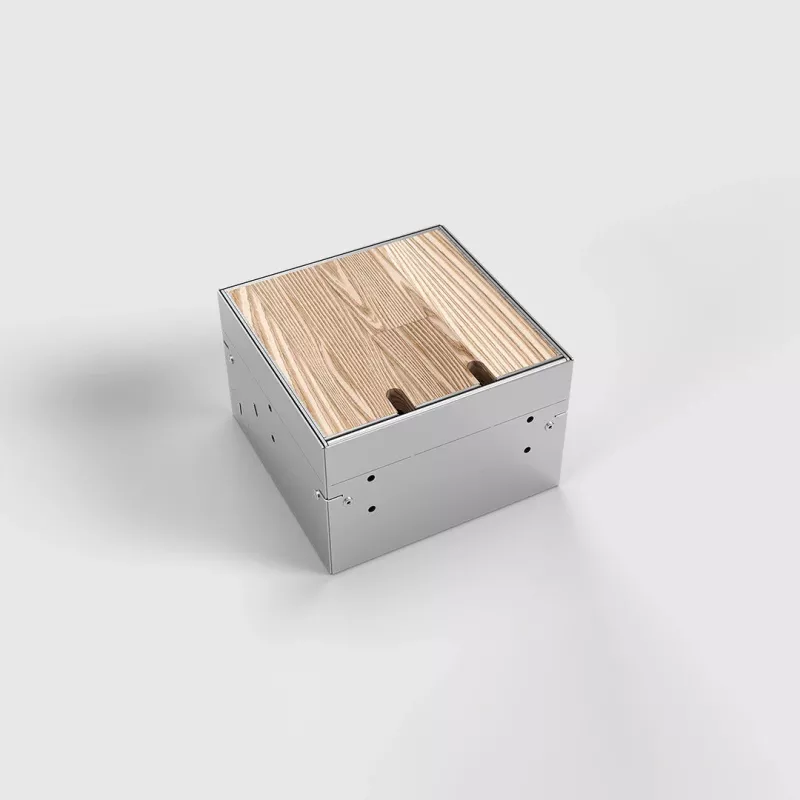

The BEP24 floor socket from BEP24 is a robust and reliable in-floor power outlet designed for professional indoor use. Featuring two Schuko (Type F) sockets with a hinged stainless steel cover, it provides convenient power access while maintaining a flush, low-profile appearance. Ideal for offices, conference rooms, and commercial spaces, this socket is built to withstand pedestrian traffic and dry-cleaned floors.

Advantages

Durable stainless steel (V2A) cover with integrated brush seal for cable outlet. Flush-mount design with integrated mounting box for easy installation. Rated for 230V/16A with screw terminal connections. Suitable for indoor environments with moderate foot traffic.

Suitable for

• Office floors and meeting rooms
• Conference and training facilities
• Commercial interiors with dry-cleaned floors
• Retail and exhibition spaces

Key specifications

• Number of Sockets: 2
• Socket Type: Schuko (Type F)
• Cover Material: Stainless Steel (V2A)
• Installation Type: Flush-mount / In-floor
• Protection Class (Closed): IP20
• Rated Voltage: 230V AC
• Rated Current: 16A
• Frequency: 50/60 Hz
• Connection Type: Screw terminals
• Cable Entry: From below (via conduit)
• Cover Feature: Hinged lid with cable outlet
• Load Capacity: Suitable for pedestrian traffic
• Application Environment: Indoor, dry-cleaned floors
• Mounting Box: Integrated
• Color: Silver
• Installation Depth: 55 mm
• Outer Frame Dimensions: 120 x 120 mm
• Certifications: CE, VDE
• Housing Material (Mounting Box): Galvanized steel
• Cable Outlet Seal: Brush seal

Recommendations

For optimal performance, ensure installation by a qualified electrician. Compatible with standard 230V AC mains supply. Always observe local electrical codes.
