Besen BS20 11kW APP-seinälatausasema sähköautoille

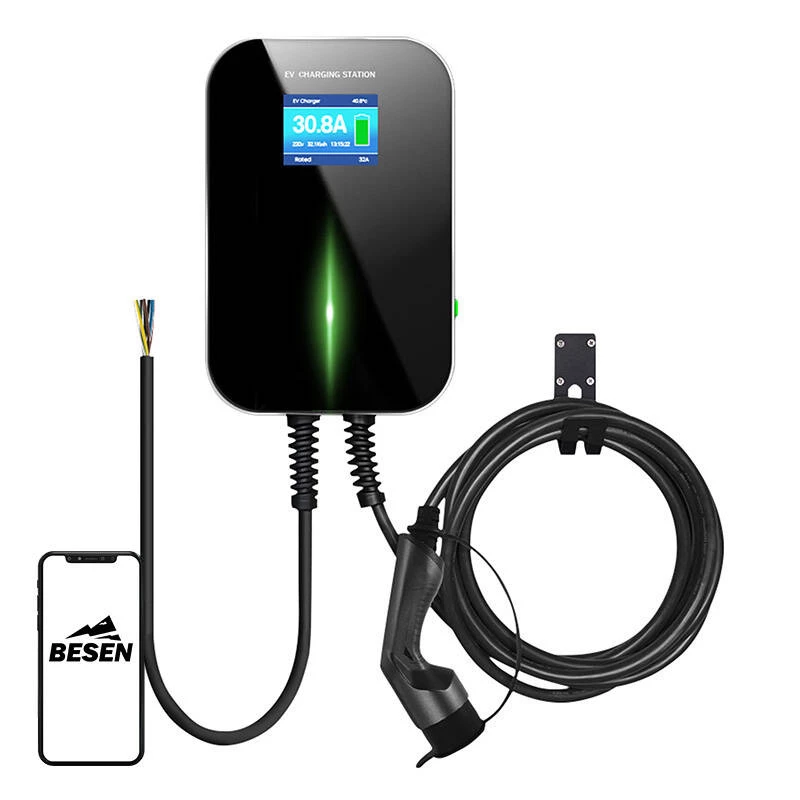

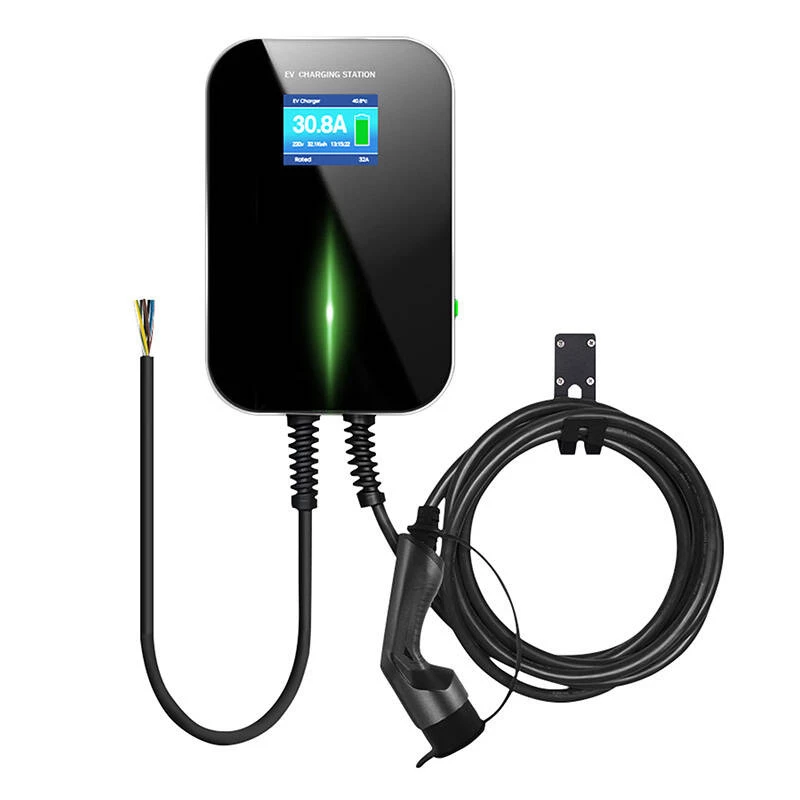

The Besen BS20 is a wall-mounted electric vehicle charger with an output of up to 11 kW, suitable for private garages and commercial parking lots. It features a 3.5-inch color LCD display and can be managed via the EVSEMaster app, allowing you to adjust charging time, view charging history, and start or stop charging remotely via Bluetooth. The durable PC+ABS housing meets IK10 impact resistance and IP66 protection, ensuring safe use both indoors and outdoors.

Key features

• 11 kW output power
• 3.5-inch color LCD display
• EVSEMaster app control (App Store and Google Play)
• Bluetooth pairing for remote start/stop
• Smart chip for vehicle identification and charging adjustment
• PC+ABS housing with IK10 impact resistance
• IP66 protection against dust and water jets
• Safety protections: undervoltage, overload, short-circuit, overheating, lightning
• Type A and Type A+6mA DC RCD
• Low standby power consumption <8 W
• Optional connectivity: Ethernet, Wi-Fi, 4G, Bluetooth
• Wall or floor mounting

Specifications

• Brand: Besen
• Model: BS20
• MPN: BS20-BC-11KW-APP
• Product type: Wall-mounted electric vehicle charger
• Input/output voltage: AC 230 V / 400 V
• Input frequency range: 47–63 Hz
• Output power: 11 kW
• Maximum output current: 32 A
• Connector type: SAE J1772, IEC 62196-2, GB/T
• Cable length: 5 m
• Protection rating: IP66
• Impact protection: IK10
• Housing material: PC+ABS engineering plastic
• Protections: Undervoltage, overload, short-circuit, overheating, lightning protection
• RCD: Type A, Type A + 6mA DC
• Ambient temperature range: -25...55°C
• Ambient humidity range: 0–95% (non-condensing)
• Maximum operating altitude: <2000 m
• Standby power consumption: <8 W
• Mobile application: EVSEMaster
• Real-time control: Yes
• Connectivity options: Ethernet, Wi-Fi, 4G, Bluetooth (optional)
• LED indicator: Yes
• Display type: 3.5-inch color LCD display
• Mounting method: Wall-mounted, floor-mounted
