BLEBOX SwitchBoxDC Wi-Fi relemoduuli 1-kanava 10A 12-24V DC

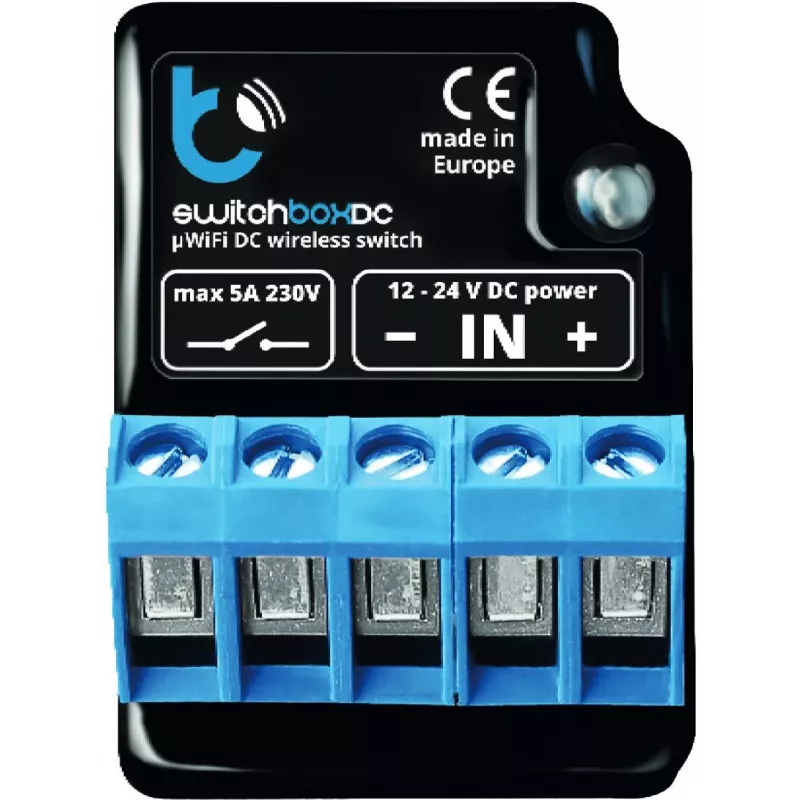

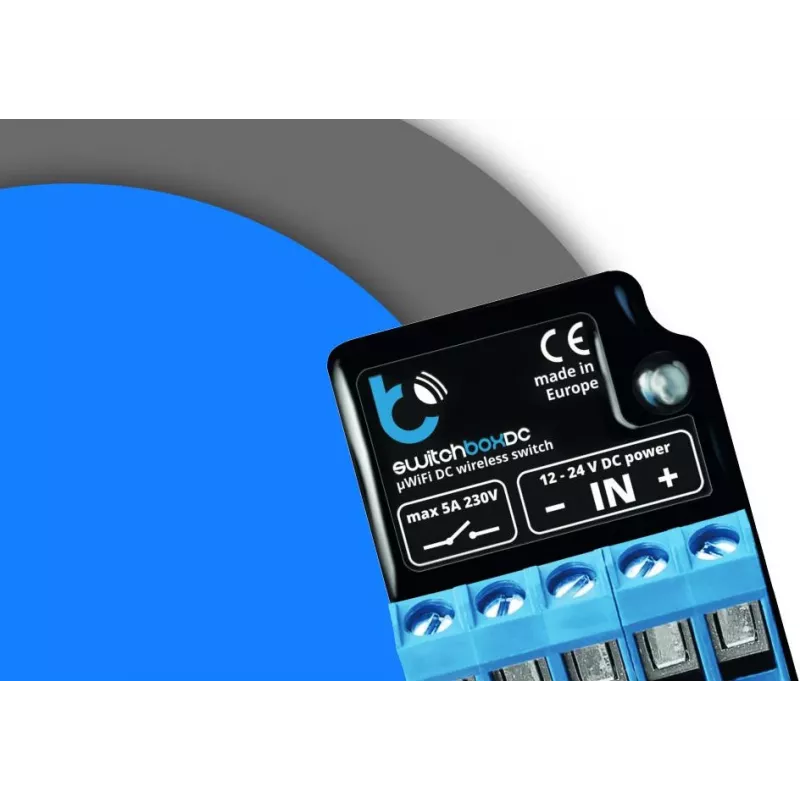

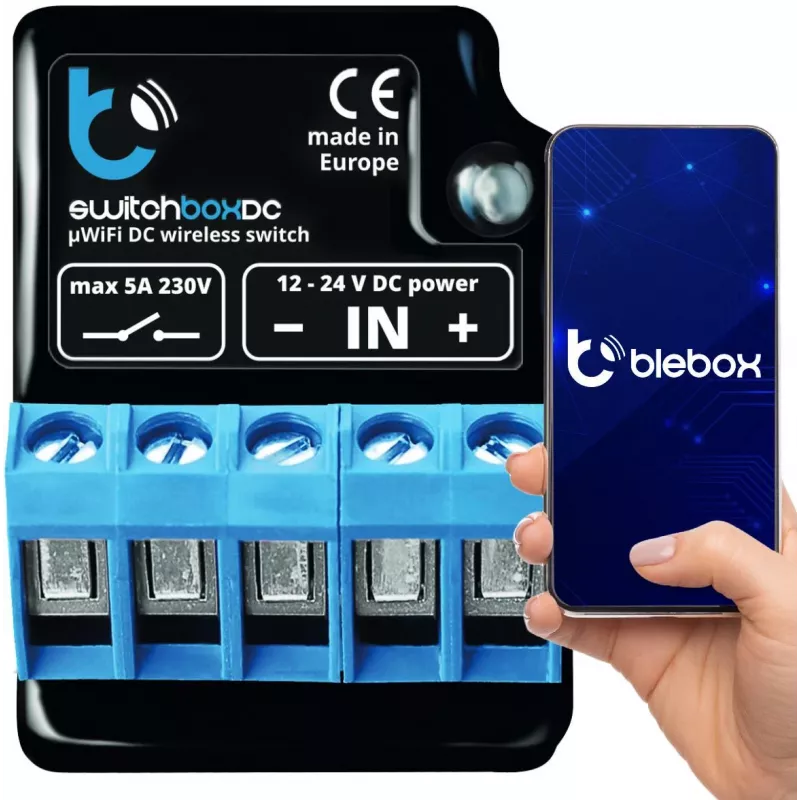

The BLEBOX SwitchBoxDC is a compact Wi-Fi relay module designed for smart home automation. It allows remote control of electrical devices via the wBox app, web browser, REST API, or MQTT. With a potential-free relay contact rated for 10A at 30V DC, it is ideal for switching lights, gates, pumps, and other low-voltage loads. The module supports voice control through Google Home and Amazon Alexa, and can be mounted in an in-wall box (Ø60mm) or on a surface.

Advantages

Easy installation, reliable Wi-Fi connectivity, and versatile control options make the SwitchBoxDC a perfect choice for both DIY enthusiasts and professional installers. Its compact design fits standard junction boxes, and the robust ABS plastic housing ensures durability. The module includes protection against overload, overvoltage, and short circuits, providing safe operation.

Suitable for

• Smart home automation projects
• Remote control of lighting, fans, pumps, and other DC devices
• Integration with voice assistants (Google Home, Amazon Alexa)
• Automation via timers, schedules, and scenes

Key specifications

• Power Supply: 12-24V DC
• Max Load Current: 10A DC
• Max Load Voltage: 30V DC
• Output: Potential-free relay contact (1 channel)
• Wireless: Wi-Fi 2.4 GHz (802.11 b/g/n)
• Security: WPA2-PSK, AES
• Control: wBox app, web browser, REST API, MQTT
• Voice: Google Home, Amazon Alexa
• Operating Temperature: -20°C to 50°C
• Standby Power: < 1W
• Mounting: In-wall box (Ø60mm) or surface mount
• Enclosure: ABS Plastic
• Certifications: CE, RoHS

Recommendations

For best performance, use a stable 12-24V DC power supply. Ensure the Wi-Fi signal is strong at the installation location. The module is not suitable for direct control of mains voltage devices without additional components.
