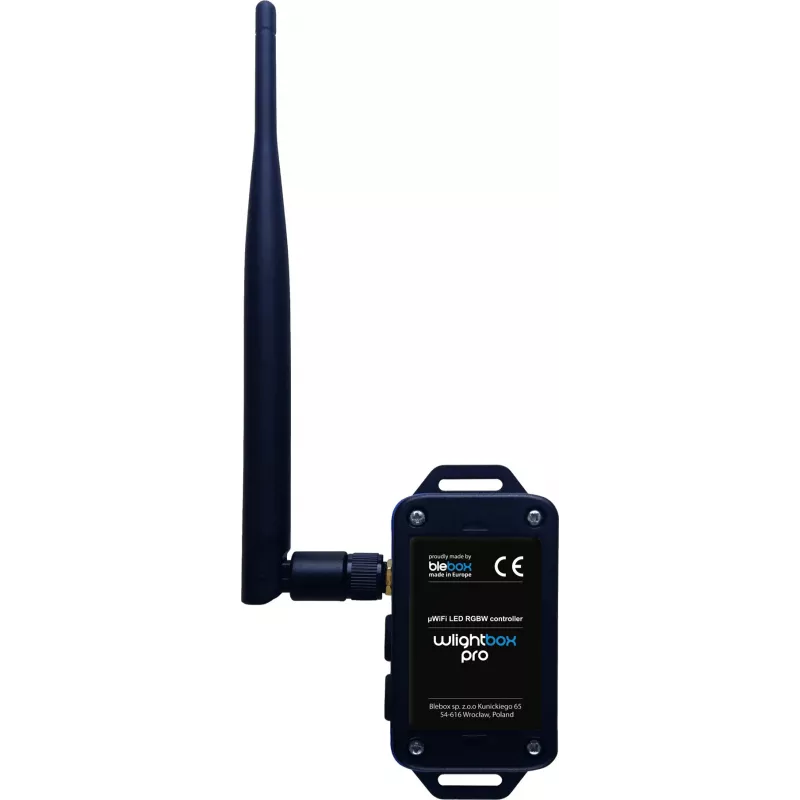

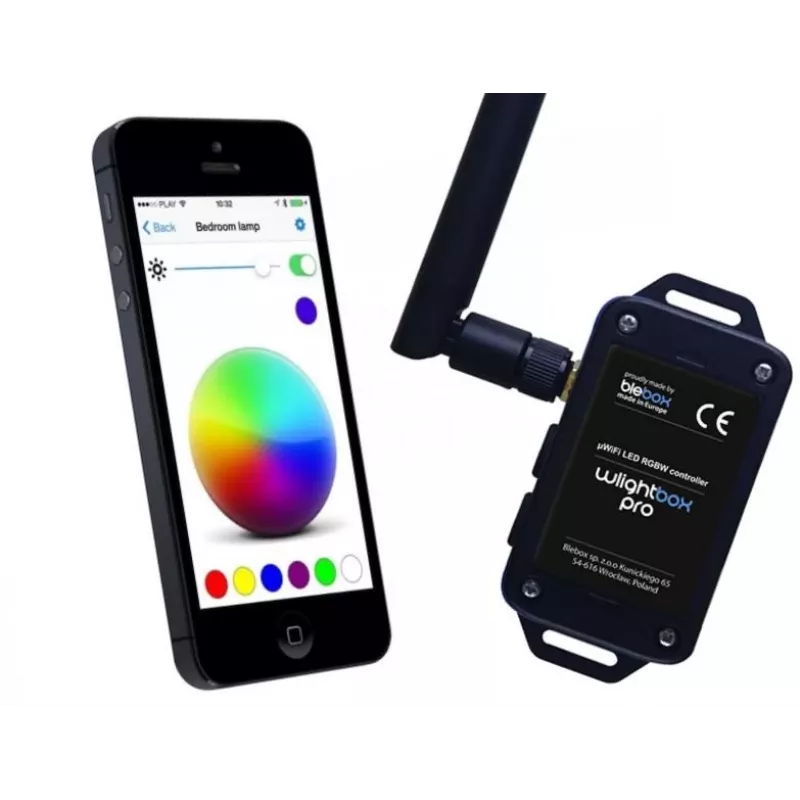

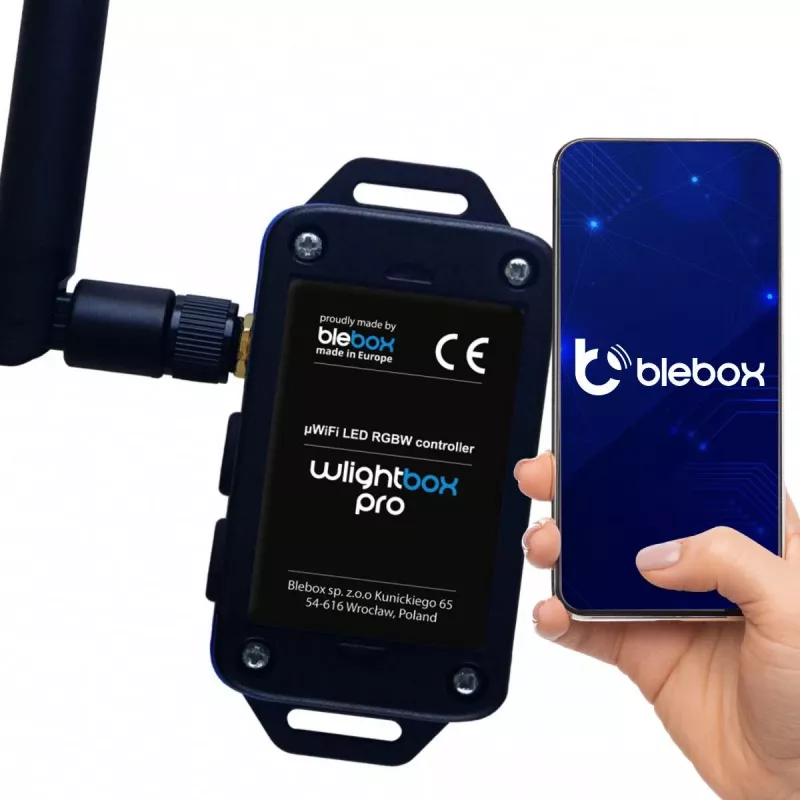

BLEBOX wLightBox Pro -valaistusmoduuli

The BLEBOX wLightBox Pro is a lighting module for controlling LED lighting. It supports RGB/RGBW/RGB or W/4x MONO/CT/2x CT lighting types and features an IP54-rated housing.

Key features

• Control LED RGBW 12-24V lighting
• Place the controller even far from the router
• Connect a wall button to your lighting
• Install the controller also in locations exposed to weather conditions thanks to the IP54-rated housing

Specifications

• Brand: Blebox
• MPN: wlightbox pro
• Power supply voltage: 12-24V
• Power consumption: < 1W
• Maximum current: 12A (3A/channel)
• Maximum input voltage: 24V
• Number of outputs: 4
• Maximum load: 288W
• Output type: open-drain, PWM, ground control
• Lighting types: RGB/RGBW/RGB or W/4x MONO/CT/2x CT
• Number of buttons: monostable (bell) without backlight
• Dimensions: 50x92x28 mm (without antenna), 5x230x28 mm (with antenna set vertically)
• Antenna length: 197 mm
• Protection rating: IP54
• Housing: plastic, filled with polyurethane compound, halogen-free, self-extinguishing for thermal class B (130°C)
• Mounting method: two oval mounting holes 18 mm (width) x 3.5 mm (height) or self-adhesive element (tape)
• Protections: reverse polarity, ESD
• Transmission standard: bidirectional, encrypted
• Communication mode: µWiFi, compatible with WiFi, 802.11g
• Transmission frequency: 2.4 GHz
• API: open
• Encryption: WPA2-PSK and authenticated encryption (AEAD)
