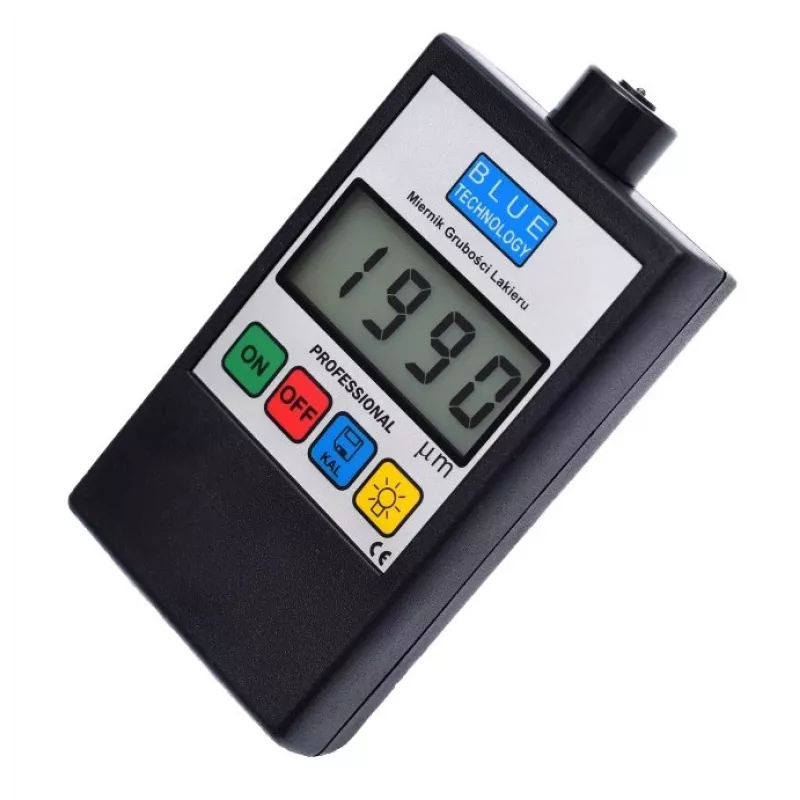

BLUE TECHNOLOGY P-11-AL pinnoitteen paksuusmittari 0-2000 µm

The BLUE TECHNOLOGY P-11-AL is a paint thickness gauge designed for precise measurement of automotive paint thickness. It measures on steel, galvanized steel and aluminium, and on curved or embossed elements such as pillars and sills. The device automatically detects the substrate type and displays "FE" for steel or galvanized steel surfaces and "AL" for aluminium surfaces.

Key features

• Measurement on steel, galvanized steel and aluminium
• Measurement on curved elements (pillars, sills, etc.)
• Spring-loaded probe that compensates for hand vibrations
• Large backlit display
• Built-in LED flashlight
• Two operating modes: continuous measurement and HOLD function
• Audible alert system
• Automatic substrate detection with "FE" and "AL" indicators
• Calibration and reference plates included

Specifications

• Brand: BLUE
• MPN: P-11-AL
• Measurement range: 0 to 1990 µm
• Measurement resolution: 10 µm
• Power supply: 2 x 1.5 V (e.g. LR6)
• Battery life: up to 100 hours
• Operating temperature: -20°C to 40°C
• Automatic shutdown after two minutes of inactivity
