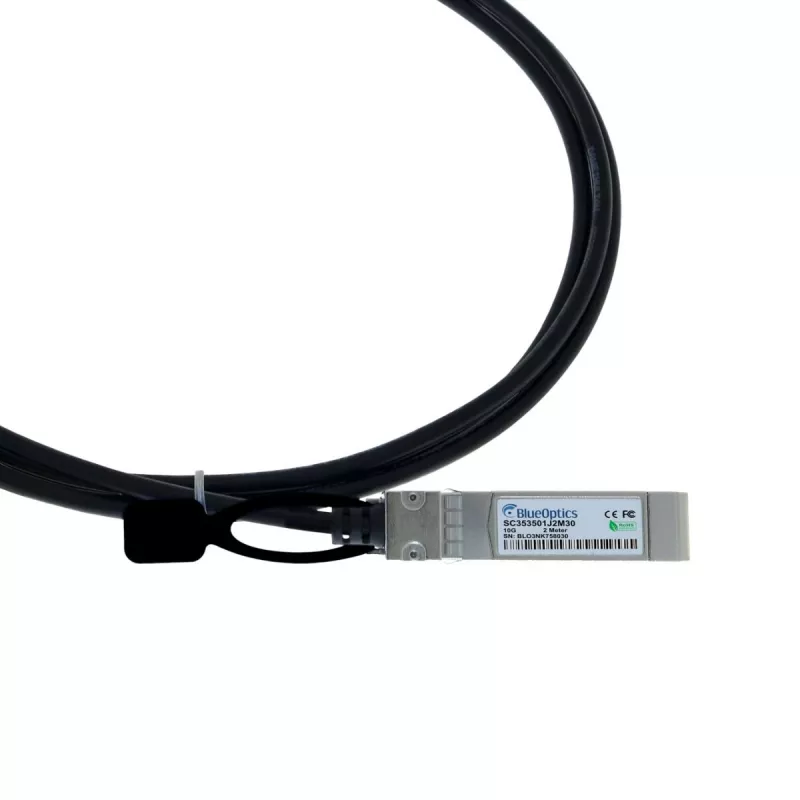

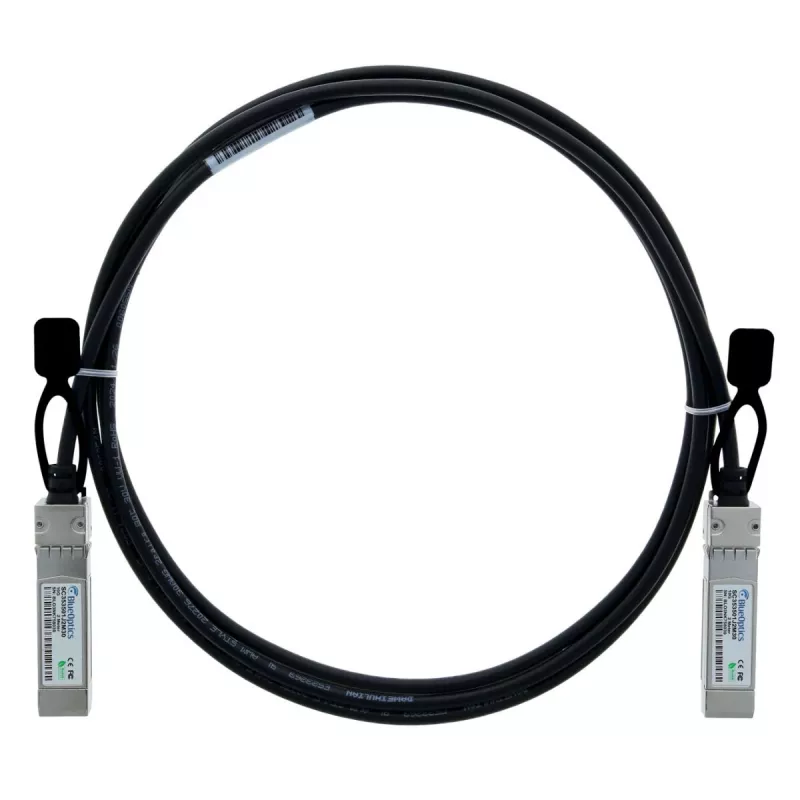

BlueLAN 10GBASE-CR passiivinen SFP+ - SFP+ Direct Attach -kaapeli, 5 m, AWG24 (747522501-BL)

This BlueLAN direct attach cable delivers a 10 Gigabit Ethernet link over passive copper, matching the Molex 747522501 specification. Unlike active DACs that draw power for signal conditioning, this passive assembly relies on the host ports' built-in equalization, keeping power consumption minimal while providing a stable 5-meter connection.

Highlights

• 10GBASE-CR passive copper SFP+ to SFP+ direct attach cable
• 5-meter length with AWG24 conductors for reliable signal integrity
• Compatible with Molex 747522501 equivalent applications
• Hot-swappable connectors simplify installation and maintenance

In daily use

The cable is suited for short-reach interconnects in data centers, linking servers to top-of-rack switches or connecting storage controllers. Its 100-ohm impedance and PVC jacket ensure consistent performance in typical operating temperatures from 0°C to 70°C. The passive design means no additional power budget is required, and the SFP+ ends latch securely into standard cages.

Full specifications

• Cable type: Direct Attach Cable (DAC)
• Data rate: 10 Gbps
• Connector type (both ends): SFP+
• Cable technology: Passive copper
• Wire gauge: AWG24
• Ethernet standard: 10GBASE-CR
• Impedance: 100 Ohm
• Jacket material: PVC
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Hot swappable: Yes

Final note

For high-density 10G links where power efficiency and simplicity matter, this passive DAC offers a cost-effective alternative to optical transceivers and fiber cabling.
