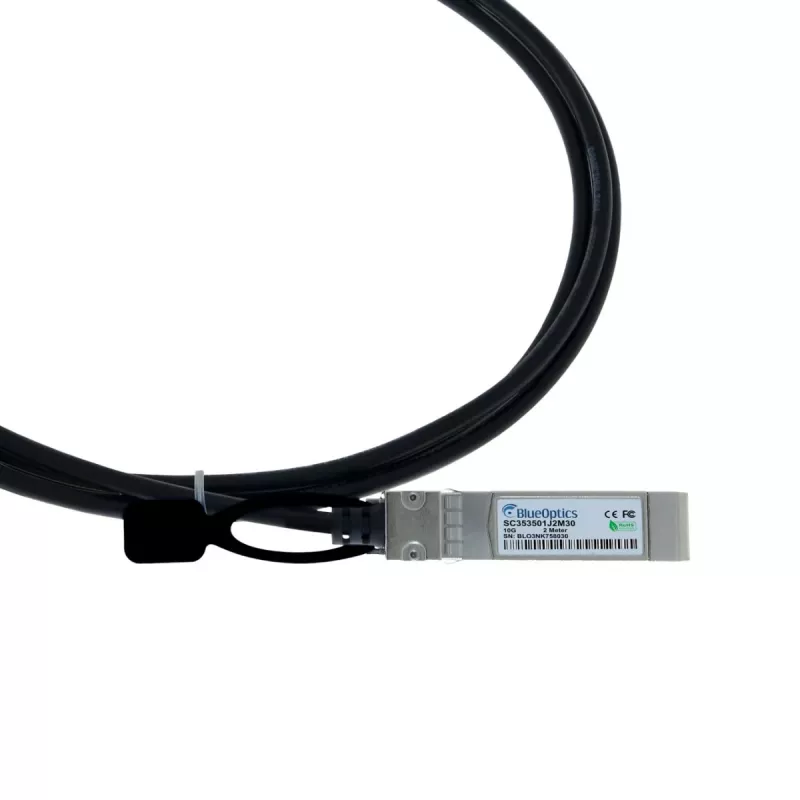

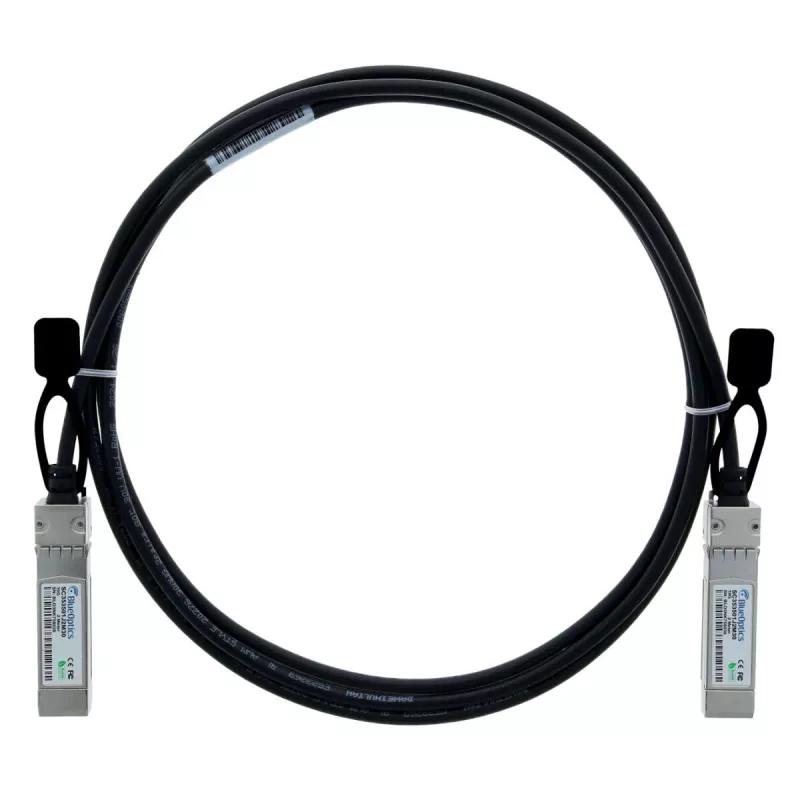

BlueLAN 747521051-BL 10GBASE-CR passiivinen SFP+ - SFP+ Direct Attach -kaapeli, 0,5 m, AWG30

10 Gbps over twinax copper with a passive SFP+ to SFP+ direct attach cable, 0.5 meters long and AWG30 gauge, compatible with Molex 747521051.

Overview

The BlueLAN 747521051-BL is a passive direct attach cable (DAC) designed for short-reach, high-bandwidth connections in data centers and enterprise networks. It supports 10GBASE-CR Ethernet and is compatible with any SFP+ port that follows the SFF-8431 standard.

What stands out

• Passive design: consumes less than 0.1 W, no additional power needed.
• Hot-swappable: install or replace without downtime.
• Flexible AWG30 cable with PVC jacket for easy routing in dense racks.
• Supports Ethernet, Fibre Channel, and InfiniBand protocols.

Technical details

• Connector type: SFP+ to SFP+
• Data rate: 10 Gbps
• Cable length: 0.5 m
• Wire gauge: AWG30
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: SFF-8431, SFF-8472

Our verdict

A reliable, low-power 10G DAC for short server-to-switch links. Its passive design and 0.5 m length make it ideal for top-of-rack deployments.
