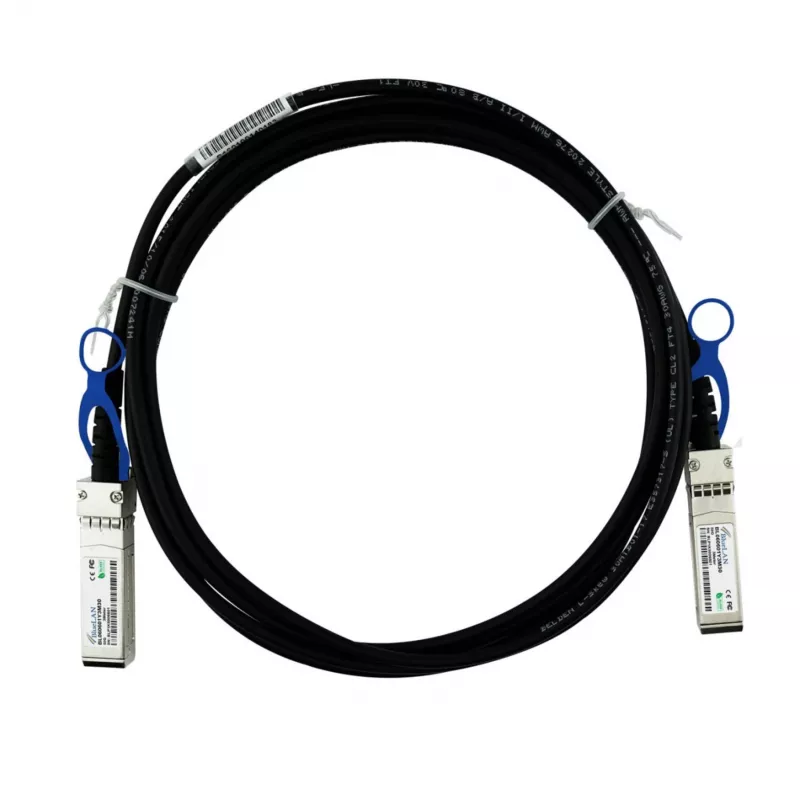

BlueLAN BL060601Y3M30 50GBASE-CR passiivinen SFP56 - SFP56 Direct Attach -kaapeli, 3 metriä

The BlueLAN BL060601Y3M30 is a high-performance 50GBASE-CR passive direct attach cable (DAC) designed for Arista C-S50-S50-3M compatible transceivers. This 3-meter copper cable provides a cost-effective, low-power solution for short-range 50 Gbps connections within data centers and enterprise networks.

Advantages

Passive copper design ensures zero power consumption and ultra-low latency. Pre-terminated SFP56 connectors eliminate the need for separate transceivers, simplifying deployment and reducing cost. Compliant with 50GBASE-CR standards, it delivers reliable 50 Gbps data rates over short distances.

Suitable for

• Data center top-of-rack to server connections
• High-speed storage area networks
• Enterprise network aggregation links
• Any application requiring 50 Gbps connectivity over 3 meters

Key specifications

• Data Rate: 50 Gbps
• Standard: 50GBASE-CR
• Cable Type: Direct Attach Cable (DAC)
• Technology: Passive Copper
• Length: 3 Meter
• Connector Type: SFP56 to SFP56
• AWG: 26 AWG
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Hot-Swappable: Yes
• Certifications: RoHS, CE, FCC Compliant

Recommendations

For optimal performance, use with Arista C-S50-S50-3M compatible switches and network interface cards. Ensure proper cable management to maintain signal integrity.
