BlueLAN MCP1600-C00BE30N-BL QSFP28 Direct Attach -kuparikaapeli, 100GBASE-CR4, 30AWG, 2 metriä

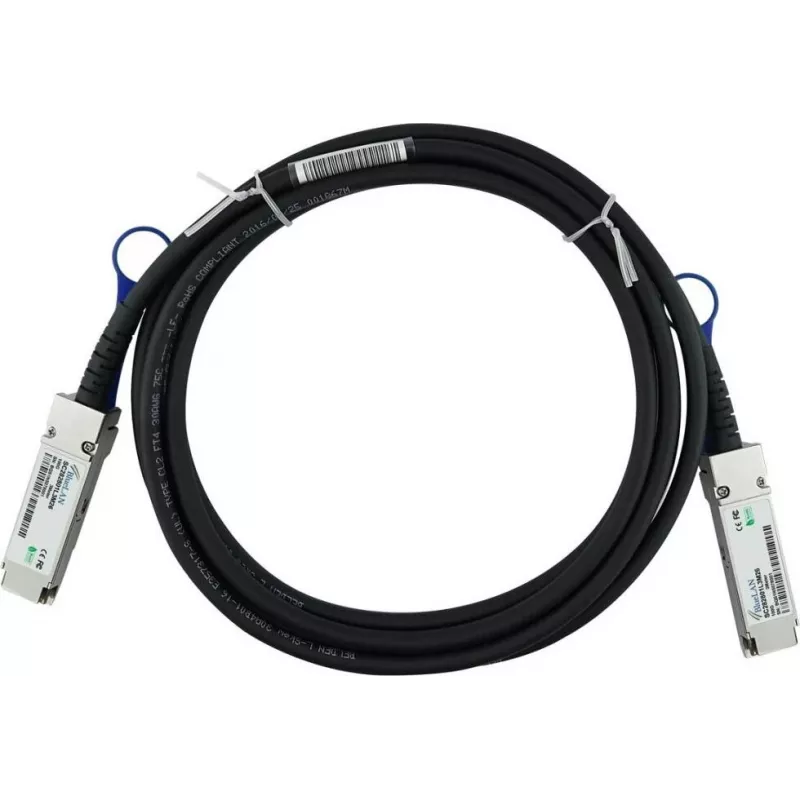

The BlueLAN MCP1600-C00BE30N-BL is a high-performance QSFP28 Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. This passive copper cable provides a cost-effective and low-power solution for short-range interconnects in data centers, high-performance computing (HPC) environments, and enterprise networks. With a length of 2 meters and 30 AWG wire gauge, it ensures reliable signal integrity and minimal latency.

Advantages

This DAC cable offers several benefits: it consumes less than 0.5W power, eliminating the need for external power sources; it is hot-pluggable for easy installation and maintenance; and it supports the 100GBASE-CR4 standard for seamless integration with existing Ethernet infrastructure. The passive design ensures low cost and high reliability.

Suitable for

• Data center top-of-rack to server interconnects
• High-performance computing clusters
• Enterprise network backbone connections
• Storage area networks (SAN)

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• Cable Length: 2 Meter
• Wire Gauge: 30 AWG
• Compatibility: NVIDIA MCP1600-C00BE30N
• Transceiver Type: Passive
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.5W
• Compliance: SFF-8665 (QSFP28 MSA), IEEE 802.3bj (100GBASE-CR4)

Recommendations

For optimal performance, use this cable with compatible NVIDIA or BlueLAN QSFP28 ports. Ensure proper handling to avoid damage to the connectors. This cable is ideal for short-distance, high-speed connections within racks or between adjacent racks.
