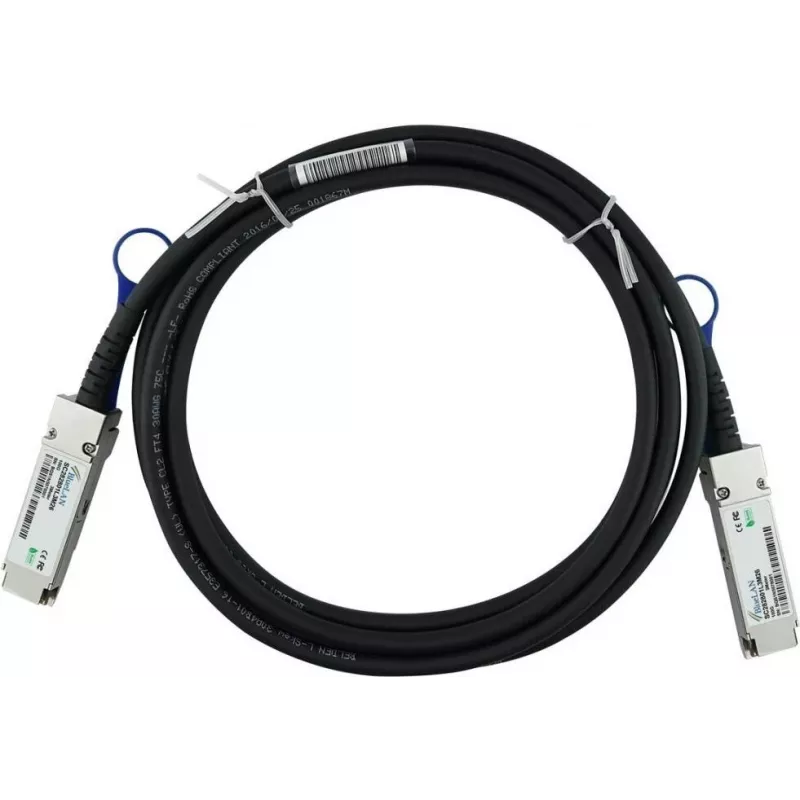

BlueLAN MCP1600-E01A-BL -yhteensopiva QSFP28 Direct Attach -kaapeli, 100GBASE-CR4, InfiniBand EDR, 30AWG, 2 m

The BlueLAN MCP1600-E01A-BL is a high-performance, passive copper direct attach cable (DAC) designed for 100 Gigabit Ethernet and InfiniBand EDR applications. It is fully compatible with Mellanox MCP1600-E01A and NVIDIA networking equipment, providing a cost-effective, reliable interconnect solution for data centers and high-performance computing (HPC) environments.

Advantages

This DAC cable offers ultra-low latency and low power consumption (<0.5W), making it ideal for energy-efficient networks. The 30 AWG twinax copper construction ensures signal integrity over the 2-meter length, while the QSFP28 connectors are hot-swappable for easy installation and maintenance. RoHS, CE, and FCC compliance guarantee environmental and safety standards.

Suitable for

• Data center top-of-rack and end-of-row switching
• High-performance computing clusters
• 100GbE and InfiniBand EDR network interconnects
• Mellanox/NVIDIA switch and adapter card connectivity

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Passive Copper
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand Standard: EDR
• Cable Length: 2 Meter
• Wire Gauge: 30 AWG
• Compatibility: Mellanox MCP1600-E01A
• Power Consumption: <0.5W
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, pair this cable with compatible Mellanox or NVIDIA QSFP28 ports. Ensure proper cable management to maintain airflow and signal quality. This cable is a direct replacement for OEM part MCP1600-E01A.
