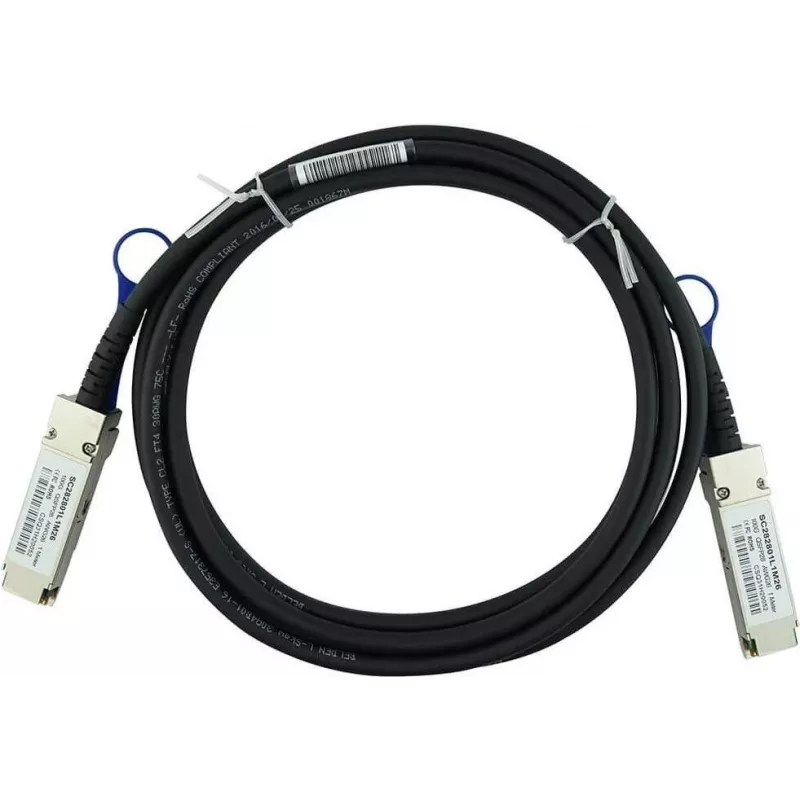

BlueOptics 100G QSFP28 passiivinen Direct Attach -kuparikaapeli 1 m

The BlueOptics 100G-QSFP-QSFP-P-1M-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet (100GbE) applications. It provides a cost-effective and low-power solution for short-reach interconnects within data centers, connecting QSFP28 ports on switches, servers, and storage equipment.

Advantages

This DAC cable offers ultra-low power consumption (<0.5W per end), eliminating the need for optical transceivers and reducing overall system power. Its passive twinax design ensures reliable signal integrity over 1 meter, with hot-pluggable QSFP28 connectors for easy installation and maintenance. The cable is fully compliant with QSFP28 MSA and IEEE 802.3bj standards, guaranteeing interoperability with compatible equipment.

Suitable for

• Data center interconnects
• Server-to-switch connections
• Storage area networks (SAN)
• High-performance computing clusters

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Data Transfer Rate: 100 Gbps
• Connector Type: QSFP28 to QSFP28
• Cable Length: 1 meter (3.3 feet)
• Cable Design: Passive Twinax
• Impedance: 100 Ohm
• Power Consumption: <0.5W per end
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: QSFP28 MSA, IEEE 802.3bj, RoHS

Recommendations

For optimal performance, ensure that both connected devices support QSFP28 interfaces and 100GbE standards. This cable is ideal for top-of-rack and end-of-row cabling in data centers.
