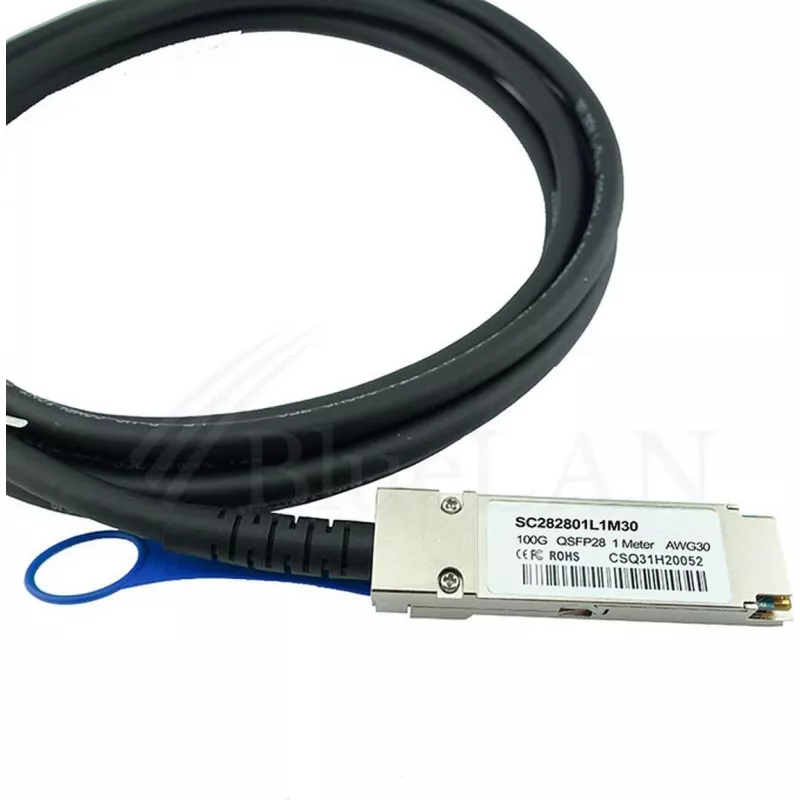

BlueOptics 100G QSFP28 - QSFP28 passiivinen Direct Attach -kuparikaapeli 3 m

The BlueOptics 100G-QSFP-QSFP-P-3M-BL is a high-performance 100 Gigabit Ethernet passive direct attach copper (DAC) cable designed for data center and enterprise networking applications. It provides a cost-effective, low-power solution for short-range interconnects between QSFP28 ports.

Advantages

This cable offers reliable 100 Gbps connectivity with minimal power consumption (<0.5W), hot-swappable convenience, and compliance with IEEE 802.3bj and SFF-8665 standards. Its passive design ensures low latency and no signal degradation over the 3-meter length.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Enterprise network switches and routers
• Short-range 100G interconnects

Key specifications

• Data Rate: 100 Gbps
• Cable Type: Direct Attach Copper (DAC), Passive
• Connectors: QSFP28 male to QSFP28 male
• Cable Length: 3 meters
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: <0.5W
• Hot-Swappable: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with compatible 100G QSFP28 ports. Ensure proper cable management to avoid bending beyond the minimum bend radius.
