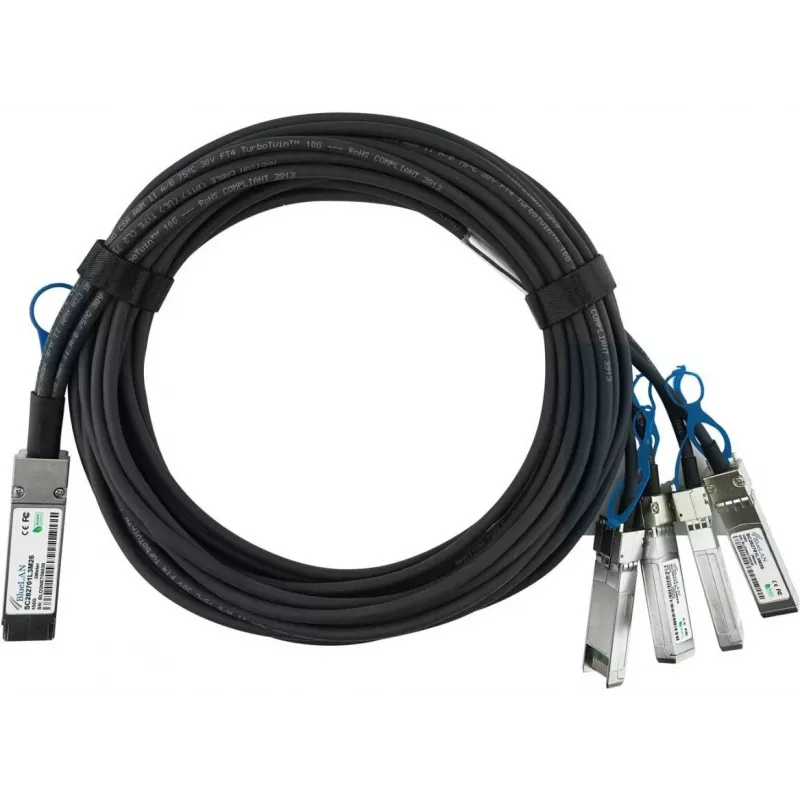

BlueOptics BS33 -yhteensopiva BlueLAN QSFP28 DAC 2 m passiivinen kuparikaapeli (BS33-BL)

The BlueOptics BS33-BL is a high-performance, cost-effective QSFP28 direct attach copper (DAC) cable designed for 100 Gigabit Ethernet (100GbE) applications. It is fully compatible with BlueLAN BS33 switches and other QSFP28 MSA-compliant equipment, providing reliable, low-latency connectivity for data centers and high-performance computing environments.

Advantages

This passive copper cable offers a low-power, cost-efficient solution for short-range interconnects. With a length of 2 meters and 26 AWG construction, it ensures excellent signal integrity and minimal power consumption (<0.5W). The integrated QSFP28 connectors are hot-pluggable, simplifying installation and maintenance.

Suitable for

• Data center top-of-rack and end-of-row connections
• High-performance computing (HPC) clusters
• Enterprise networking and server interconnects
• 100GbE Ethernet and InfiniBand applications

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Form Factor: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Cable Length: 2 meters
• Cable Type: Passive Copper
• Wire Gauge: 26 AWG
• Connector Type: QSFP28 (both ends)
• Power Consumption: <0.5W
• Voltage Supply: 3.3V
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, ensure your equipment supports QSFP28 MSA standards. This cable is ideal for short-distance, high-speed connections within racks or between adjacent racks. Always handle with care to avoid damage to connectors.
