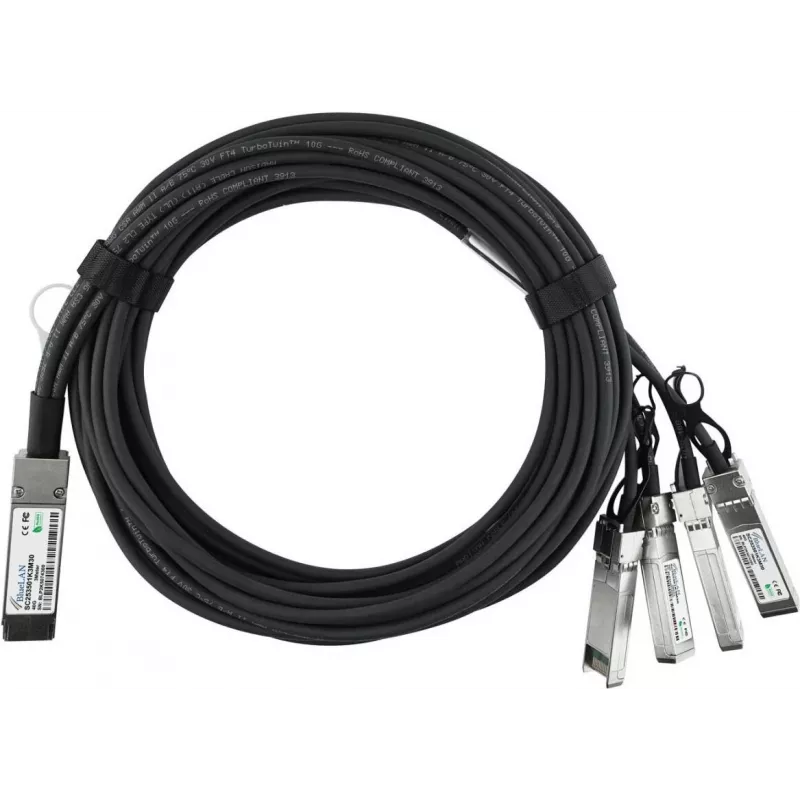

BlueOptics Dell 470-AAGD BlueLAN passiivinen 40GBASE-CR4 QSFP - 4x10GBASE-CR SFP+ Direct Attach -haarautumiskaapeli, 1 m

The BlueOptics Dell 470-AAGD BlueLAN passive direct attach breakout cable is a high-performance solution for connecting 40G QSFP ports to four 10G SFP+ ports. Designed for compatibility with Dell 470-AAGD systems, this cable enables seamless migration and flexible network architecture in data centers and enterprise environments.

Advantages

This breakout cable offers a cost-effective and reliable way to upgrade to 40G while leveraging existing 10G infrastructure. Its passive twinax copper design ensures low power consumption and minimal latency, making it ideal for high-density applications. The hot-pluggable connectors simplify installation and reduce downtime.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Network switches and servers with QSFP and SFP+ ports
• Enterprise network upgrades from 10G to 40G

Key specifications

• Product Type: Direct Attach Breakout Cable (DAC)
• Cable Length: 1 Meter (3.3 feet)
• Connector A: QSFP (Quad Small Form-factor Pluggable)
• Connector B: 4x SFP+ (Small Form-factor Pluggable Plus)
• Data Rate (Port A): 40 Gbps (40GBASE-CR4)
• Data Rate (Port B): 4x 10 Gbps (4x10GBASE-CR)
• Cable Type: Passive Twinax Copper
• Compatibility: Dell 470-AAGD Compatible
• Ethernet Standard: IEEE 802.3ba (40GBASE-CR4), IEEE 802.3ae (10GBASE-CR)
• Impedance: 100 Ohm
• Wire Gauge: 30 AWG
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.5W per end
• Hot-Pluggable: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible 40GBASE-CR4 and 10GBASE-CR ports. This cable is ideal for short-distance connections within racks or between adjacent racks.
