BlueOptics Dell 470-ABOR BlueLAN passiivinen 100GBASE-CR4 QSFP28 - 4x25GBASE-CR SFP28 Direct Attach -haarautumiskaapeli, 1 m

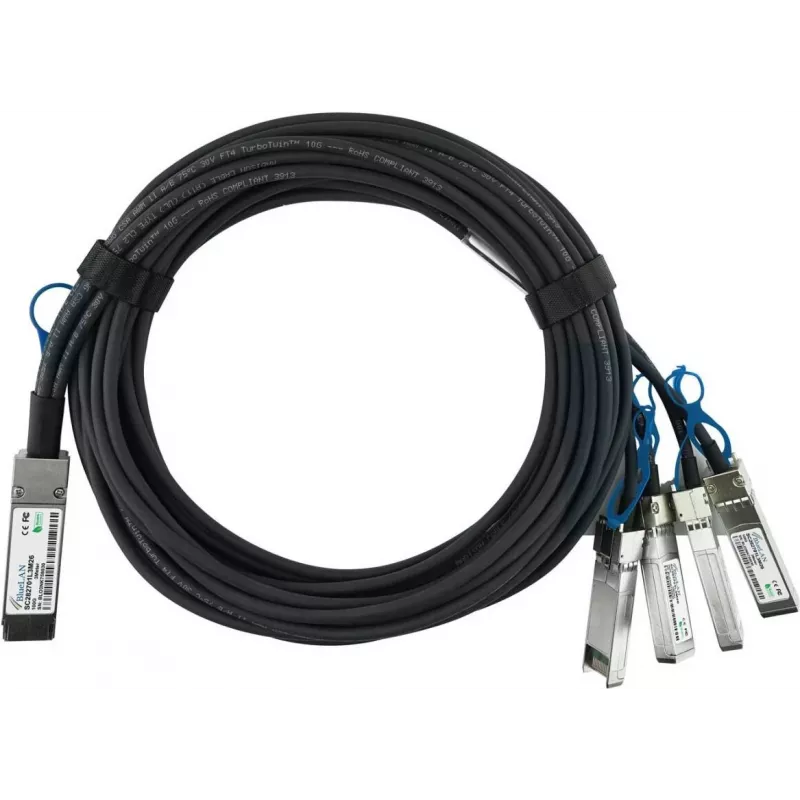

The BlueOptics Dell 470-ABOR BlueLAN passive 100GBASE-CR4 QSFP28 to 4x25GBASE-CR SFP28 Direct Attach Breakout Cable (DAC) is a high-performance copper cable designed for data center and enterprise networking. It enables a single 100G QSFP28 port to break out into four 25G SFP28 ports, providing a cost-effective and efficient solution for high-speed connectivity.

Advantages

This breakout cable offers seamless integration with Dell 470-ABOR compatible equipment and other QSFP28/SFP28 compliant devices. It supports passive transmission, ensuring low power consumption (<0.5W) and reliable performance. The cable is hot-swappable, RoHS and REACH compliant, and operates in a wide temperature range (0°C to 70°C).

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network aggregation
• Telecommunications infrastructure

Key specifications

• Connector A: QSFP28 Male
• Connector B: 4x SFP28 Male
• Data Rate: 100 Gbps (QSFP28) to 4x 25 Gbps (SFP28)
• Cable Length: 1 Meter (3.3 feet)
• Cable Material: Copper
• Passive Direct Attach Cable
• Impedance: 100 Ohm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible 100GBASE-CR4 and 25GBASE-CR ports. This cable is ideal for short-distance, high-bandwidth applications within racks or adjacent racks.
