BlueOptics Edge Core ET6402-DAC-3M yhteensopiva BlueLAN QSFP Direct Attach -kaapeli, 40GBASE-CR4, 30AWG, 3 m

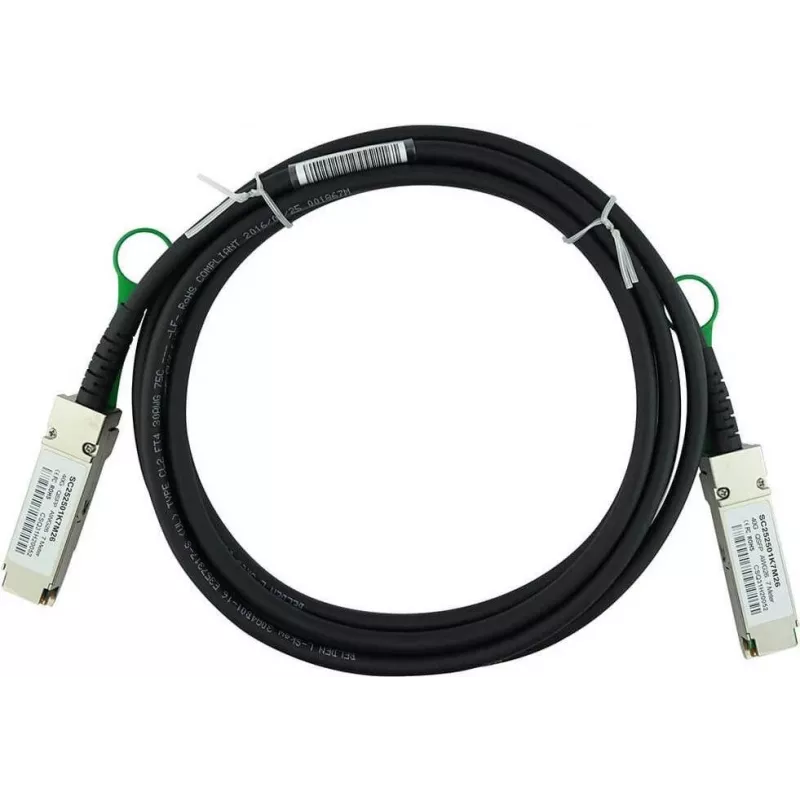

The BlueOptics Edge Core ET6402-DAC-3M compatible BlueLAN QSFP Direct Attach Cable (DAC) is a high-performance, passive copper cable designed for 40 Gigabit Ethernet and InfiniBand QDR applications. With a length of 3 meters and 30 AWG wire gauge, this cable provides a reliable, low-latency connection for data center and high-performance computing environments.

Advantages

This direct attach cable offers a cost-effective and energy-efficient solution for short-range interconnects. It is hot-pluggable, compliant with SFF-8436, and consumes less than 0.5W per end, making it ideal for high-density deployments. The passive design ensures zero power consumption for signal conditioning, reducing overall system power draw.

Suitable for

• Data center interconnects between switches, servers, and storage
• High-performance computing (HPC) clusters
• Network interconnects requiring 40 Gbps data rates
• Ethernet 40GBASE-CR4 and InfiniBand QDR networks

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Length: 3 Meter
• Wire Gauge: 30 AWG
• Protocol Support: Ethernet, InfiniBand QDR
• Compatibility: Edge Core ET6402-DAC-3M (compatible)
• Cable Material: Copper
• Transceiver Type: Passive
• Form Factor: QSFP to QSFP
• Hot-Pluggable: Yes
• Impedance: 100 Ohm (typical)
• Operating Temperature: 0°C to 70°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP ports. This cable is a direct replacement for the Edge Core ET6402-DAC-3M and is fully compatible with Edge Core equipment.
