BlueOptics kuituvaimennin yksimuoto SC/APC Simplex 15dB

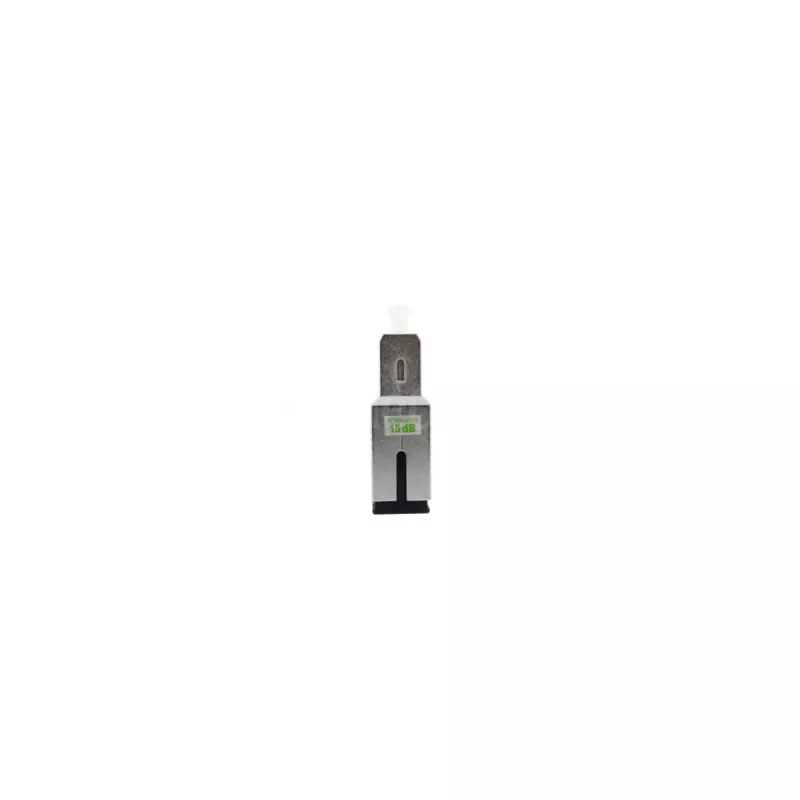

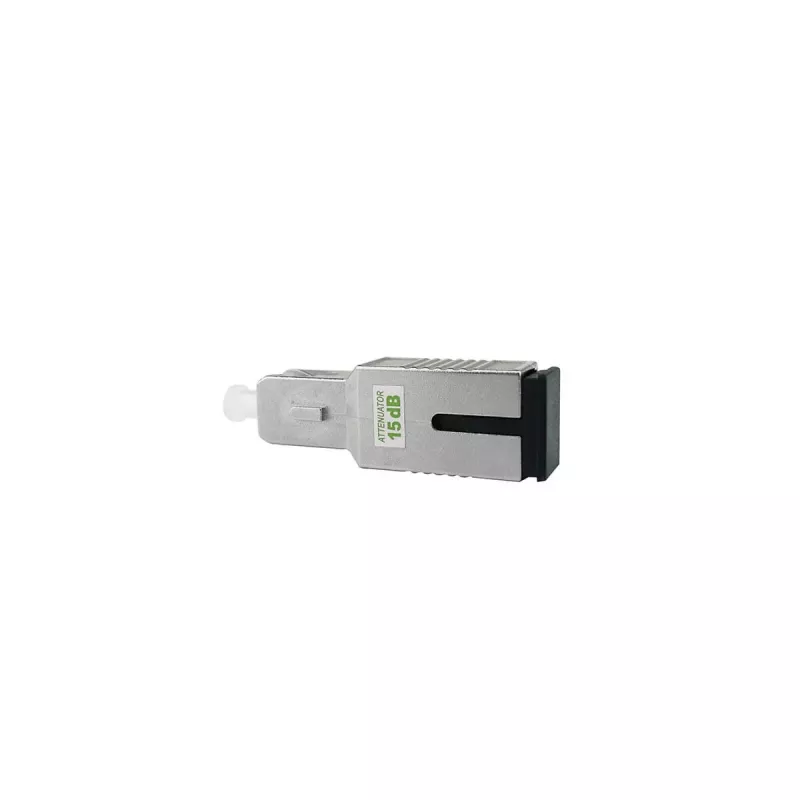

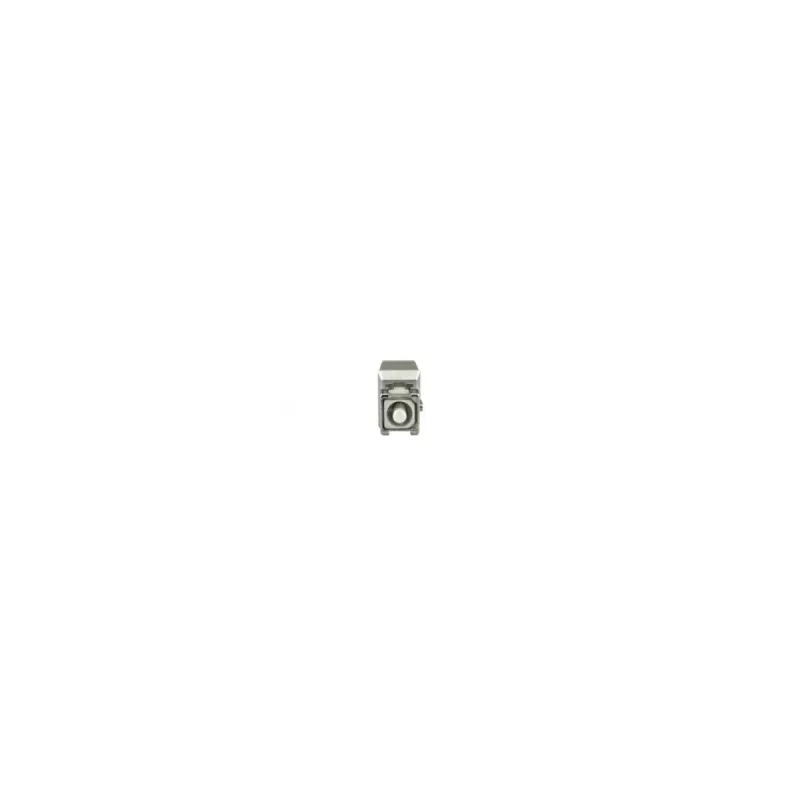

The BlueOptics SFA22BM15 is a high-quality fiber optic attenuator designed for singlemode networks. It provides a precise 15 dB attenuation to optimize signal levels in fiber optic links, ensuring reliable performance in telecommunications, CATV, FTTx, and data center applications.

Advantages

This attenuator offers excellent return loss (≥60 dB) and low polarization dependent loss (≤0.2 dB), ensuring minimal signal reflection and high signal integrity. Its durable metal alloy housing and zirconia ceramic ferrule guarantee over 1000 mating cycles, making it a long-lasting solution for network optimization.

Suitable for

• Telecommunications networks
• CATV systems
• FTTx installations
• Local Area Networks (LAN)
• Data centers

Key specifications

• Attenuation: 15 dB (±0.5 dB)
• Fiber type: Singlemode (SM)
• Connector: SC/APC, Simplex
• Wavelengths: 1310 nm / 1550 nm
• Return loss: ≥60 dB
• PDL: ≤0.2 dB
• Operating temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with matching SC/APC connectors and ensure proper cleaning before installation. This attenuator is ideal for balancing signal levels in high-density fiber networks.
