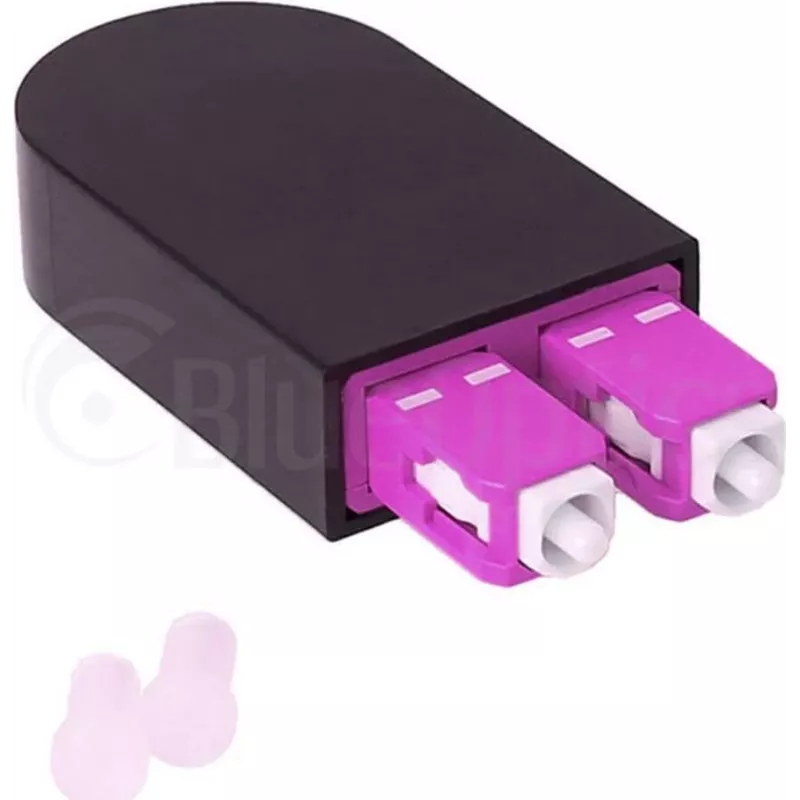

BlueOptics Loopback-adapteri SC Duplex monimuotokuitu OM4, magenta, keraaminen ferrule, -40 °C - +85 °C

The BlueOptics Loopback Adapter SC Duplex Multimode OM4 is a high-quality fiber optic testing tool designed for network professionals. It provides a reliable loopback connection for multimode OM4 fibers, enabling efficient testing, troubleshooting, and burn-in of network equipment. With its durable ceramic ferrule and wide operating temperature range, this adapter ensures consistent performance in demanding environments.

Advantages

This loopback adapter offers precise signal looping for accurate network diagnostics. Its OM4 multimode fiber support ensures compatibility with high-speed networks, while the SC/UPC duplex connector provides secure and low-loss connections. The magenta jacket allows for easy identification, and the robust construction withstands over 500 mating cycles.

Suitable for

• Network testing and troubleshooting
• Burn-in testing of optical transceivers
• Quality assurance in data centers and telecom installations

Key specifications

• Fiber Mode: Multimode OM4
• Connector Type: SC/UPC Duplex
• Ferrule Material: Ceramic
• Jacket Color: Magenta
• Operating Temperature: -40°C to +85°C
• Insertion Loss: < 0.2 dB (typical)
• Return Loss: > 50 dB (typical)
• Wavelength Compatibility: 850 nm / 1300 nm
• Mating Cycles: > 500
• Compliance: RoHS

Recommendations

For optimal performance, pair this loopback adapter with BlueOptics transceivers and patch cables. Ensure connectors are clean before each use to maintain low insertion loss.
