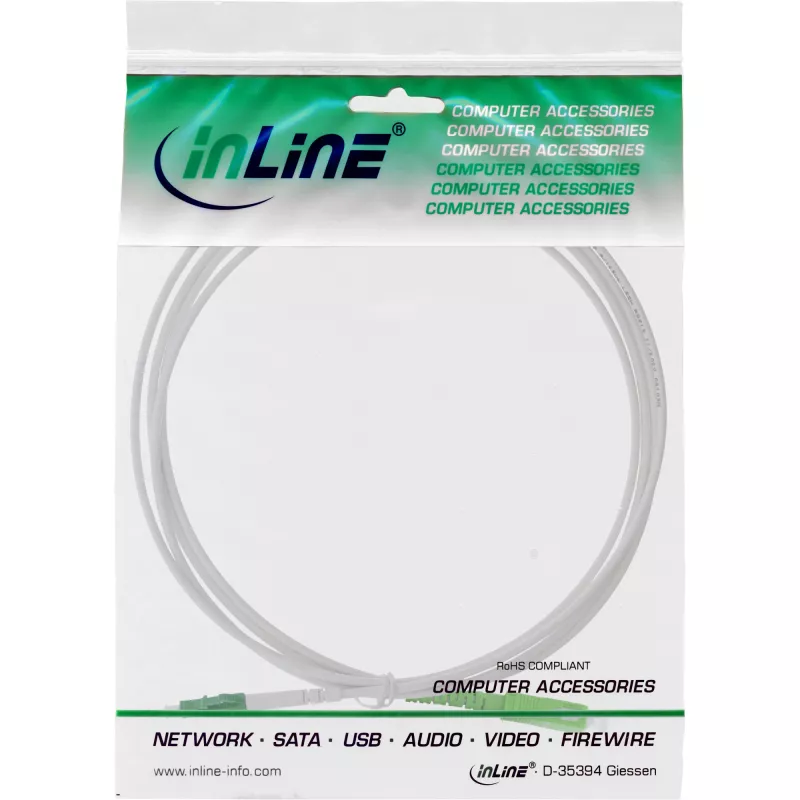

InLine kuitu-simplexkaapeli, FTTH, LC/APC8° - SC/APC8° 9/125µm OS2 0,5m

InLine kuitu-simplexkaapeli, FTTH, LC/APC8° - SC/APC8° 9/125µm OS2 0,5m
InLine kuitu-simplexkaapeli, FTTH, LC/APC8° - SC/APC8° 9/125µm OS2 0,5m
InLine kuitu-simplexkaapeli, FTTH, LC/APC8° - SC/APC8° 9/125µm OS2 0,5m
-20%
Black Week
InLine kuitu-simplexkaapeli, FTTH, LC/APC8° - SC/APC8° 9/125µm OS2 0,5m
InLine kuitu-simplexkaapeli, FTTH, LC/APC8° - SC/APC8° 9/125µm OS2 0,5m
InLine kuitu-simplexkaapeli, FTTH, LC/APC8° - SC/APC8° 9/125µm OS2 0,5m
6,50 €
8,07 €−20 %
PDF
PDF
Varasto 320 Tuotekoodi 1429509 Malli 88455 Takuu 2 vuotta

Toimitus ja palautukset

Arvioitu toimitusaika torstai 3. joulukuuta
Saat päivitykset yksityiskohtaisen seurantajärjestelmän kautta
Maksuvaihtoehdot
MaksukorttiVisaMastercardApple PayGoogle PayTilisiirto

Esitä kysymys – AI-avustaja vastaa heti.

Kuvaus

InLine fiber optical simplex cable with LC/APC 8° to SC/APC 8° connectors is a 0.5 m single-mode patch cord designed for low-loss optical interconnection. The cable uses a 9/125 µm OS2 fiber core and an armoured 3.0 mm outer jacket for improved mechanical protection compared with extremely thin provider-supplied leads. Its APC 8° polished terminations and tested insertion/return loss characteristics make it suitable for FTTH, telecom equipment links and short link assemblies where reliable single-mode transmission is required.

Advantages

The armoured construction with a stainless-steel spiral tube increases resistance to crushing and accidental damage while preserving flexibility for indoor routing. An outer sheath made from halogen-free material and a neutral white colour enable unobtrusive installation in living spaces. Factory-tested optical performance with typical insertion loss below 0.20 dB and return loss better than 60 dB ensures predictable link behaviour for installers and network operators.

Suitable for

  • FTTH connections between the optical entry point and home gateway or modem
  • Patch panels and telecom equipment interconnects in racks or cabinets
  • Laboratory and test bench short links where single-mode OS2 fiber is required
  • Replacement or upgrade of thin, unarmoured provider-supplied drop cables

Key specifications

  • Fiber type: single-mode OS2, 9/125 µm core/cladding
  • Length: 0.5 m
  • Connector A: LC/APC 8° male
  • Connector B: SC/APC 8° male
  • Connector polish: APC (angled 8°)
  • Armoured cable outer diameter: approx. 3.0 mm
  • Outer sheath: halogen-free, white
  • Typical insertion loss: <0.20 dB
  • Maximum insertion loss (specified): <0.30 dB
  • Return loss: >60 dB
  • Operating temperature range: -40 °C to +85 °C

How to use

Connect the LC/APC end to the device or adapter with an LC receptacle and the SC/APC end to the patch panel, modem or adapter with an SC receptacle, ensuring both connectors seat fully and the angled APC faces are not contaminated. Avoid sharp bends and maintain the minimum bend radius recommended for 3.0 mm armoured cables when routing. If necessary, inspect connector endfaces with a microscope and clean with approved fiber cleaning tools before insertion to achieve the stated optical performance.

Recommendations

For long-term reliability in FTTH installations, use this armoured 3.0 mm drop cable where provider-supplied 1.6 mm lines are insufficient. Store and route the cable to avoid kinks, and perform optical loss testing after installation to verify insertion and return loss meet expected values.

How to use

Connect the LC/APC end to the device or adapter with an LC receptacle and the SC/APC end to the patch panel, modem or adapter with an SC receptacle, ensuring both connectors seat fully and the angled APC faces are not contaminated. Avoid sharp bends and maintain the minimum bend radius recommended for 3.0 mm armoured cables when routing. If necessary, inspect connector endfaces with a microscope and clean with approved fiber cleaning tools before insertion to achieve the stated optical performance.

Recommendations

For long-term reliability in FTTH installations, use this armoured 3.0 mm drop cable where provider-supplied 1.6 mm lines are insufficient. Store and route the cable to avoid kinks, and perform optical loss testing after installation to verify insertion and return loss meet expected values.

Tärkeimmät ominaisuudet
  • Halogen free outer Jacket
  • Armoured Cable OD:3.0mm±0.2mm
  • flexible metal tubing one core
  • Fiber: OS2 9/125µm - single Mode
  • I-VH-2E,G.652.D
  • APC 8° Polished
  • IL<0.30dB,RL>60dB
  • IL(typical)<0.20dB
  • with test report
  • Conform IEC 610304-2 IEC60332-3-1 IEC60754-2 IEC 61754-20
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • OS2
  • 0.5 m
  • LC Male
  • SC Male
  • Connector polish type: APC
  • Single-mode
  • White

Tekniset tiedot

Tekniset tiedot
Heijastusvaimennus
60 dB
Hylsyn halkaisija
9 µm
Kaapelin halkaisija
3 mm
Kaapelin pituus
0.5 m
Käyttölämpötila (T-T)
-40 - 85 °C
Kuidun moodirakenne
Yksimuoto
Kuitutyyppi
OS2
Liitin 1
LC
Liitin 2
SC
Liittimen 1 uros/naaras
Uros
Liittimen 2 uros/naaras
Uros
Liittimen hiontatyyppi
APC
Lisäysvaimennus
0.3 dB
Mitat (LxKxS)
150 x 500 x 10 mm
Paino
12 g
Pakkauksen korkeus
1 mm
Pakkauksen leveys
150 mm
Pakkauksen paino
19 g
Pakkauksen syvyys
170 mm
Pakkauksen tilavuus
100 cm³
Säilytyslämpötila (T-T)
-40 - 85 °C
Täysduplex
No
Testipöytäkirja mukana
Kyllä
Tuotteen väri
Valkoinen
Vaipan halkaisija
125 µm
