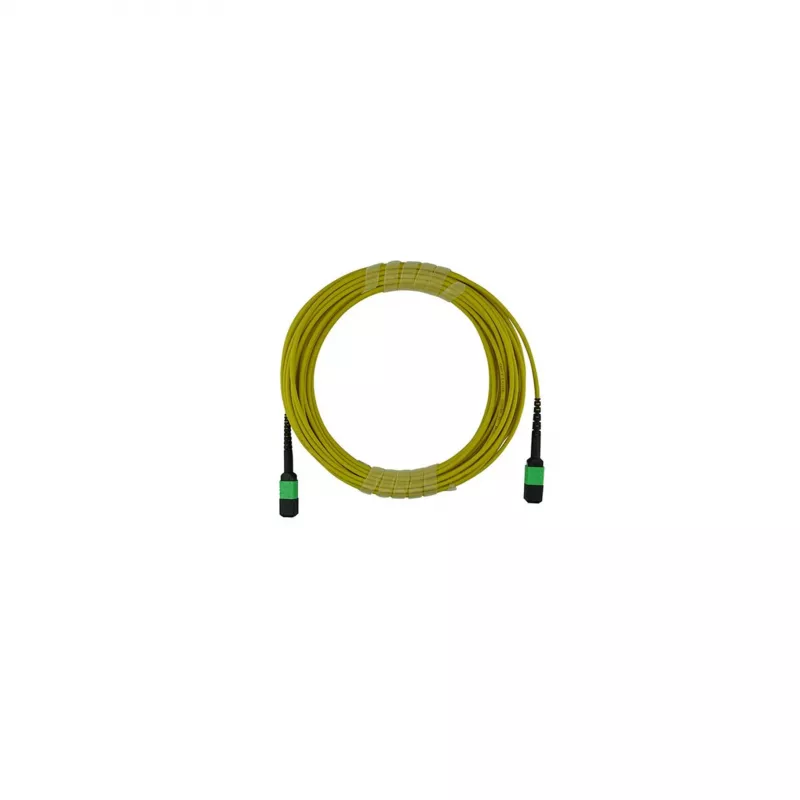

BlueOptics MFP7E30-N005 yhteensopiva MPO/APC - MPO/APC Singlemode OS2 kuitu-trunkkokaapeli, 5 metriä

The BlueOptics MFP7E30-N005 is a high-performance fibre optic trunk cable designed for compatibility with NVIDIA Mellanox MFP7E30-N005. This cable features MPO/APC connectors on both ends, providing a reliable and low-loss connection for data centre and high-speed networking applications. With a 5-metre length and single-mode OS2 fibre, it ensures excellent signal integrity over short distances.

Advantages

This trunk cable offers low insertion loss (≤0.35 dB) and high return loss (≥60 dB), ensuring minimal signal degradation. The LSZH jacket provides safety in enclosed spaces, while the 12-fibre configuration supports high-density deployments. Its ceramic ferrule and APC polish guarantee stable performance.

Suitable for

• Data centre interconnects
• High-speed Ethernet (10/25/40/100G)
• Fibre Channel
• InfiniBand networks
• NVIDIA Mellanox compatible systems

Key specifications

• Connector Type: MPO/APC (Male) to MPO/APC (Male)
• Fibre Mode: Single-Mode (OS2)
• Core/Cladding: 9/125 µm
• Fibre Count: 12
• Polarity: Type B
• Cable Length: 5 Metres
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Insertion Loss: ≤0.35 dB
• Return Loss: ≥60 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, ISO 9001

Recommendations

For optimal performance, ensure proper handling and storage of fibre optic cables. Avoid sharp bends and excessive tension. This cable is ideal for high-density patching in data centres.
