BlueOptics NDAAFF-0001-BL yhteensopiva BlueLAN DAC QSFP28 passiivinen Direct Attach -kuparikaapeli 1 m musta

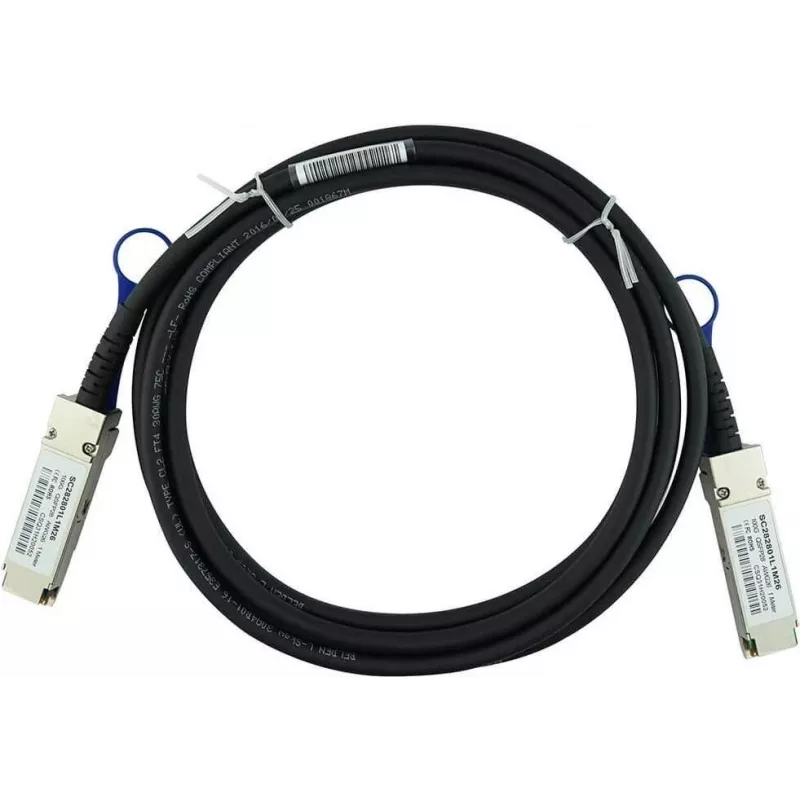

The BlueOptics NDAAFF-0001-BL is a high-performance passive Direct Attach Copper (DAC) cable designed for InfiniBand EDR and 100 Gigabit Ethernet applications. This 1-meter QSFP28 to QSFP28 cable delivers reliable 100 Gbps connectivity for high-performance computing and data center environments. Manufactured to meet or exceed OEM specifications, it ensures seamless interoperability with BlueLAN and Amphenol compatible systems.

Advantages

Cost-effective alternative to fiber optic solutions with low power consumption (<0.5W). Passive design requires no external power, reducing complexity and heat. Hot-pluggable QSFP28 connectors enable easy installation and maintenance. Durable PVC jacket and 30 AWG construction provide flexibility and long service life.

Suitable for

• High-Performance Computing (HPC) clusters
• Data center top-of-rack to server connections
• Enterprise networking with 100GbE or InfiniBand EDR
• Storage area networks requiring low latency

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Protocol Support: InfiniBand EDR, 100GBASE-CR4
• Cable Length: 1 meter (3.3 feet)
• Cable Gauge: 30 AWG
• Impedance: 100 Ohm
• Color: Black
• Jacket Material: PVC
• Operating Temperature: 0 to 70 °C
• Power Consumption: < 0.5 W
• Compliance: SFF-8665 (QSFP28 MSA)
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure both host devices support QSFP28 ports and are configured for 100 Gbps operation. This cable is ideal for short-reach interconnects within racks or adjacent racks. Always verify compatibility with your specific switch or NIC model.
