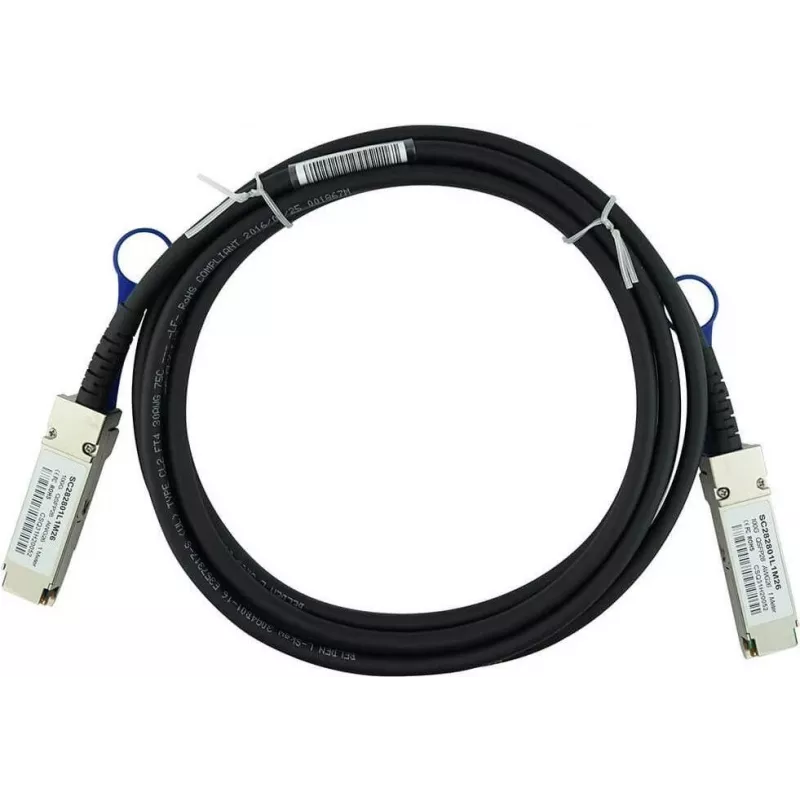

BlueOptics NDAAFG-0001-BL InfiniBand-kaapeli 1 m QSFP28 musta

The BlueOptics NDAAFG-0001-BL is a high-performance InfiniBand Direct Attach Copper (DAC) cable designed for demanding data center and high-performance computing environments. With a length of 1 meter and QSFP28 connectors on both ends, this passive cable delivers reliable 100 Gb/s data transfer at EDR speeds. Its black PVC jacket and 30 AWG copper conductors ensure durability and signal integrity.

Advantages

This cable offers a cost-effective and energy-efficient solution for short-range InfiniBand and 100GBASE-CR4 Ethernet connections. It is hot-swappable, consumes less than 0.5 W, and supports passive operation for low latency. The 100 Ohm impedance and compliance with RoHS, CE, and FCC standards guarantee compatibility and safety.

Suitable for

• InfiniBand EDR networks in data centers
• 100 Gb/s Ethernet connections (100GBASE-CR4)
• High-performance computing clusters
• Server and storage interconnects

Key specifications

• Cable Type: InfiniBand Direct Attach Copper (DAC)
• Connector Type: QSFP28 to QSFP28
• Cable Length: 1 meter
• Data Rate: 100 Gb/s
• InfiniBand Generation: EDR (Enhanced Data Rate)
• Color: Black
• Conductor Material: Copper
• Passive/Active: Passive
• AWG: 30 AWG
• Jacket Material: PVC
• Impedance: 100 Ohm
• Protocol Support: InfiniBand EDR, Ethernet 100GBASE-CR4
• Hot-Swappable: Yes
• Power Consumption: < 0.5 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, use this cable with compatible QSFP28 ports on switches, servers, and storage devices. Ensure proper handling to avoid damage to connectors.
