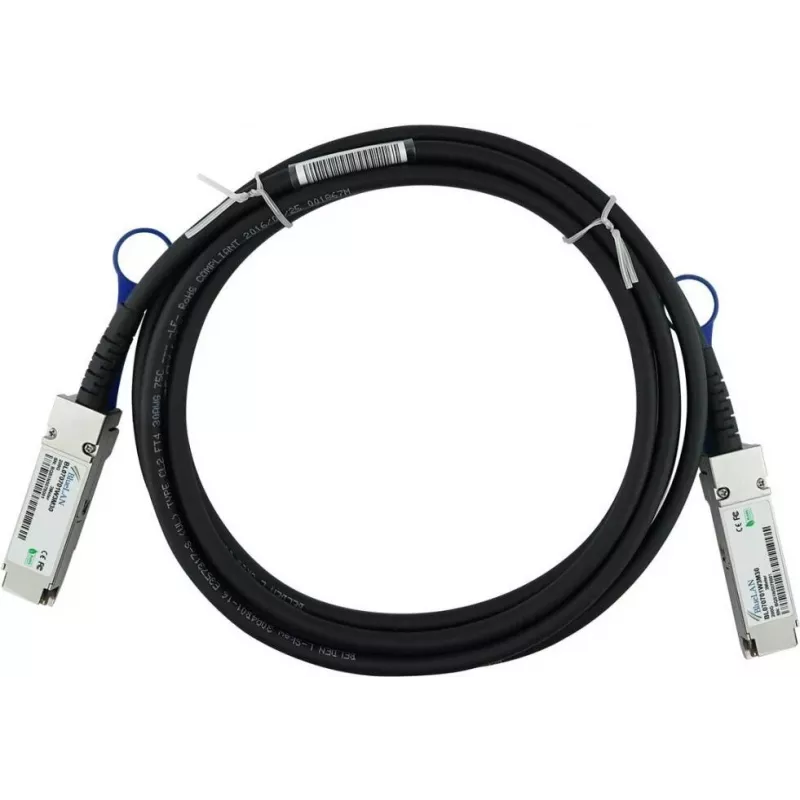

BlueOptics P06149-B23-BL InfiniBand-kaapeli 2 m QSFP56 musta (P06149-B23-BL)

The BlueOptics P06149-B23-BL is a high-performance InfiniBand HDR (High Data Rate) Direct Attach Copper (DAC) cable designed for demanding data center and high-performance computing (HPC) environments. With a length of 2 meters and QSFP56 connectors on both ends, this passive twinax cable delivers 200 Gbps data transfer rates while maintaining low power consumption (0W). Its black PVC jacket and gold-plated connectors ensure durability and reliable signal integrity.

Advantages

This cable offers a cost-effective and energy-efficient solution for short-range InfiniBand interconnects. The passive DAC design eliminates the need for external power, reducing overall system power consumption. It is hot-swappable and compliant with IBTA standards, ensuring seamless integration with existing InfiniBand infrastructure. The robust construction with PVC jacket and gold-plated connectors provides long-lasting performance in high-density environments.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• InfiniBand HDR (200 Gbps) applications

Key specifications

• Cable Type: InfiniBand HDR (200 Gbps)
• Connector Type: QSFP56 to QSFP56
• Cable Length: 2 m
• Data Rate: 200 Gbps
• Cable Technology: Direct Attach Copper (DAC), Passive
• Color: Black
• Jacket Material: PVC
• Connector Plating: Gold
• Impedance: 100 Ohm
• Operating Temperature: 0 - 70 °C
• Storage Temperature: -40 - 85 °C
• Compliance: IBTA, RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both network devices support QSFP56 and InfiniBand HDR. This cable is ideal for rack-to-rack or server-to-switch connections within the same data center row.
