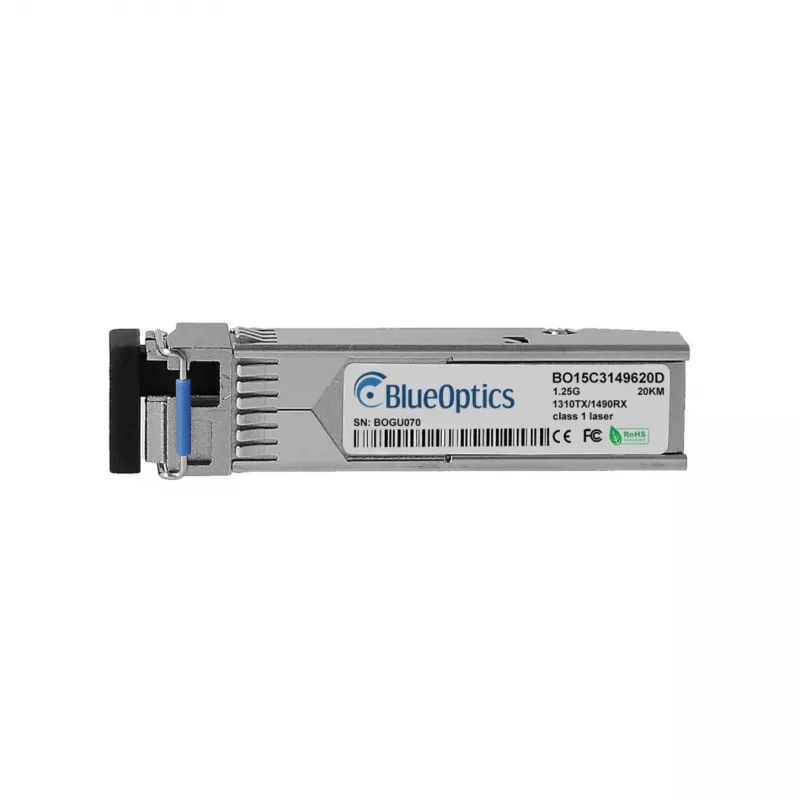

BlueOptics SFP-moduuli, yhteensopiva Ruckus E1MG-BXU-TA (BO15C3149620D)

The BlueOptics BO15C3149620D is a high-performance SFP transceiver module designed for compatibility with Ruckus E1MG-BXU-TA equipment. This module delivers reliable 1.25 Gbps data transmission over single-mode fiber at distances up to 20 km, making it ideal for enterprise and service provider networks.

Advantages

Cost-effective alternative to OEM modules with full MSA compliance. Supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Hot-pluggable design ensures easy installation and minimal network downtime.

Suitable for

• Ruckus E1MG-BXU-TA compatible switches and routers
• 1000BASE-BXU uplinks in FTTH and access networks
• Point-to-point single-mode fiber connections up to 20 km

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: Tx 1310 nm / Rx 1490 nm
• Fiber Type: Single-Mode (OS2)
• Max Distance: 20 km
• Connector: LC Simplex
• DDM/DOM: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS2) and ensure compatibility with your Ruckus device. This module is a direct replacement for the Ruckus E1MG-BXU-TA.
