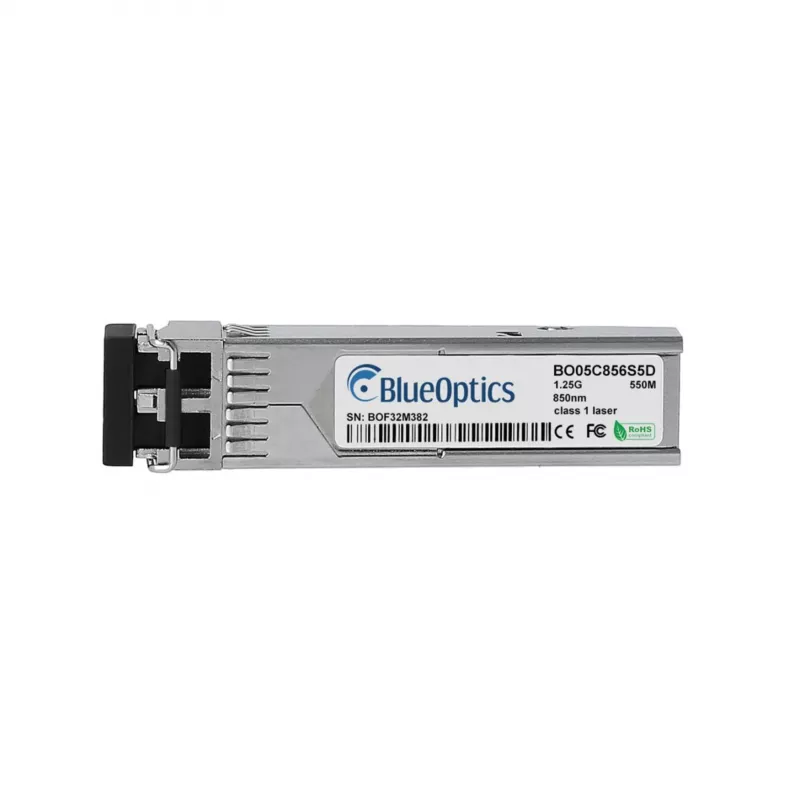

BLUEOPTICS TL-SM311LM-BO SFP lähetin-vastaanotinmoduuli 1,25 Gbit/s 850 nm 550 m LC Multimode

The BLUEOPTICS TL-SM311LM-BO is a high-performance SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet applications. It is fully compatible with TP-Link SFP-compatible devices and MSA compliant, ensuring seamless integration into existing network infrastructures. This module supports multi-mode fiber (MMF) cabling and operates at a wavelength of 850 nm, delivering reliable data transmission over distances up to 550 meters.

Advantages

This transceiver module offers hot-pluggable capability, allowing for easy installation and replacement without disrupting network operations. It features Digital Diagnostic Monitoring (DDM) for real-time performance monitoring, ensuring optimal network reliability. The VCSEL laser technology provides efficient and stable optical output, while the compact SFP form factor saves valuable space in network switches and routers.

Suitable for

• Gigabit Ethernet connections in enterprise networks
• Data center interconnects over multi-mode fiber
• Telecommunications and broadband access networks
• Industrial and commercial networking environments

Key specifications

• Module Type: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps
• Wavelength: 850 nm
• Max Transfer Distance: 550 m (1804 ft) over multi-mode fiber
• Connector Type: LC Duplex
• Fiber Type: Multi-Mode (MMF)
• Standards Compliance: IEEE 802.3z
• Hot-Swappable: Yes
• Digital Diagnostic Monitoring (DDM): Yes (DOM)
• Power Supply: 3.3V
• Laser Type: VCSEL
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 10% to 90% non-condensing

Recommendations

For optimal performance, pair this transceiver with high-quality LC duplex patch cables and ensure proper fiber cleaning before installation. Compatible with TP-Link switches and routers that support SFP modules, as well as any MSA-compliant SFP slot.
