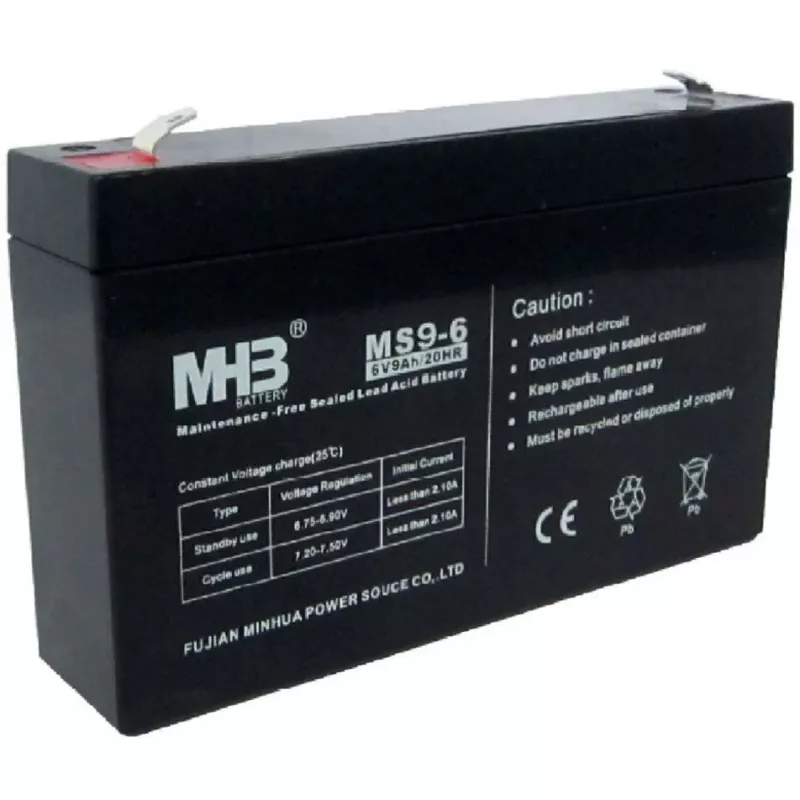

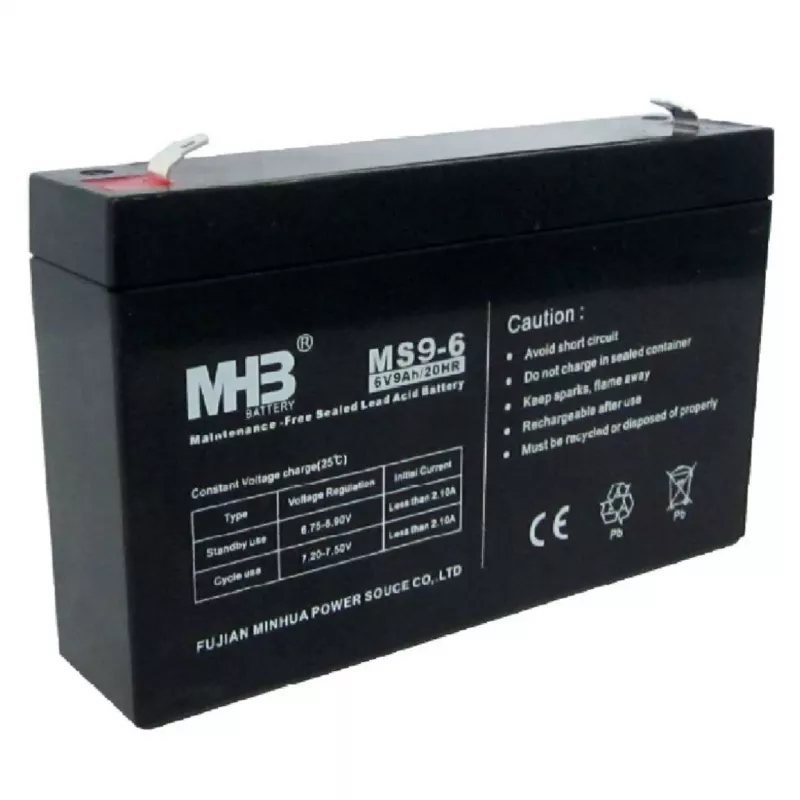

PowerWalker akku MHB MS9-6 6V 9Ah sinetöity lyijy-happoakku UPS-järjestelmiin

Sealed lead-acid battery with AGM technology delivering dependable 6V 9Ah backup power for UPS systems, alarm panels, emergency lighting, and medical equipment. This VRLA battery ensures leak-proof operation in any orientation and provides a long service life of 3-5 years.

Advantages

Absorbent Glass Mat (AGM) technology immobilizes the electrolyte, preventing leakage and allowing safe installation in any position. The battery maintains a low self-discharge rate of less than 3% per month at 25°C, ensuring readiness when needed. F1 (T1) terminals offer a secure, standard connection for easy replacement.

Suitable for

• Uninterruptible Power Supplies (UPS)
• Alarm and security systems
• Emergency lighting
• Medical equipment
• Other 6V standby power applications

Key specifications

• Nominal voltage: 6V
• Nominal capacity: 9Ah (20-hour rate to 1.75V/cell)
• Battery technology: Sealed Lead-Acid (SLA), VRLA, AGM
• Terminal type: F1 (T1) – 4.75mm wide spade
• Max discharge current: 90A (5 sec)
• Internal resistance: approx. 10-15 mΩ
• Operating temperature (discharge): -15°C to 50°C
• Operating temperature (charge): -15°C to 40°C
• Optimal operating temperature: 25°C
• Case material: ABS
• Rechargeable: Yes
• Height including terminals: 100 mm

Recommendations

For optimal performance and longevity, charge the battery at a temperature between 20°C and 25°C and avoid deep discharges. Regularly inspect terminals for corrosion and ensure proper ventilation in the installation area.
