BNC-pistoke puristettava DeLOCK 90024 LMR 400 kutistesukalla

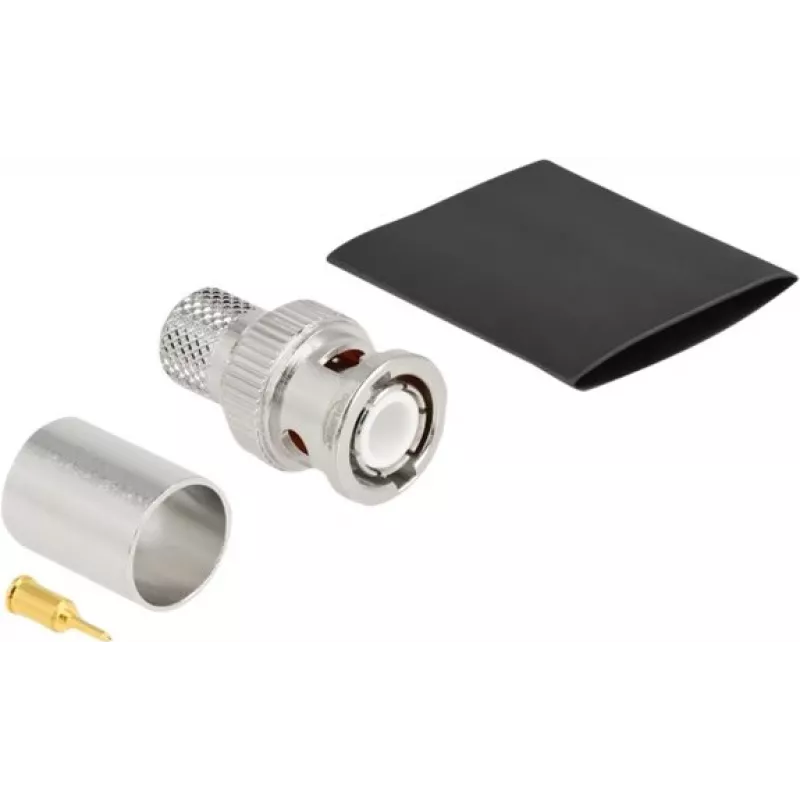

The DeLOCK BNC plug for crimping LMR 400 cables includes a matching shrink tube and is designed for connecting radio frequency components. It is a male BNC connector with nickel-plated contacts and a compact metal housing finished in silver. The connector dimensions are approximately 14.5 mm (width), 14.5 mm (height) and 24 mm (depth). Each pack contains 5 pieces.

Advantages

The connector provides a secure crimp connection for LMR 400 coaxial cable and the included shrink tube improves strain relief and environmental protection. Nickel-plated contacts resist corrosion and ensure consistent signal transmission. Its compact metal housing simplifies handling and installation in confined spaces.

Suitable for

Key specifications

How to use

Prepare the LMR 400 cable by stripping the outer jacket, braid and dielectric to the correct lengths for crimp termination. Insert the crimp ferrule and centre contact, then position the connector body and apply a suitable crimping tool to secure the ferrule. Slide the included shrink tube over the connection and apply heat to achieve shrinkage for strain relief and improved sealing. Verify the mechanical integrity and correct electrical contact after assembly.

Recommendations

Use a crimping tool and dies matched to LMR 400 specifications and check connector assembly with continuity and RF tests before putting the cable into service.
