BOE näyttö 15,6" 1920x1080 60Hz mattapintainen 30-pin oikea IPS

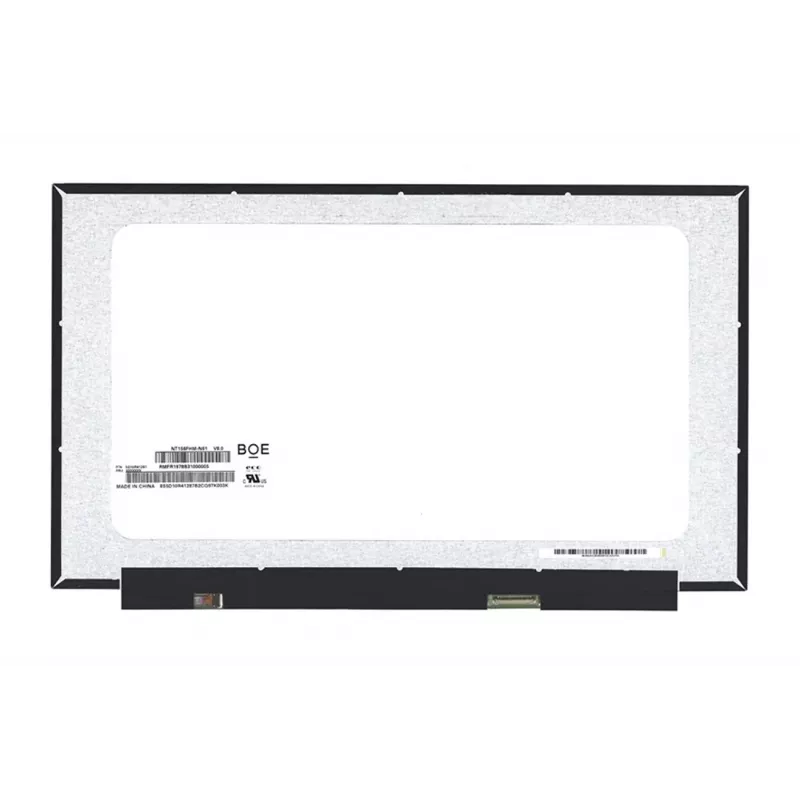

When a laptop screen cracks or dims, a replacement panel that doesn't match the original connector position or finish can turn a simple repair into a frustrating guessing game. The BOE LC302413 removes that uncertainty: it's a 15.6-inch Full HD IPS panel built for laptops that use a 30-pin eDP connection on the right side, with a matte surface that keeps reflections out of your workspace.

Who is it for

This panel suits technicians and DIY upgraders replacing a faulty 15.6-inch screen in compatible notebooks. It's also a practical choice for anyone building a portable monitor or custom display project that requires a standard 30-pin eDP interface.

Main features

• 15.6-inch IPS panel with 1920 x 1080 resolution and 60 Hz refresh rate
• Matte anti-glare finish reduces reflections and fingerprints
• 30-pin eDP connector positioned on the right side (viewed from the back)
• Wide 178° horizontal and vertical viewing angles
• LED backlight for consistent brightness and low power draw

Specifications

• Display size: 15.6 inches
• Resolution: 1920 x 1080 (Full HD)
• Refresh rate: 60 Hz
• Panel technology: IPS
• Surface finish: Matte
• Connector type: 30-pin eDP
• Connector position: Right
• Aspect ratio: 16:9
• Backlight: LED
• Viewing angle: 178° / 178°

Tips

Before ordering, confirm your laptop's screen size, resolution, connector pin count, and connector side. The 30-pin eDP interface is common but not universal—check the original panel's part number if possible. Handle the panel by its edges and avoid touching the connector pins to prevent static damage.
