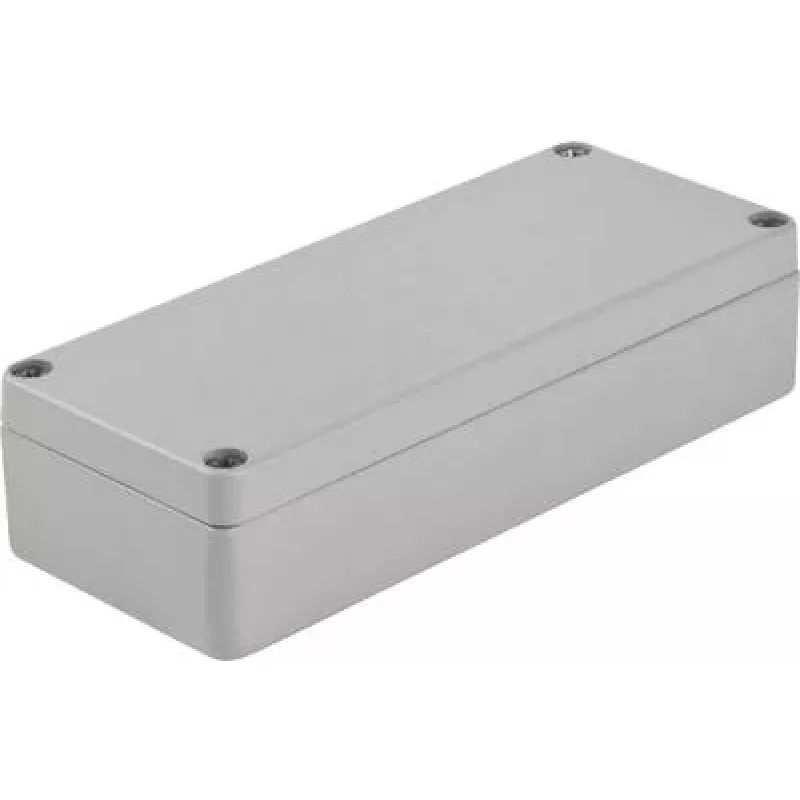

BOPLA Alu-Top yleiskotelo, alumiini, hopeanharmaa (RAL 7001), 150 x 64 x 34 mm 01103000.MT1

Protect your sensitive electronics from dust, moisture, and mechanical impact with a robust aluminium enclosure. The BOPLA Alu-Top Universal Enclosure provides a durable housing for PCBs and components in industrial automation, measurement technology, and control systems. Its powder-coated silver-grey finish (RAL 7001) offers corrosion resistance and a professional appearance, while the IP65 protection class ensures reliable operation in harsh environments.

Who is it for

Engineers, system integrators, and electronics manufacturers who need a reliable, ready-to-use enclosure for custom electronic assemblies. Ideal for wall or desktop mounting in factories, laboratories, and outdoor installations where protection against dust and water jets is required.

Main features

• Precision-machined aluminium body with powder-coated silver-grey finish (RAL 7001)
• IP65 protection against dust and low-pressure water jets
• External dimensions: 150 mm length, 64 mm width, 34 mm height
• Internal guide grooves for easy PCB mounting
• Neoprene seal and stainless steel lid screws for secure closure
• Impact resistance IK08 for demanding environments
• Operating temperature range: -40°C to +100°C

Specifications

• Product type: Universal Enclosure
• Enclosure series: Alu-Top
• Material: Aluminium
• Colour: Silver-Grey (RAL 7001)
• External dimensions (L x W x H): 150 x 64 x 34 mm
• Protection class: IP65
• Impact resistance: IK08
• Lid fastening: Stainless steel screws
• Seal material: Neoprene
• Surface treatment: Powder-coated
• Mounting type: Wall/Desktop
• Operating temperature range: -40°C to +100°C
• Internal mounting features: Guide grooves for PCBs
• Number of components: 4 (enclosure body, lid, seal, lid screws)

Tips

For best sealing performance, ensure the neoprene gasket is clean and properly seated before tightening the lid screws. When mounting outdoors, consider additional UV protection for the powder-coated surface to maintain appearance over time.
