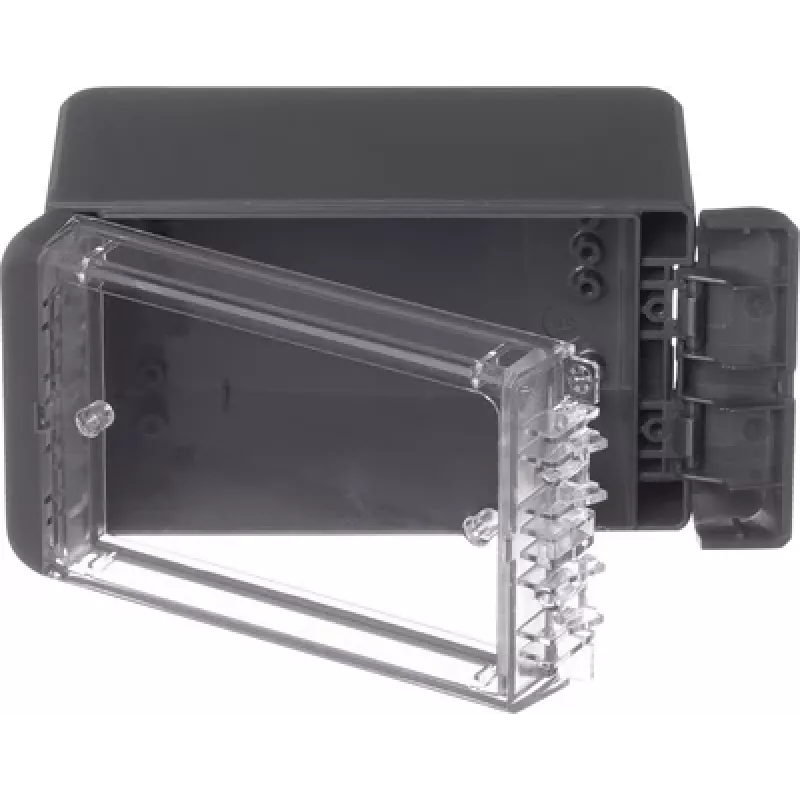

BOPLA B 140806 PC-V0-G 7024 seinäkotelo, polykarbonaatti, grafiitinharmaa (RAL 7024), 151 x 80 x 60 mm, IP65, UL 94 V-0

Wall-mount enclosure made of polycarbonate in graphite grey (RAL 7024). The B 140806 PC-V0-G 7024 offers a robust, UV-resistant housing for industrial electronics and control systems, with a UL 94 V-0 flammability rating and IP65 protection.

Advantages

Polycarbonate construction provides high impact resistance (IK07) and good chemical resistance to oils, greases, alcohols, and weak acids/bases. The fully insulated design (Protection Class II) enhances electrical safety. A recessed lid area accommodates membrane keypads or labels, and integrated mounting bosses simplify PCB or mounting plate installation.

Suitable for

• Industrial electronics
• Control systems
• Measurement technology

Key specifications

• External dimensions: 151 x 80 x 60 mm
• Material: Polycarbonate (PC)
• Colour: Graphite grey (RAL 7024)
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Impact resistance: IK07
• Operating temperature: -40 to +100 °C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting: Wall mounting via integrated screw channels

Recommendations

Ideal for harsh industrial environments where durability, UV resistance, and electrical insulation are required.
