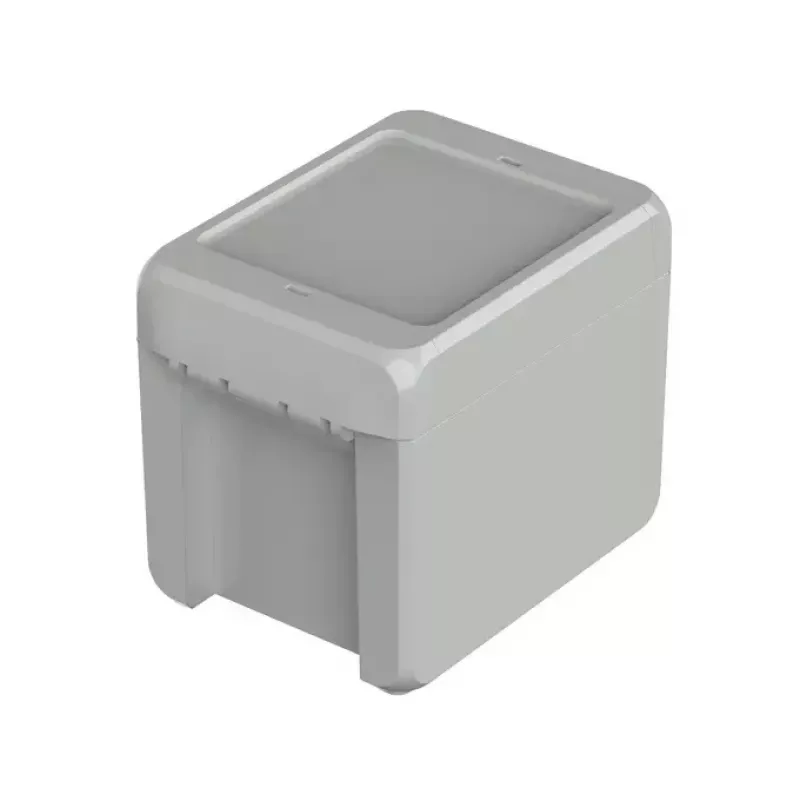

BOPLA Bocube seinäkotelo, polykarbonaatti, vaaleanharmaa RAL 7035, 80 x 113 x 90 mm 96012135

IP66/IP67-rated polycarbonate enclosure with hinged lid and IK08 impact resistance, ideal for demanding industrial installations.

Overview

The BOPLA 96012135 is a wall-mount enclosure from the Bocube series, designed for universal installation applications. Constructed from light grey (RAL 7035) polycarbonate, it provides robust protection for electrical and electronic components. The enclosure features a hinged lid secured by four screws, ensuring easy access while maintaining a tight seal.

What stands out

• High protection class: IP66/IP67, suitable for harsh environments.
• Impact resistance: IK08, offering durability against mechanical stress.
• Material: Halogen-free polycarbonate with UV resistance and good chemical resistance.
• Temperature range: -35°C to +80°C, suitable for a wide range of operating conditions.
• Integrated mounting bosses for PCBs or mounting plates, simplifying installation.

Technical details

• External dimensions: 80 mm (W) x 113 mm (L) x 90 mm (H).
• Material: Polycarbonate (PC).
• Colour: Light grey (RAL 7035).
• Protection class: IP66 / IP67.
• Flammability rating: UL 94 V-0.
• Mounting type: Wall mount.
• Lid type: Hinged lid with 4 screws.
• Gasket material: Polyurethane (PU) foam.
• Operating temperature: -35°C to +80°C.
• Impact resistance: IK08.
• Series: Bocube.

Our verdict

A reliable, high-protection enclosure for industrial electronics, combining durability, chemical resistance, and ease of installation.
