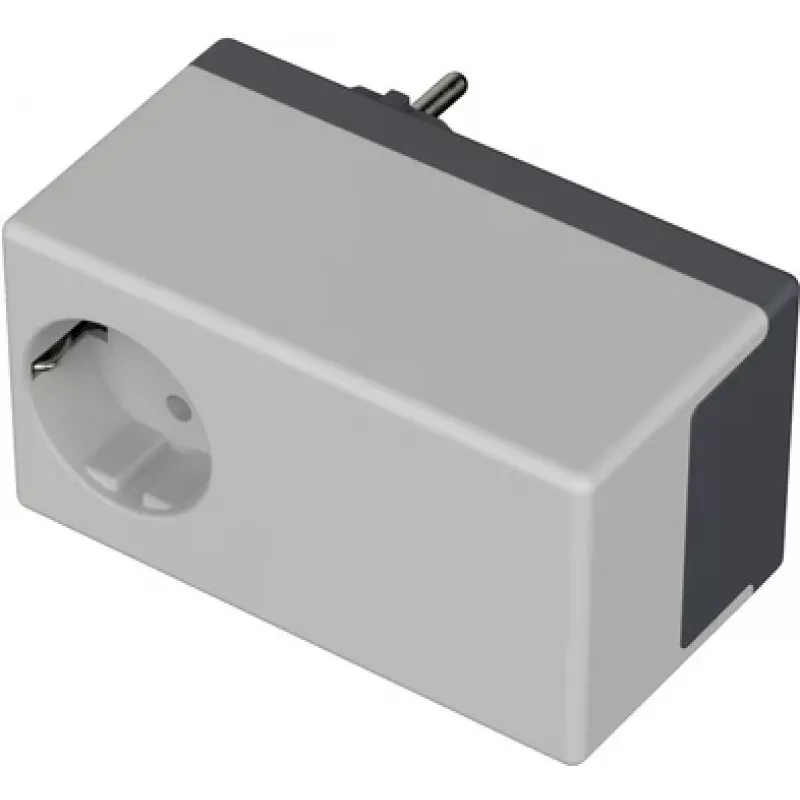

Bopla CombiNorm-Connect pistokekotelo 120 x 65 x 66 mm ABS vaaleanharmaa IP40 43435504

Engineered from UL 94 V-0 rated ABS, this plug housing delivers a 120 x 65 x 66 mm enclosure with integrated PCB guide grooves and screw bosses for secure component mounting.

Overview

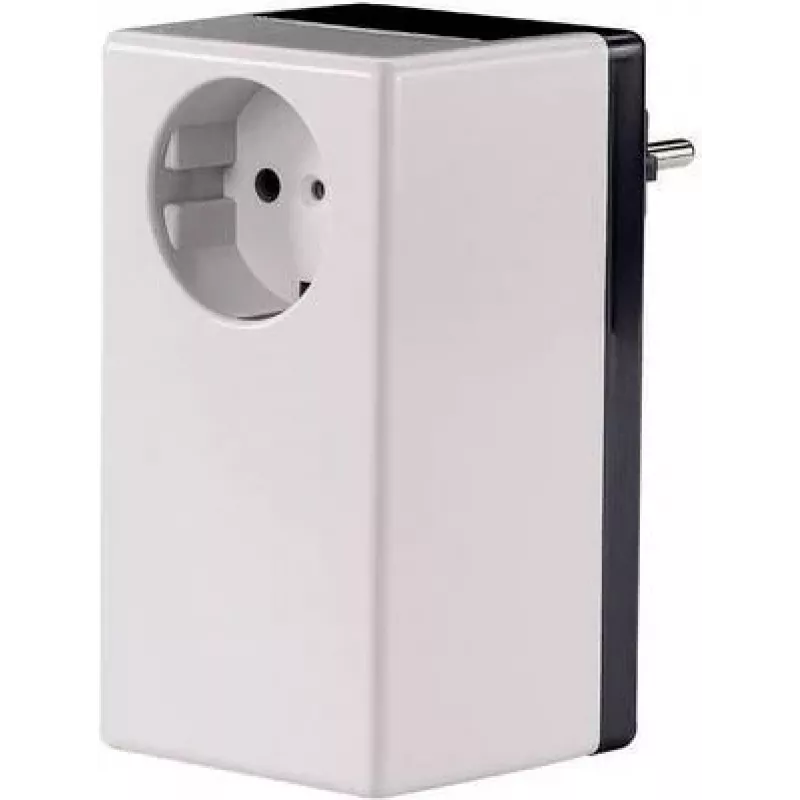

The Bopla CombiNorm-Connect plug housing provides a robust, light grey (RAL 7035) enclosure for electronic and electrical connections. Its two-part design—base and lid—features a screwed lid fastening for reliable closure. The housing is RoHS compliant and operates across a wide temperature range from -40 °C to +80 °C.

What stands out

• UL 94 V-0 flammability rating for enhanced safety
• Integrated PCB guide grooves and screw bosses simplify assembly
• IP40 protection class guards against solid objects over 1 mm
• Smooth surface finish for a professional appearance

Technical details

• Product type: Plug housing
• Series: CombiNorm-Connect
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions: 120 mm (L) x 65 mm (W) x 66 mm (H)
• Protection class: IP40
• Flammability rating: UL 94 V-0
• Operating temperature: -40 °C to +80 °C
• Lid fastening: Screwed
• Number of parts: 2 (base and lid)
• RoHS compliant: Yes

Our verdict

A dependable plug housing for industrial and electronics applications, offering a balance of size, material quality, and mounting convenience.
