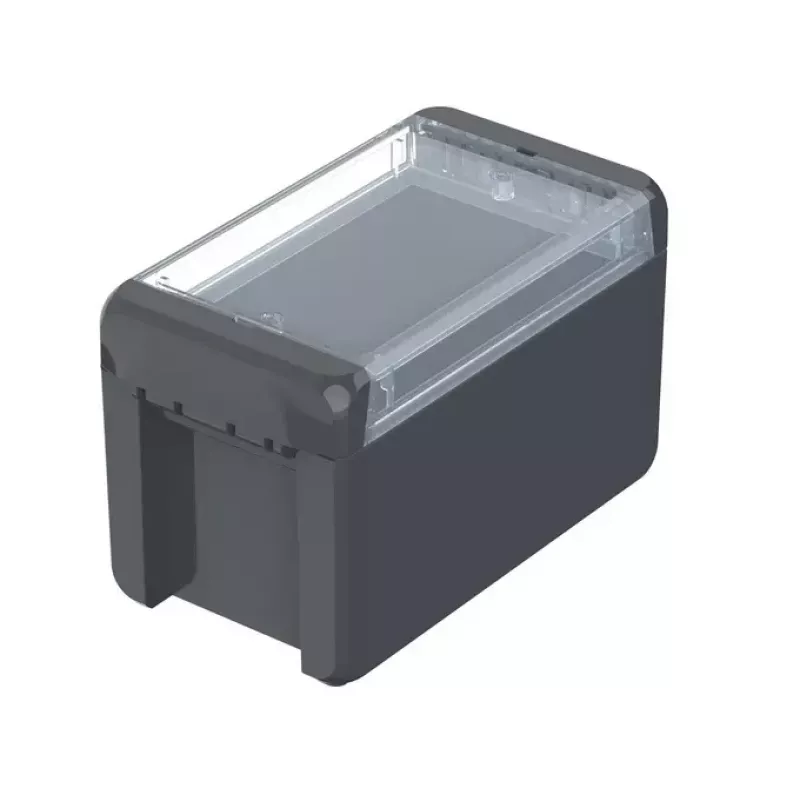

BOPLA CombiNorm-Connect seinäkotelo, polykarbonaatti, grafiitinharmaa (RAL 7024), 151 x 90 x 80 mm 96023134

Electrical and electronic installations in industrial environments often require a robust housing that protects sensitive components from dust, moisture, and mechanical impact. The BOPLA CombiNorm-Connect wall-mount enclosure provides a secure, IP65-rated solution for mounting PCBs, DIN rail components, or other electronics in challenging conditions.

Who is it for

This enclosure is intended for system integrators, panel builders, and maintenance engineers who need a dependable, flame-retardant housing for control electronics, connection boxes, or small automation devices. Its graphite grey finish (RAL 7024) suits both functional and aesthetically conscious installations.

Main features

• Wall-mounted design with internal screw channels for easy installation
• Made from polycarbonate (PC) with UL 94 V-0 flammability rating
• IP65 protection against dust and water jets
• Impact resistance rated IK08
• Operating temperature range from -40 °C to +100 °C
• Polyurethane (PUR) gasket for reliable sealing
• Lid secured with stainless steel screws
• Internal mounting bosses for PCBs or DIN rails

Specifications

• External dimensions (L x W x H): 151 x 90 x 80 mm
• Material: Polycarbonate (PC)
• Colour: Graphite grey (RAL 7024)
• Series: CombiNorm-Connect
• Enclosure type: Wall-mount enclosure

Tips

When selecting a location, ensure the mounting surface is flat and capable of supporting the enclosure and its contents. For outdoor use, consider additional UV protection if prolonged sun exposure is expected, as polycarbonate can discolour over time.
