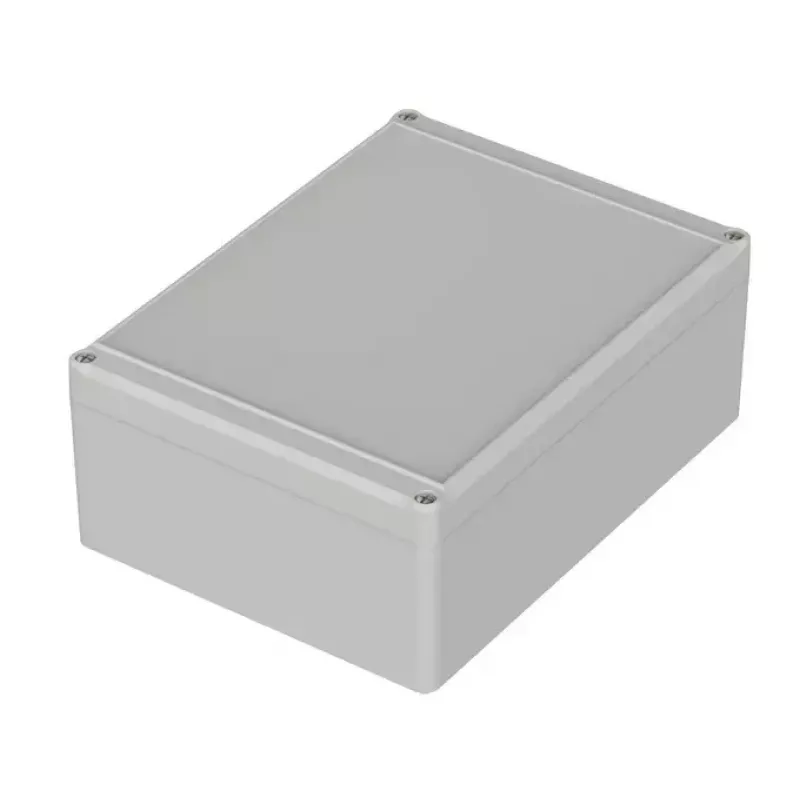

Bopla EUROMAS ET 223 F yleiskotelo 200 x 150 x 77 mm ABS vaaleanharmaa 63223200

Protect sensitive electronics from dust, moisture, and mechanical impact with the Bopla EUROMAS ET 223 F universal enclosure. Its robust ABS construction and IP65-rated seal provide a reliable housing for industrial control systems, IoT devices, and custom electronics.

Who is it for

Engineers, system integrators, and electronics enthusiasts who need a durable, ready-to-use enclosure for DIN-rail or wall-mounted applications in demanding environments.

Main features

• High-quality ABS body in light grey (RAL 7035) for excellent impact resistance and chemical stability
• IP65 protection against dust and water jets, with a polyurethane gasket ensuring a tight seal
• Screw-on lid with stainless steel (V2A) screws for secure closure and corrosion resistance
• Integrated mounting bosses for PCBs or mounting plates, plus external screw channels for wall mounting without compromising the seal
• Wide operating temperature range from -40°C to +80°C, suitable for harsh environments
• Flammability rating UL 94 HB for added safety

Specifications

• Series: EUROMAS
• Model: ET 223 F
• External dimensions (L x W x H): 200 x 150 x 77 mm
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 HB
• Operating temperature range: -40 to +80 °C
• Lid fastening: Screw-on lid with stainless steel (V2A) screws
• Gasket material: Polyurethane (PUR)
• Internal mounting: Integrated mounting bosses for PCBs/mounting plates
• Wall mounting: Yes, via screw channels outside the sealed area
• Number of components: 2 (base, lid)
• Surface finish: Smooth

Tips

For optimal sealing, ensure the gasket is clean and properly seated before tightening the lid screws. Use the external screw channels for wall mounting to maintain the enclosure's IP65 rating.
