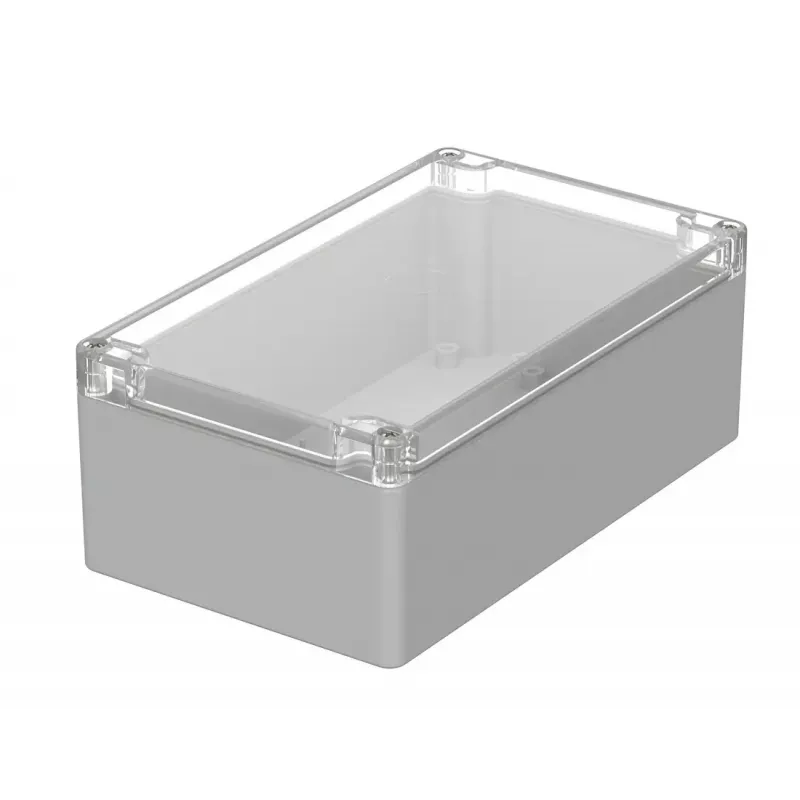

Bopla EUROMAS M 221 G yleiskotelo 200 x 120 x 75 mm polykarbonaatti vaaleanharmaa 02221100

Protecting sensitive electronics in industrial environments demands a housing that withstands dust, moisture, and mechanical impact. The Bopla EUROMAS M 221 G universal enclosure provides a robust solution with its polycarbonate construction and secure sealing.

Who is it for

Engineers and technicians who need a reliable, wall-mountable enclosure for control systems, junction boxes, or custom electronics in demanding conditions.

Main features

• Polycarbonate body in light grey (RAL 7035) offers high impact resistance and good UV stability.
• External dimensions 200 x 120 x 75 mm provide ample space for components.
• Captive stainless steel lid screws ensure quick, secure closure without losing fasteners.
• Polyurethane foam gasket maintains a tight seal against dust and water.
• Integrated mounting bosses simplify internal component installation.
• Halogen-free material meets strict environmental requirements.

Specifications

• Material: Polycarbonate
• Colour: Light Grey (RAL 7035)
• External dimensions (L x W x H): 200 x 120 x 75 mm
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40 to +80 °C
• Flammability rating: UL 94 V-2
• Lid fastening: Stainless steel screws (captive)
• Gasket material: Polyurethane (PU) foam
• Mounting type: Wall mountable / screw mounting
• Internal mounting: Integrated mounting bosses
• Halogen-free: Yes
• UV resistance: Good
• RoHS compliant: Yes
• Series: EUROMAS M

Tips

Pair with a compatible cable gland or pressure compensation element to maintain the IP65 rating when routing cables into the enclosure.
