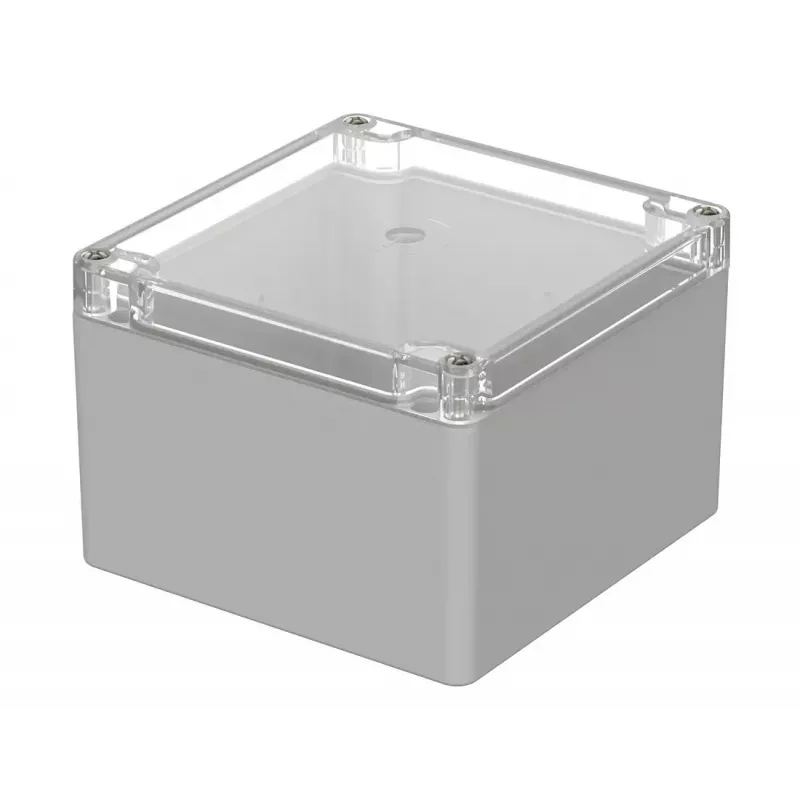

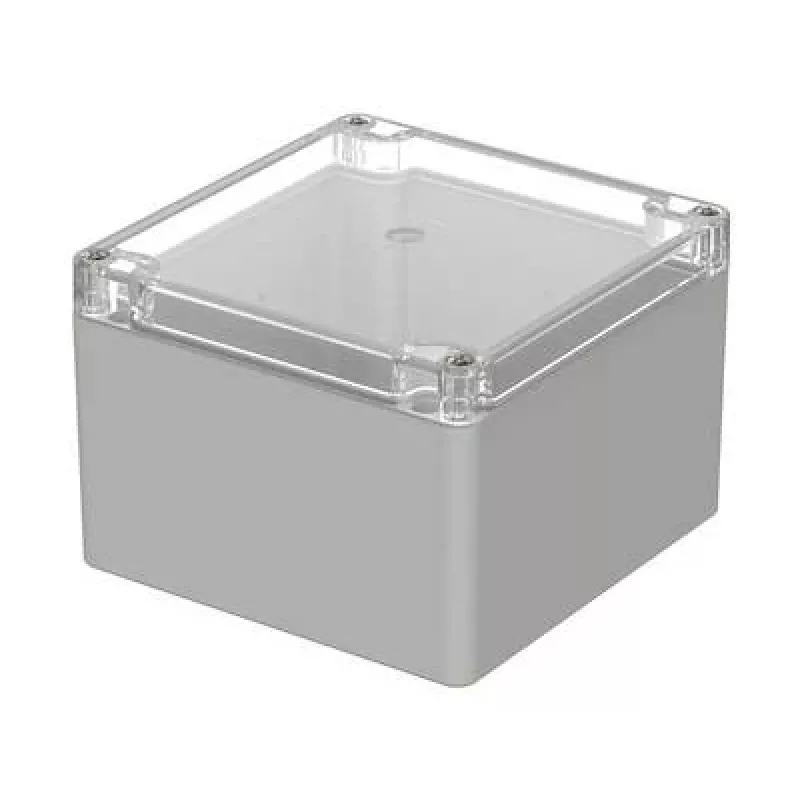

Bopla EUROMAS M 227 G yleiskotelo 122 x 120 x 85 mm polykarbonaatti vaaleanharmaa 02227100

Protecting sensitive electronics in harsh environments requires a robust housing that seals out dust and moisture. The Bopla EUROMAS M 227 G universal enclosure provides a secure, IP65-rated shell for your control systems, sensors, or communication devices.

Who is it for

Engineers and system integrators who need a reliable, off-the-shelf enclosure for indoor or outdoor applications. It suits industrial automation, IoT gateways, and custom electronics where space is limited but protection is critical.

Main features

• Made from light grey polycarbonate (RAL 7035) for high impact resistance and UV stability.
• External dimensions: 122 mm length, 120 mm width, 85 mm height – compact yet spacious for PCBs and wiring.
• IP65 protection class: completely dust-tight and protected against water jets.
• Lid secured with stainless steel screws and a polyurethane foam gasket for a reliable seal.
• Internal mounting bosses allow easy installation of PCBs or mounting plates.
• Halogen-free and RoHS compliant, suitable for environmentally conscious projects.

Specifications

• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 122 x 120 x 85 mm
• Protection class: IP65
• Temperature range: -40°C to +80°C
• Flammability rating: UL 94 V-2
• Impact resistance: IK08
• UV resistance: Yes
• Halogen-free: Yes
• Certifications: RoHS

Tips

For outdoor installations, ensure cable glands are properly tightened to maintain the IP65 rating. Use the internal bosses to secure your PCB with standoffs, leaving space for connectors on the side walls.
