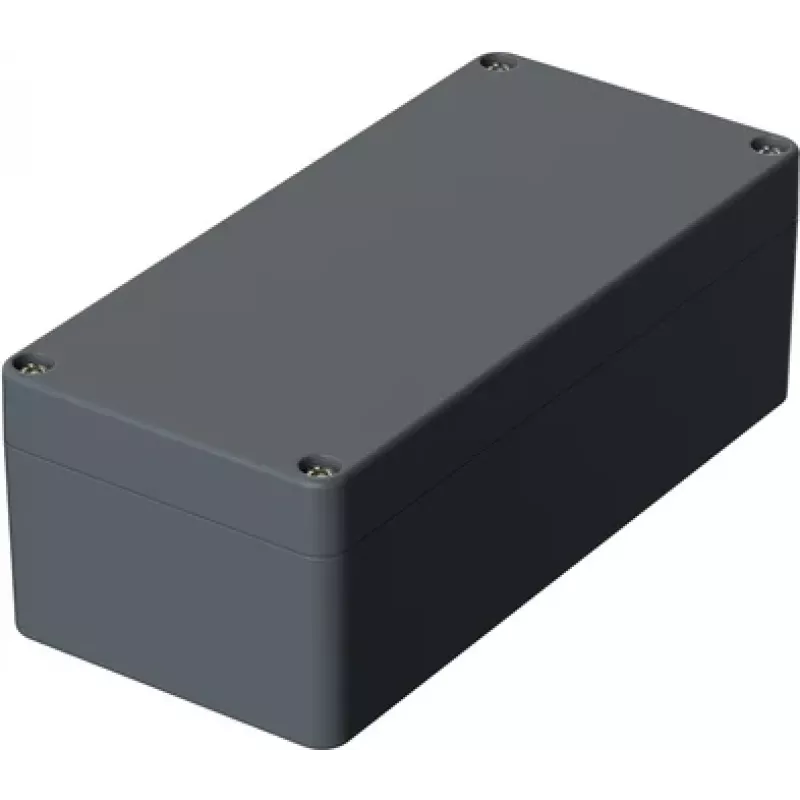

Bopla EUROMAS P 316 yleiskotelo 160 x 75 x 56,5 mm polyesteri hopeanharmaa RAL 7001 04316000.H

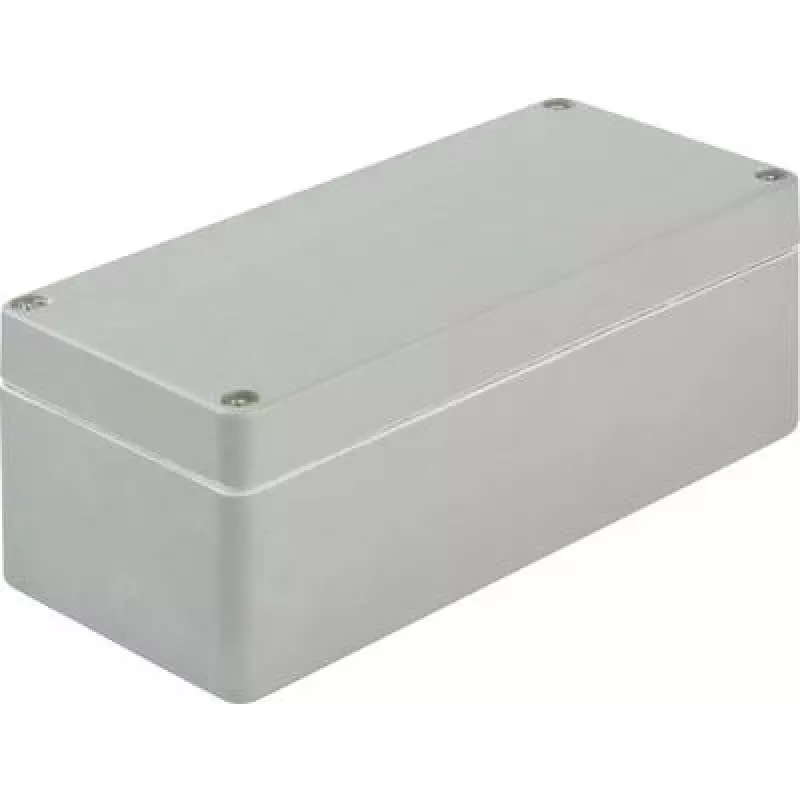

The Bopla EUROMAS P 316 universal enclosure offers a robust polyester housing with dimensions of 160 x 75 x 56.5 mm, finished in silver-grey (RAL 7001).

Overview

This enclosure is designed for a wide range of industrial and electronic applications. It features a solid lid secured with stainless steel screws and a polyurethane gasket, providing reliable protection for internal components.

What stands out

• Durable polyester construction with UV resistance
• Compact size suitable for wall mounting
• Internal mounting bosses for easy component installation
• Good chemical resistance against many acids, alkalis, and oils

Technical details

• External dimensions: 160 mm length, 75 mm width, 56.5 mm height
• Material: Polyester
• Colour: Silver-grey (RAL 7001)
• Lid type: Solid
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Operating temperature range: -40 °C to +100 °C
• Flammability rating: UL 94 V-0
• Impact resistance: IK08
• Protection class: IP65

Our verdict

A reliable and versatile enclosure for demanding environments, offering excellent protection and easy installation.
