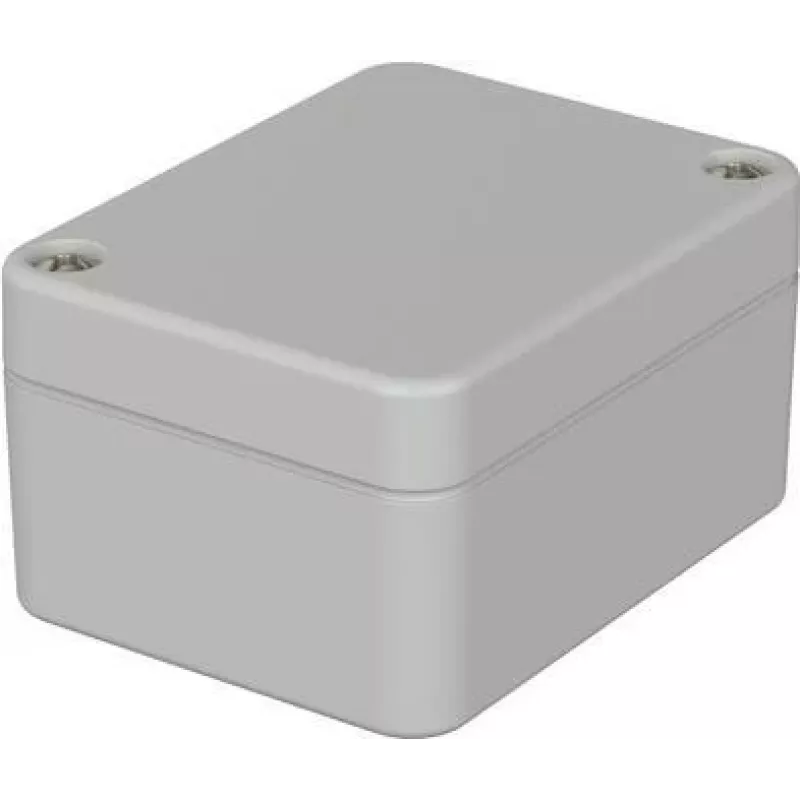

Bopla EUROMAS T 206 yleiskotelo, vaaleanharmaa, 65 x 50 x 35 mm, ABS, IP65

When electronics need protection in harsh environments, a robust housing is essential. The Bopla EUROMAS T 206 universal enclosure provides a secure, IP65-rated shell for your components, shielding them from dust and water jets. Its light grey ABS body offers a clean, professional look suitable for a wide range of applications.

Who is it for

This enclosure is ideal for engineers, technicians, and hobbyists building custom electronic devices, control units, or sensor housings that require reliable protection in industrial or outdoor settings.

Main features

• IP65 protection against dust and water jets
• Made from durable ABS plastic, light grey (RAL 7035)
• External dimensions: 65 mm length, 50 mm width, 35 mm height
• Recessed lid design suitable for membrane keypads
• Four polyamide screws for secure lid fastening
• Integrated screw channels for wall mounting
• Internal mounting bosses for PCBs
• Temperature range: -40°C to +80°C
• Impact resistance: IK07
• Flammability rating: UL 94 HB
• Polyurethane gasket included
• RoHS compliant and halogen-free

Specifications

• Series: EUROMAS
• Type: Universal enclosure
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 65 x 50 x 35 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 HB
• Gasket material: Polyurethane (PUR)
• Lid fastening: 4 polyamide screws
• Mounting: Wall mounting via screw channels, internal bosses
• Temperature range: -40°C to +80°C
• RoHS compliance: Yes
• Halogen-free: Yes

Tips

For outdoor use, ensure the enclosure is mounted with the lid facing downwards or shielded from direct sunlight to prolong the life of the ABS material. When installing a membrane keypad, the recessed lid provides a flat surface for adhesion.
